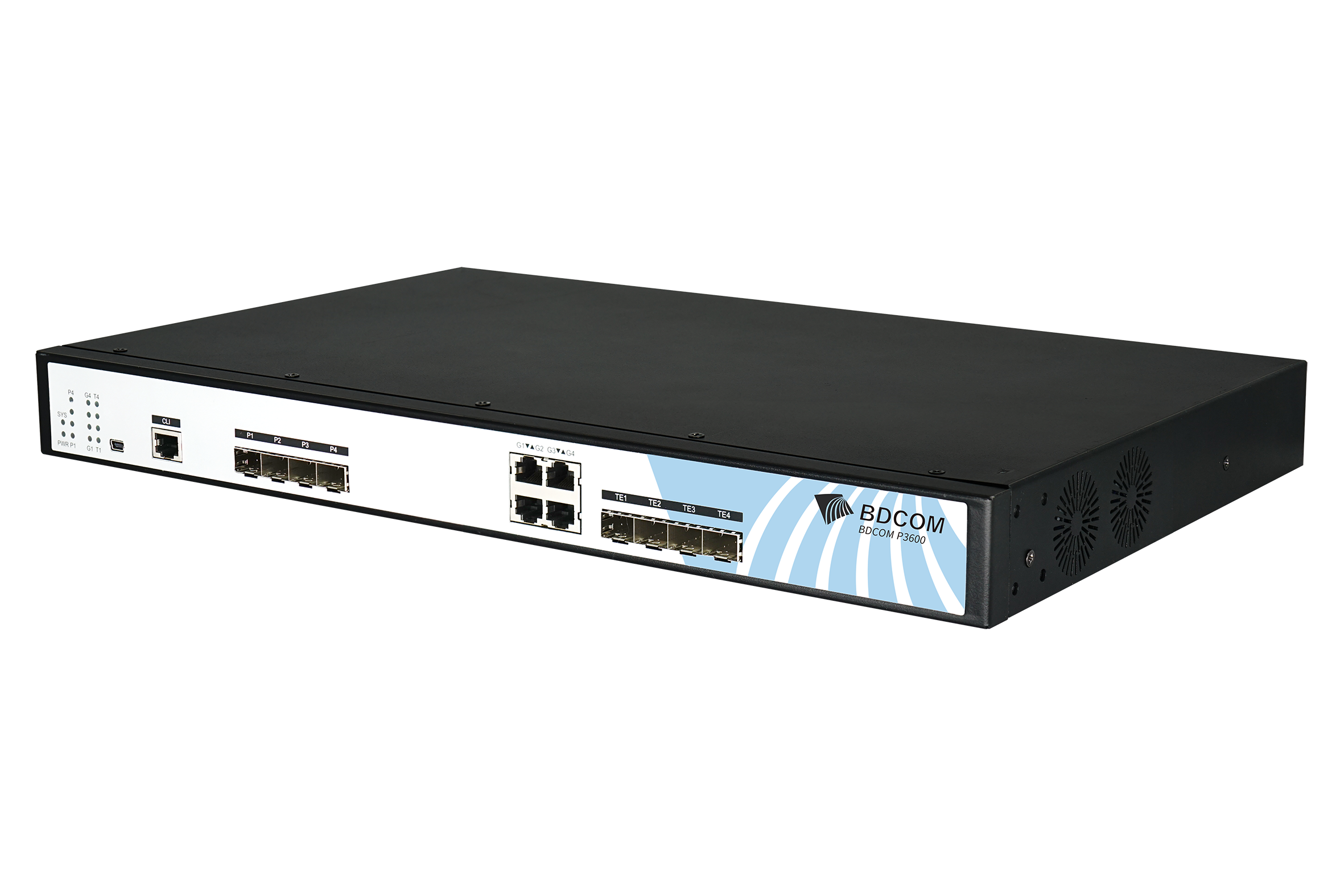

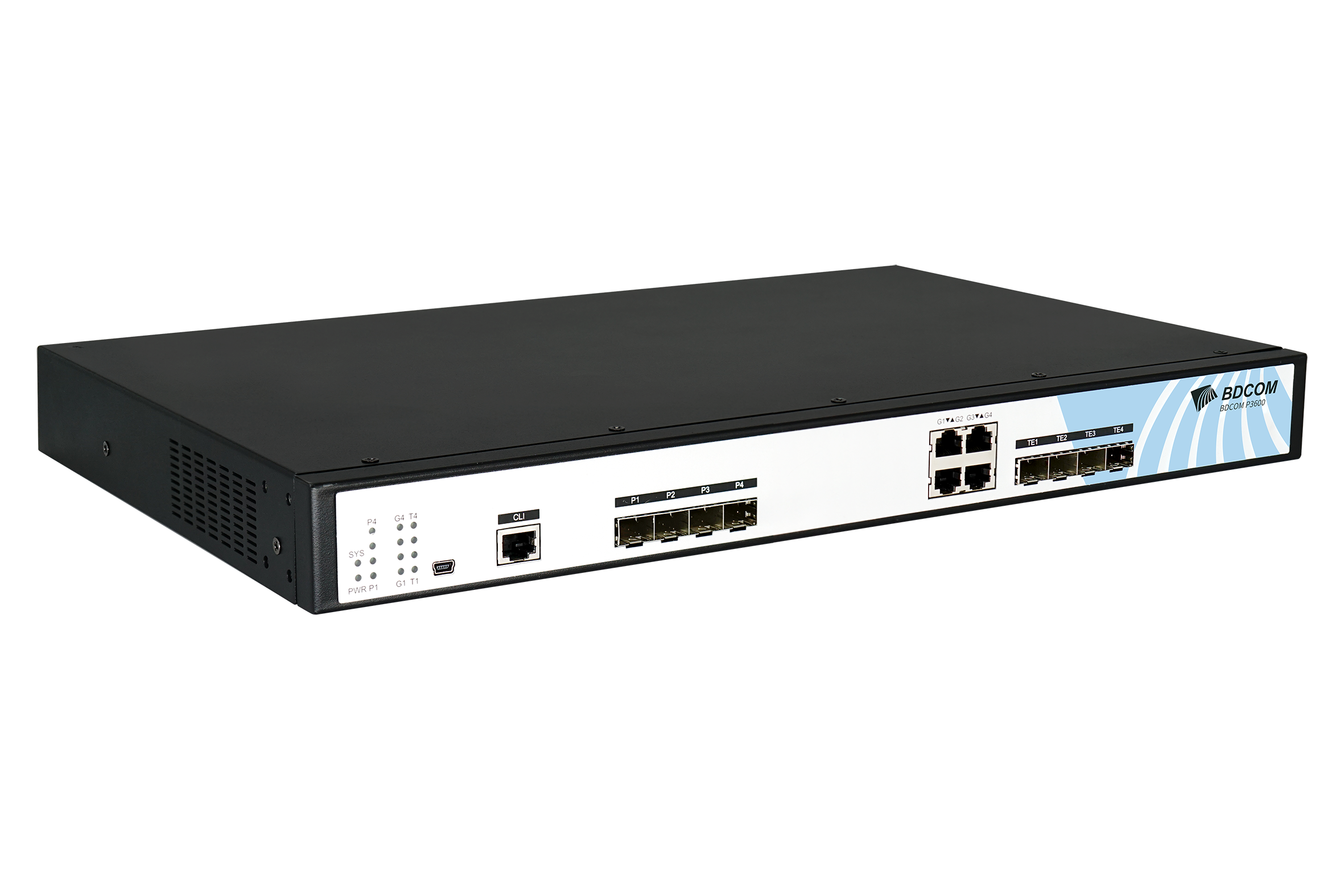

BDCOM P3600 Series P3600-04

4-port EPON OLT(1 CONSOLE,4 EPON port(excluding OLT SFP module),4 GE TX ports,4 10GE SFP+ ports;single AC100~240V power supply,19-inch rack-mounted installation)


Specification

Product Characteristics

BDCOM P3600 Series has following advantages:

EPON: BDCOM P3600 Series complies with IEEE802.3ah and PRC Community Industry Standard (YD/ T 1475-2006), and China Telecom EPON Technical Requirement CTC2.1/3.0.

System capacity: P3600 Series supports 4/8/16 EPON systems.

Uplink port: P3600 Series are all equipped with 4 GE TX ports, 4/6 10GE uplink ports. Among them, P3600-08E/16E features 4 Gigabit SFP ports.

Dimension: 1U, less than 300mm (Depth).

Environmental protection: low power consumption and low operating cost.

Layer-3 function: supports layer-3 routing function.

Bus optical fiber protection: P3600 Series supports automatic link protection when trouble occurs in the optical fiber.

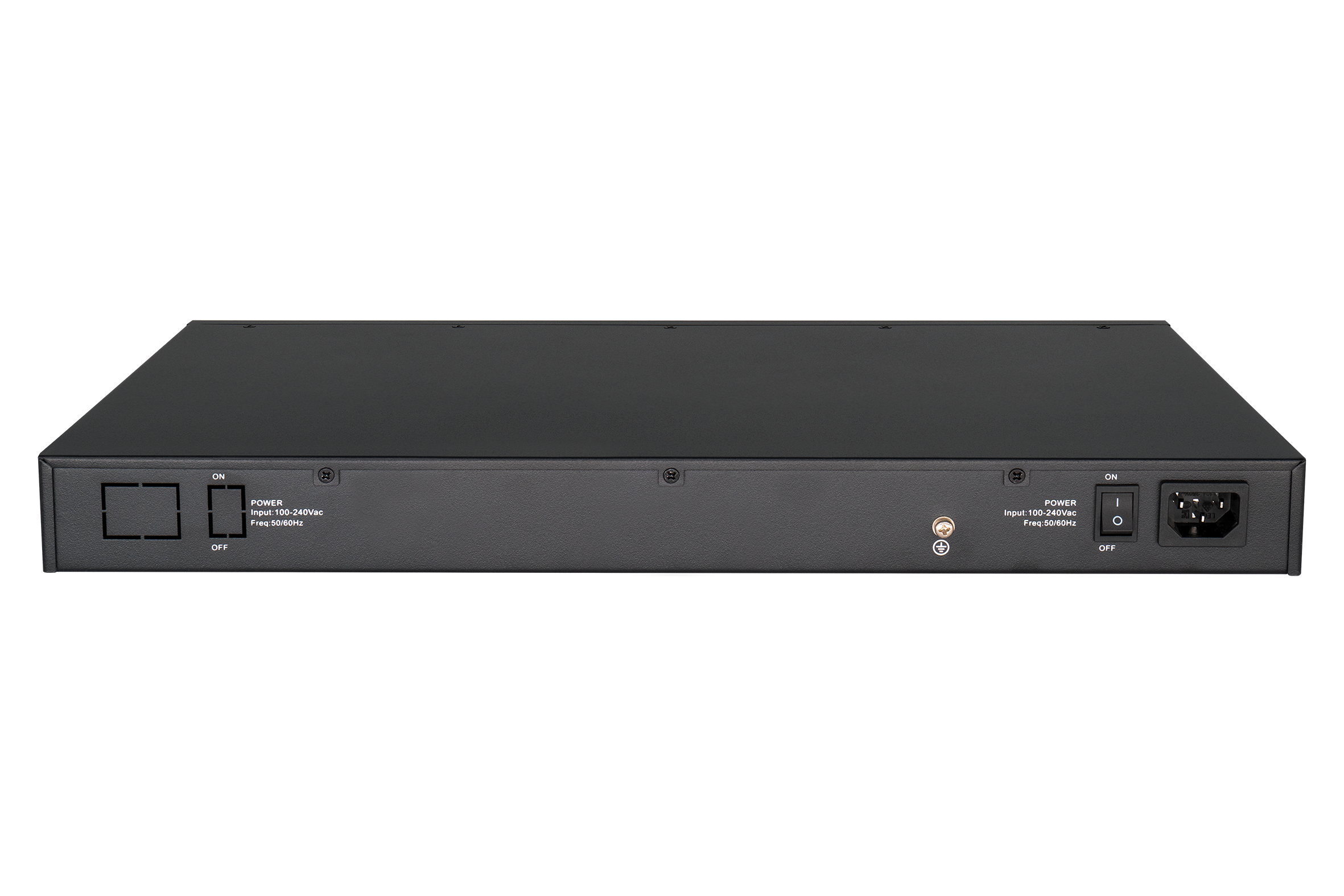

Power characteristics: supports dual power supply. The power supply of P3600-08E/16E supports modularized design, hot-swap and EMC-3 standard. It well adapts to the environment.
