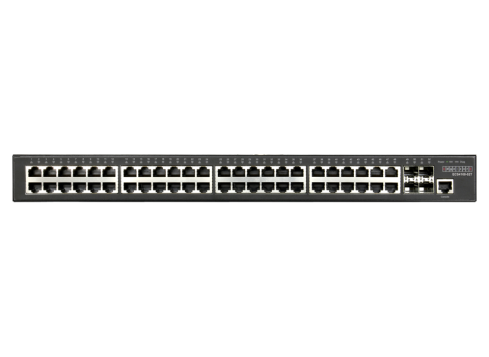

Edge-Core ECS4100 Series ECS4100-52T
L2+/L3 LITE GIGABIT ETHERNET ACCESS SWITCH. The Edgecore ECS4100-52T switch is a Gigabit Ethernet access switch with four 1G uplink ports. The switch is ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) to provide home users with triple-play services with up to a Gigabit of bandwidth.
Specification
FEATURES
- Performance and Scalability with 104 Gbps switching capacity
- Continuous Availability – IEEE802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol and IEEE 802.3ad Link Aggregation Control Protocol (LACP).
- Comprehensive QoS – Traffic is prioritized according to 802.1p and DSCP, Weighted Round Robin (WRR) and strict priority ensure differential prioritization of packet flows and avoid congestion of ingress and egress queues.
- Enhanced Security with Port security limits, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, Access Control Lists (ACLs), DAI (Dynamic ARP Inspection), Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) providing secure network management.
- Simple Management with an idustry-standard command-line interface (CLI)
- Green Ethernet
- Cloud Management – ecCLOUD
Compatible Transceivers:
1000BASE SX/ LX/ EX/ ZX,
10GBASE-T RJ45
