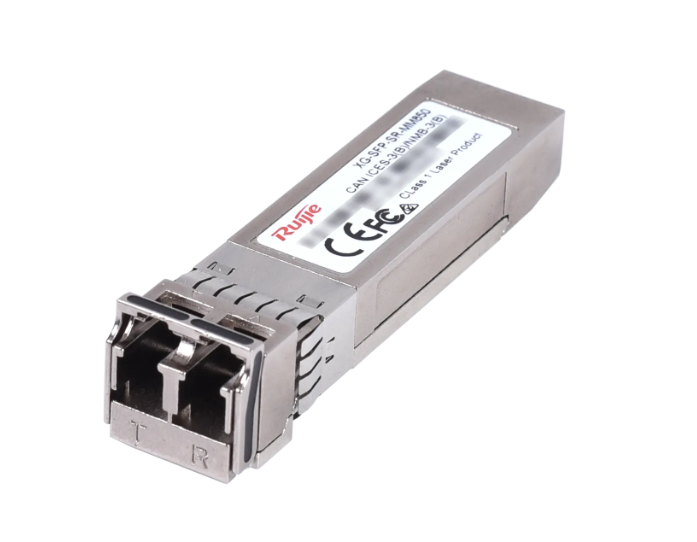

Ruijie XG-SFP-SR-MM850

Features

• Key Specifications
• • Data Rate: 10.3125 Gbps (10GBASE-SR standard)
• • Fiber Type: Multi-Mode Fiber (MMF)
• • Connector Type: Duplex LC with an Ultra Physical Contact (UPC) face finish
• • Target Reach:
• • Up to 300 meters (984 feet) over laser-optimized OM3 MMF
• • Up to 400 meters (1,312 feet) over high-bandwidth OM4 MMF
• • Note: Limited to 33 meters over legacy OM1 (62.5/125µm) cabling
• • Optical Wavelength: 850 nm (840 nm to 860 nm range)
• • Form Factor: SFP+ (Hot-pluggable metal housing)
• • Power Consumption: Low-power design at ≤ 1.0 W (runs cooler than long-reach models)
• • Diagnostic Capabilities: Full support for DDM / DOM (Digital Diagnostic Monitoring) for tracking temperature, voltage, and transmission power variations in real time.
• Transmitter & Receiver Optical Parameters
• • Transmitter Type: VCSEL (Vertical-Cavity Surface-Emitting Laser)
• • Receiver Type: PIN photodiode
• • Maximum Transmit Power (AVG): –1.0 dBm
• • Minimum Transmit Power (AVG): –7.3 dBm
• • Receiver Sensitivity (OMA): < –11.1 dBm
• • Overload Optical Power (AVG): –1.0 dBm
• • Minimum Extinction Ratio: ≥ 3.0 dB
• • Bit Error Ratio (BER): 1.00E-12
• Physical & Environmental
• • Dimensions: 56.5 mm x 13.5 mm x 8.5 mm
• • Operating Temperature: Standard commercial operating range of 0°C to 70°C (32°F to 158°F)
• • Standards Compliance: IEEE 802.3ae (10GBASE-SR), SFF-8431, SFF-8472, SFP+ MSA, RoHS, and Class 1 Laser Safety standards.
• Application & Deployment
• Because it handles data routing via an 850nm VCSEL laser over multi-mode patch leads, it represents the most cost-effective 10G link layout for intra-rack server setups or same-room data center patching where single-mode fiber is not required. It does not suffer from laser saturation risks, meaning no inline attenuation is required regardless of how short the patch fiber run is.
