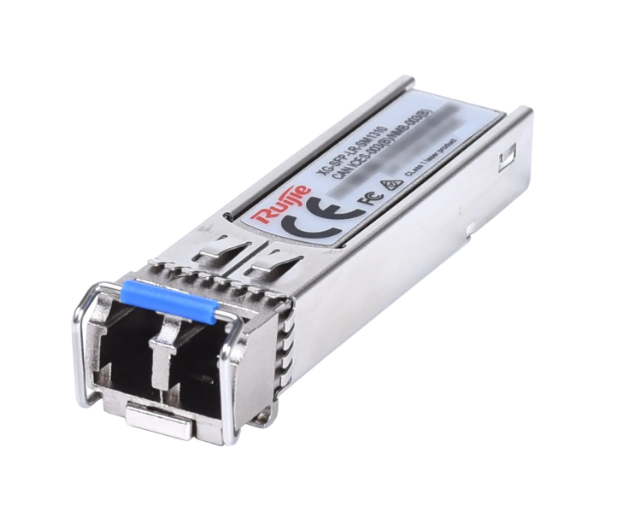

Ruijie XG-SFP-LR-SM1310

Features

• Key Specifications
• • Data Rate: 10.3125 Gbps (10GBASE-LR standard)
• • Fiber Type: Single-Mode Fiber (SMF)
• • Connector Type: Duplex LC with an Ultra Physical Contact (UPC) face finish
• • Target Reach: Up to 10 km (32,808 feet) over standard SMF
• • Optical Wavelength: 1310 nm nominal range (1260 nm to 1360 nm)
• • Form Factor: SFP+ (Hot-pluggable metal housing)
• • Power Consumption: Energy-efficient design at ≤ 1.5 W
• • Diagnostic Capabilities: Full support for DDM / DOM (Digital Diagnostic Monitoring) to monitor temperature, voltage, laser bias current, and real-time transmit/receive optical power.
• Transmitter & Receiver Optical Parameters
• • Transmitter Type: DFB (Distributed Feedback) Laser
• • Receiver Type: PIN photodiode
• • Maximum Transmit Power (AVG): 0.5 dBm
• • Minimum Transmit Power (AVG): –8.2 dBm
• • Receiver Sensitivity (OMA): < –12.6 dBm (Minimum intensity detection down to –14.5 dBm)
• • Overload Optical Power (AVG): 0.5 dBm
• • Minimum Extinction Ratio: ≥ 3.5 dB
• • Bit Error Ratio (BER): 1.00E-12
• Physical & Environmental
• • Dimensions: 56.5 mm x 13.5 mm x 8.5 mm
• • Operating Temperature: Standard commercial operating range of 0°C to 70°C (32°F to 158°F)
• • Standards Compliance: IEEE 802.3ae, SFF-8431, SFP+ MSA, RoHS, and Class 1 Laser Safety standards.
• Application & Deployment
• Unlike the Extended Reach (ER) module, this 10km LR module does not require optical attenuators for short patch testing or close-range fiber runs, as its receiver overload ceiling matches its maximum transmission power (0.5 dBm). It natively integrates into any Ruijie Enterprise Switch SFP+ Uplink Slot.
