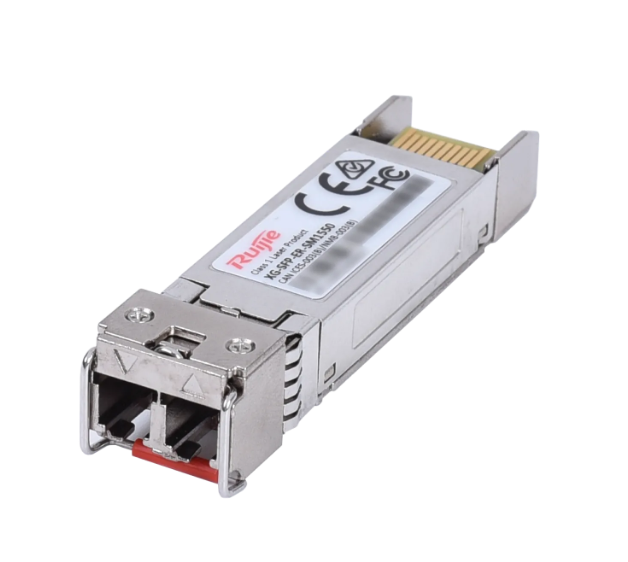

Ruijie XG-SFP-ER-SM1550

Features

• Key Specifications
• • Data Rate: 10.3125 Gbps (10GBASE-ER standard)
• • Fiber Type: Single-Mode Fiber (SMF)
• • Connector Type: Duplex LC with Ultra Physical Contact (UPC) face finish
• • Target Reach: Up to 40 km (approx. 24.8 miles) over standard SMF
• • Optical Wavelength: 1550 nm
• • Form Factor: SFP+
• • Transmitter Type: 1550nm EML / DFB Laser
• • Receiver Type: PIN photodiode
• • Power Consumption: Low-power design at ≤ 1.5 W (Hot-pluggable)
• • Diagnostic Capabilities: Full support for DDM / DOM (Digital Diagnostic Monitoring) for tracking voltage, temperature, and transceiver transmission parameters in real time.
• Transmitter & Receiver Optical Parameters
• • Maximum Transmit Power (TX Max): 4 dBm
• • Minimum Transmit Power (TX Min): –4.7 dBm
• • Receiver Sensitivity: < –15.5 dBm
• • Bit Error Ratio (BER): 1.00E-12
• Standards & Compliance
• The transceiver complies with industry networking parameters including IEEE 802.3ae (10GBASE-ER), SFF-8431, SFP+ MSA, Class 1 Laser Safety, and RoHS environmental guidelines.
