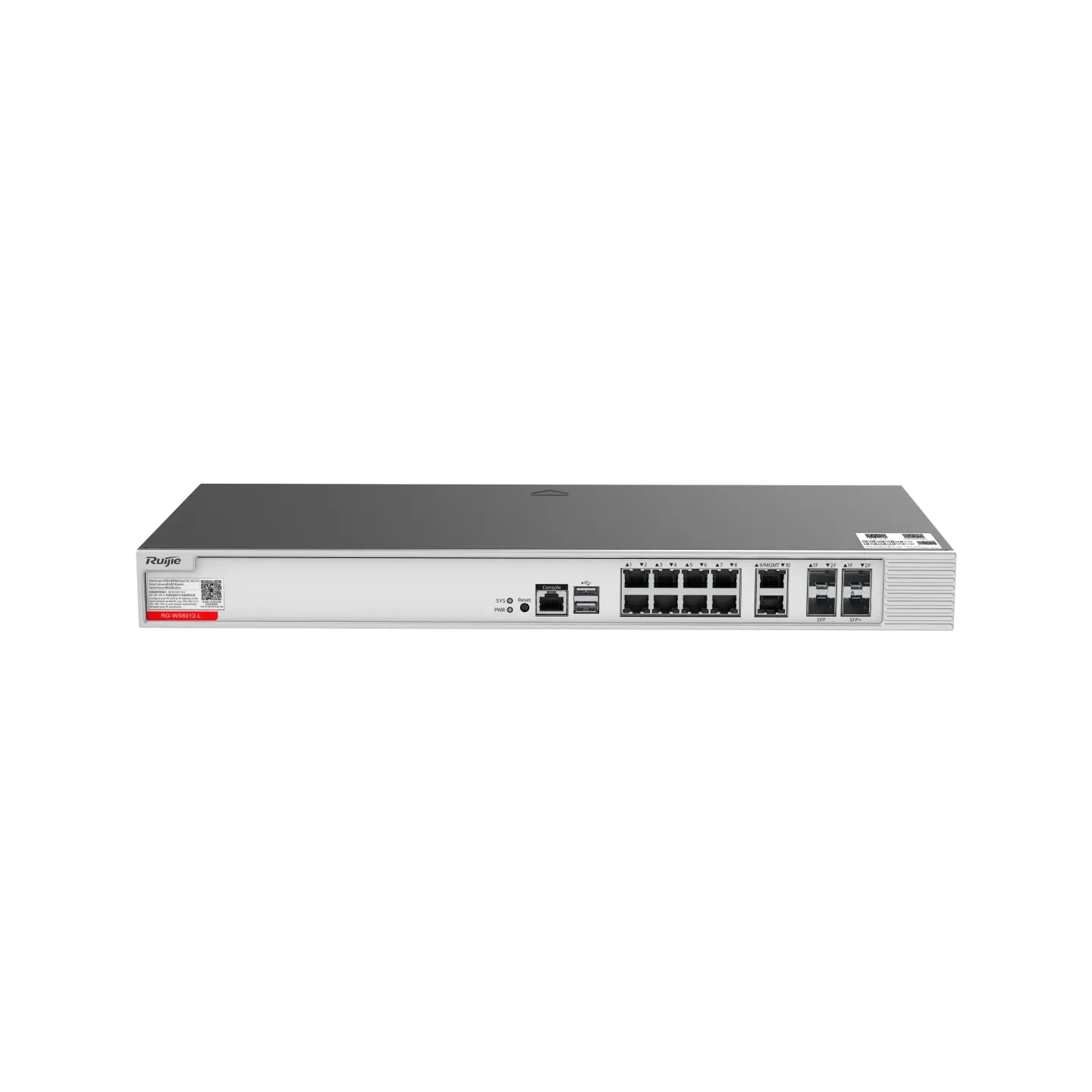

Ruijie RG-WS6012-L
Features
- • Bottleneck-Free Local Forwarding: Supports both centralized data routing and intelligent local forwarding. It allows high-bandwidth traffic to bypass the controller completely and hit the local wired switches directly, preventing the AC from becoming a data choke point.
- • AC Virtualization & Hot Standby: Up to four controller units can be virtualized together into a single logical cluster. This grants administrators seamless multi-AC hot standby, high availability, and centralized multi-site control.
- • Intelligent RF & Load Balancing: Works alongside Ruijie's network algorithms to balance clients across APs based on traffic density, user numbers, and specific frequency bands (2.4 GHz vs. 5 GHz).
- • Carrier-Grade Security: Enforces comprehensive security parameters including standard WPA3, IEEE 802.1X, Portal Web authentication, localized Access Control Lists (ACLs), and embedded CPU Protection Policies (CPP).
- • Unified Management Ecosystem: Integrates natively with the Ruijie Cloud platform for lifetime-free remote configuration, automated zero-touch AP provisioning, over-the-air firmware updates, and intuitive app-based troubleshooting.
Specifications
- • Form Factor
- Standard 1 RU rack-mountable chassis (440 mm x 200 mm x 43.6 mm), weighing 2.7 kg.
- • Power Supply
- Internal 40W power module running on 100V–240V AC, with a highly efficient 30W maximum power consumption.
- • Forwarding Capacity
- High-speed 10 Gbps processing throughput.
- • Maximum Scalability
- Up to 448 generic APs (ceiling-mount/outdoor models) OR up to 896 wall-plate APs (since wall-plate hardware utilizes only 0.5 licenses).
- • Default Out of the Box
- Includes licenses for 32 APs.
- • Client & Network Limits
- Supports up to 4,480 concurrent wireless stations (STAs), 4,096 concurrent VLANs, and 32,768 MAC entries.
- • Fixed Interfaces & Ports
- • Manageable Access Points
