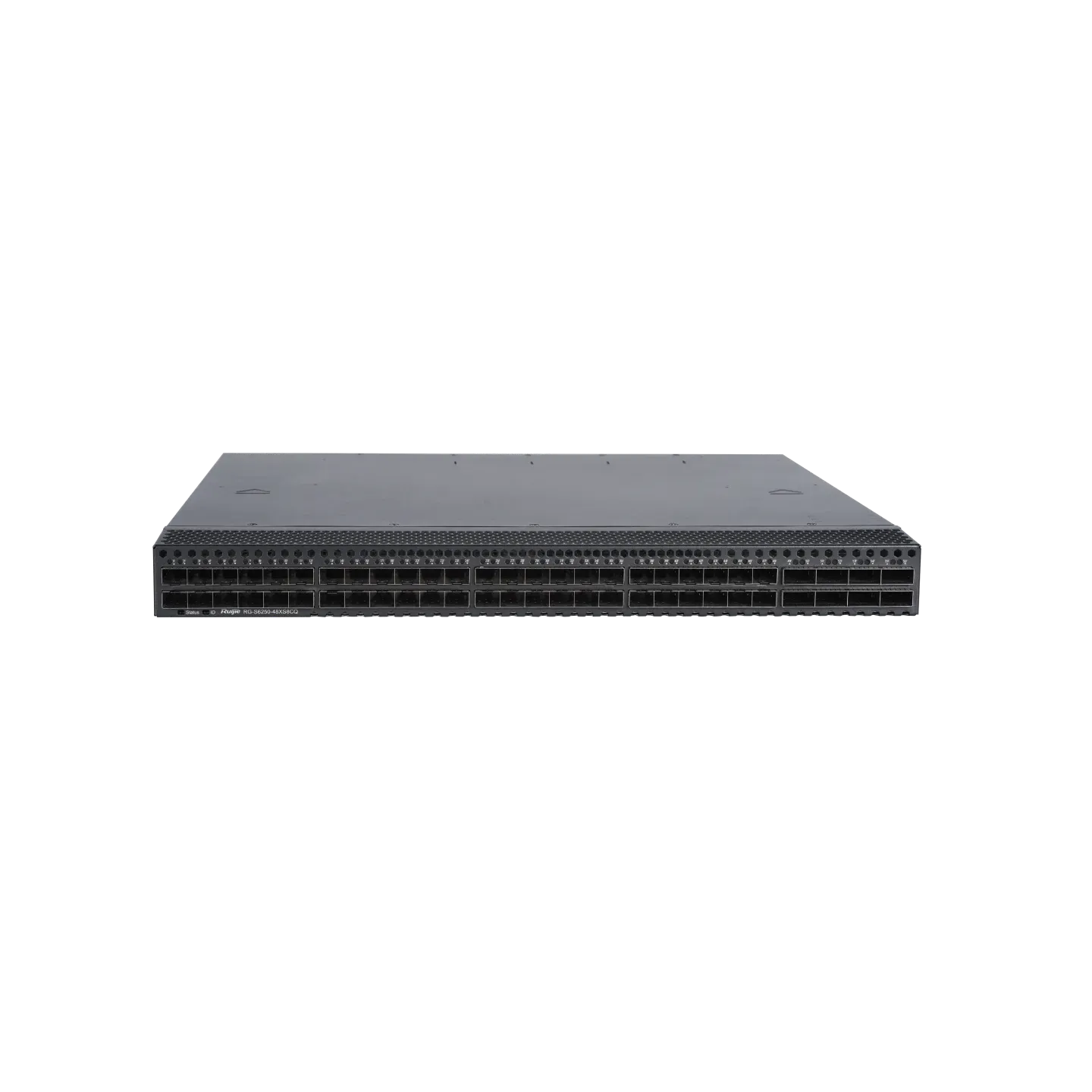

Ruijie RG-S6510-48VS8CQ (V2.0)
Enterprise-grade, high-density 25GE/100GE Layer 3 data center access switch. Engineered for next-generation Spine-Leaf cloud architectures and massive East-West traffic volumes, this V2.0 hardware revision delivers ultra-high bandwidth via 48 x 25G SFP28 downlink ports and 8 x 100G QSFP28 uplink ports.
Features
- • Lossless Ethernet (RDMA over Converged Ethernet): Leverages Priority-based Flow Control (PFC) and Explicit Congestion Notification (ECN) to bypass CPU overhead, resulting in zero packet loss and sub-microsecond latency during high-volume server storage communication.
- • Data Center Overlays & Virtualization: Full native support for VXLAN hardware-level tunneling and EVPN (Ethernet VPN) control plane automation. This removes the reliance on underlying multicast architectures, easing the scaling of large Layer 2 network fabrics across routed Layer 3 domains.
- • High-Availability Clustering: Employs Multi-Chassis Link Aggregation (M-LAG) and Virtual Switch Unit (VSU) technologies. This simplifies network topology by virtualizing multiple physical switches into a single logical entity, ensuring link failover without loop vulnerabilities.
- • Advanced Monitoring (Telemetry): Implements gRPC-based Telemetry, sFlow, and SPAN to push streaming network intelligence at sub-second levels rather than relying on heavy legacy polling cycles.
- • Robust Security Controls: Integrates strict Access Control Lists (ACLs), hardware CPU Protection Policies (CPP), and anti-DDoS architectures to protect the internal control engine from traffic flood attacks.
Specifications
- • Power Draw
- Maximum consumption ≤ 300W (Typical: 172W, Static: 98W).
- • Form Factor
- Standard 19-inch 1 RU rack-mount chassis (442 mm × 387 mm × 44 mm).
- • Uplink Ports
- 8 x 40G/100G QSFP28 optical ports (supports 40GE/100GE auto-negotiation and 4x25G or 4x10G breakout configurations).
- • Downlink Ports
- 48 x 10G/25G SFP28 optical ports (supports 10Gbps or 25Gbps line-rate transmission).
- • Forwarding Rate
- 2,000 Mpps.
- • Management Layout
- 1 x RJ45 console port, 1 x dedicated Out-of-Band (OOB) management port, and 1 x USB 2.0 port.
- • Redundancy & Power
- 2 x power module slots (1+1 hot-swappable AC or DC redundancy via RG-PA550I-F modules) and 4 x fan slots (3+1 redundant hot-swappable fans supporting front-to-rear or rear-to-front airflow).
- • Switching Capacity
- 4.0 Tbps line-rate non-blocking fabric.
- • Hardware Table Capacities
- 160k MAC address entries, 100k ARP entries, 128k IPv4 routes, and 64k IPv6 routes.
