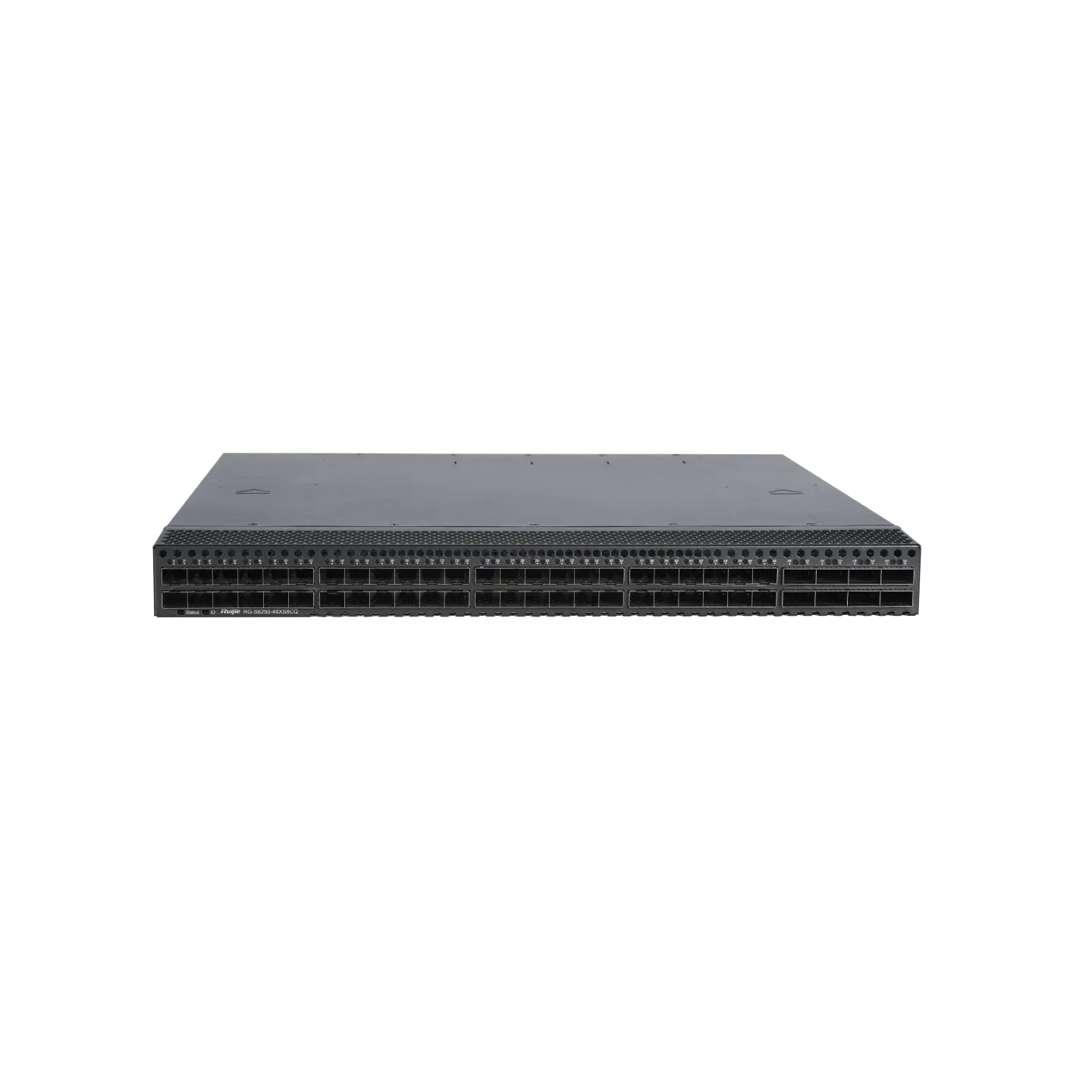

Ruijie RG-S6250-48XS8CQ
Features
- • Lossless RDMA Ethernet: Fully implements Priority-based Flow Control (PFC) and Explicit Congestion Notification (ECN) to guarantee zero packet loss and ultra-low latency in high-throughput RDMA communication.
- • Advanced Virtualization & Overlay: Supports VXLAN tunneling technology and EVPN for unlimited data transmission and scalable resource allocation across large-scale Layer 2 networks.
- • High Availability Stacking: Features Cross-Device Link Aggregation (M-LAG) and Virtual Switch Unit (VSU 2.0) technology to virtualize multiple physical switches into one logical unit, eliminating loops and reducing topology nodes.
- • Automated O&M (Telemetry): Utilizes gRPC-based Telemetry, sFlow, and SPAN to proactively push real-time, sub-second-level monitoring data, streamlining operations and network visibility.
Specifications
- • Uplink Ports
- 8 x 40G/100G QSFP28 optical ports (supports 40GE/100GE auto-negotiation and 4x10G breakout mode).
- • Downlink Ports
- 48 x 1G/10G SFP+ optical ports (compatible with 1000BASE-X and DAC copper cables).
- • Forwarding Rate
- 1,920 Mpps.
- • Management Ports
- 1 x RJ45 console port, 1 x dedicated RJ45 out-of-band MGMT port, and 1 x USB 2.0 port.
- • Power Consumption
- Maximum consumption < 300W (Typical: 165W, Static: 98W).
- • Redundancy & Power
- 2 x power module slots (supporting 1+1 hot-swappable AC or DC redundancy) and 4 x fan module slots (3+1 redundancy with front-to-rear intelligent airflow).
- • Switching Capacity
- 2.56 Tbps line-rate non-blocking architecture.
- • Dimensions & Weight
- 442 mm × 387 mm × 44 mm (Standard 1 RU space); weighs 8.2 kg fully populated.
