Networking

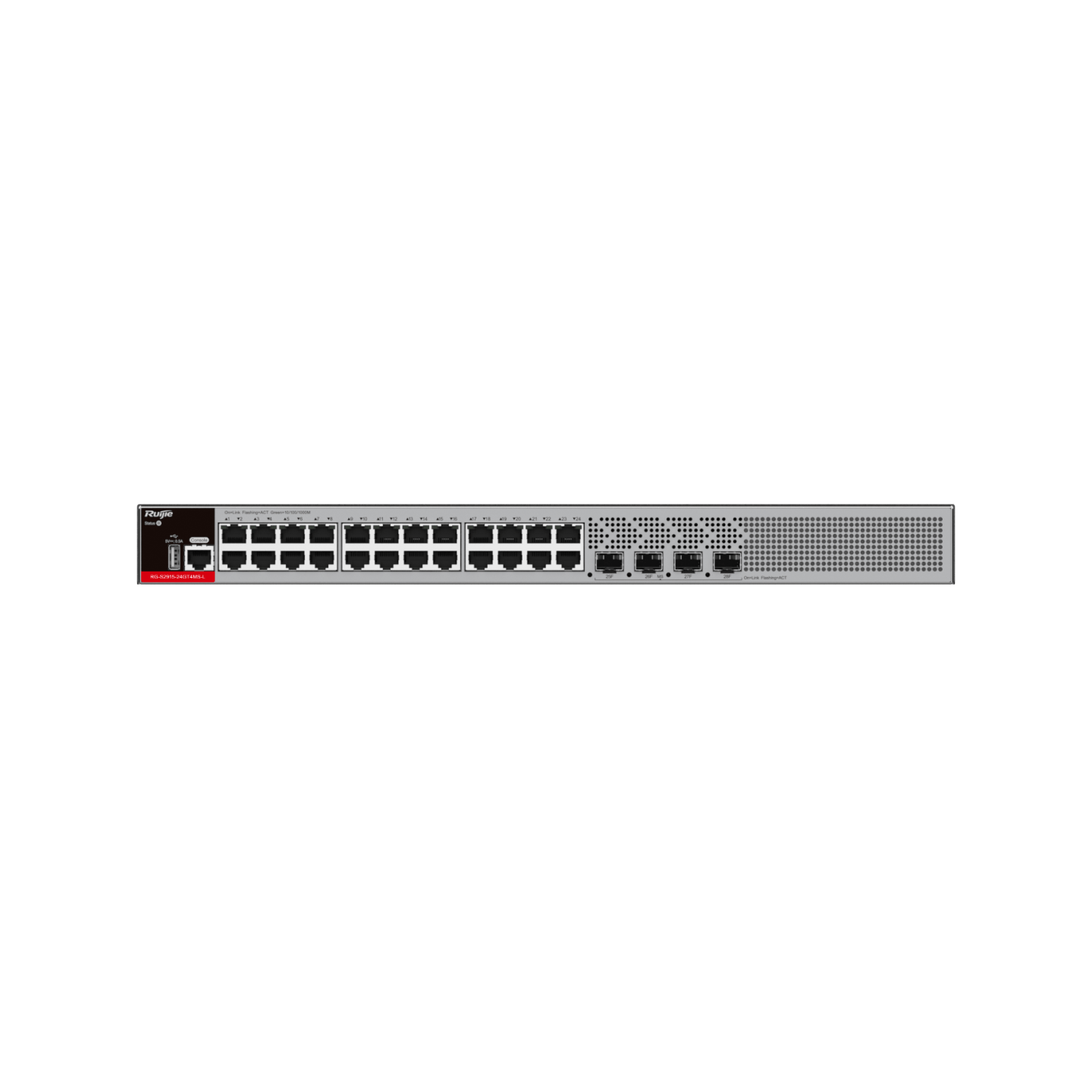

Ruijie RG-S2915-24GT4MS-P-L
24 × 10/100/1000Base-T copper ports with auto-negotiation, 4 × 1GE/2.5GE SFP ports, fixed single AC power supply, Support PoE/PoE+ power supply. Maximum PoE output power is 370W
Features
- • Cloud & Web Management: Integrates directly with Ruijie Cloud for zero-touch deployment (SON), simplified remote network configuration, and real-time monitoring. Local options include eWeb, CLI, and SNMP.
- • PoE Management: Supports perpetual PoE (uninterrupted power delivery to devices during switch reboots) and flexible power scheduling.
- • Advanced Security: Equipped with CPP (CPU Protection Policy) and NFPP (Network Foundation Protection Policy) to protect the control plane against malicious DDoS attacks, broadcast storms, and CPU congestion.
- • Layer 2+ Features: Supports up to 64 static routing entries, ARP tables (512 entries), Access Control Lists (ACLs), and 4,094 VLAN IDs.
- • Loop Prevention & Redundancy: Supports STP/RSTP/MSTP, Rapid Link Detection Protocol (RLDP), and Ethernet Ring Protection Switching (ERPS) for ultra-fast link recovery.
Specifications
- • PoE Budget
- 370W total (Maximum power consumption under full PoE load is 431W)
- • Form Factor
- Standard 19-inch 1 RU rack-mount.
- • Uplink Ports
- 4 x 1GE/2.5GE SFP optical ports
- • Downlink Ports
- 24 x 10/100/1000Base-T adaptive RJ45 ports (Ports 1 to 24 support IEEE 802.3af/at PoE/PoE+, up to 30W per port)
- • Cooling & Noise
- 2 fixed fans with intelligent speed adjustment (Max noise level ≤ 45 dB)
- • Forwarding Rate
- 51 Mpps
- • Management Ports
- 1 x RJ45 console port, 1 x USB port
- • Surge Protection
- 10 kV on all telecom ports.
- • MAC Address Table
- 16,000 entries
- • Processor & Memory
- 1.2 GHz single-core CPU, 512 MB DDR4 RAM, 64 MB Flash storage, 512 KB packet buffer
- • Switching Capacity
- 68 Gbps
