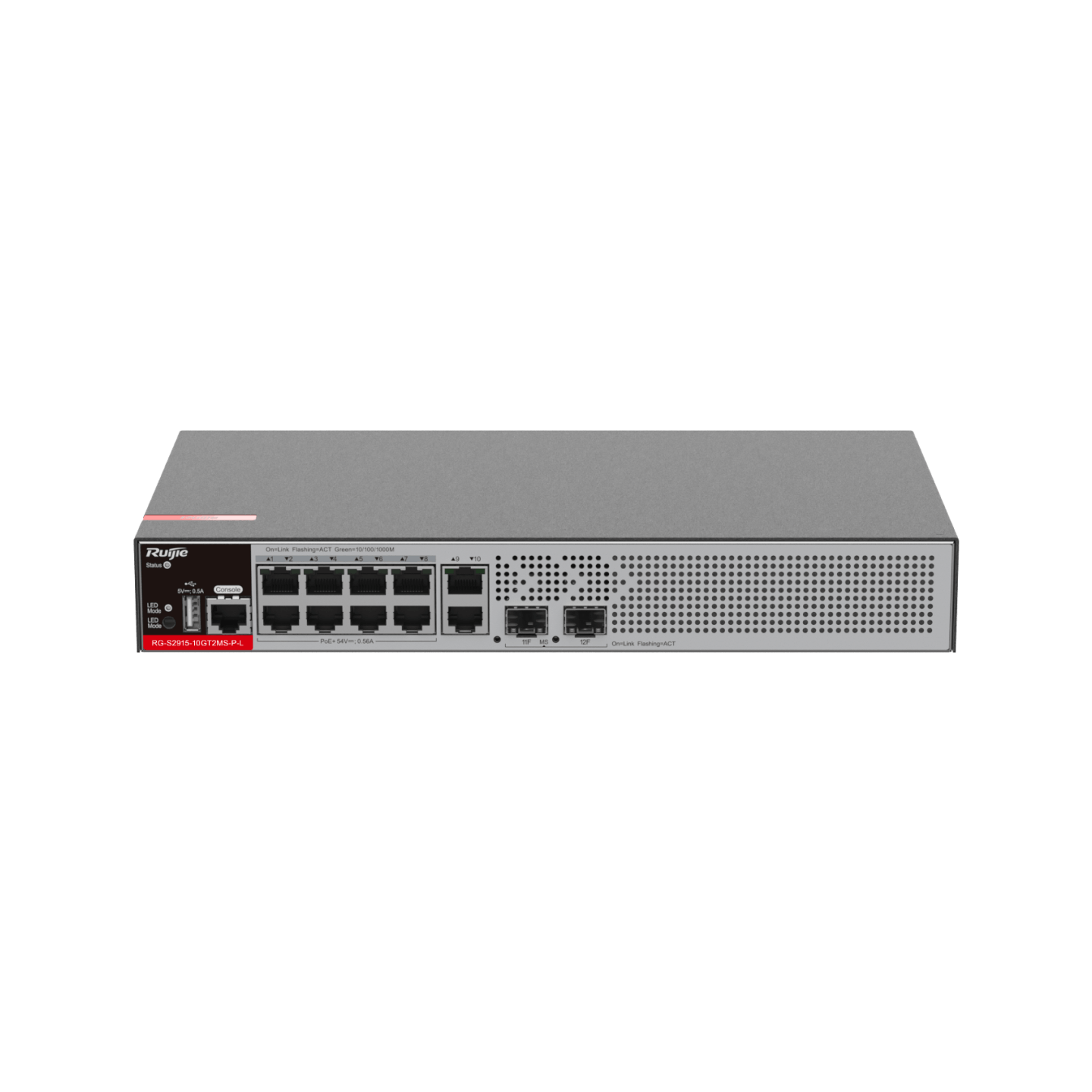

Ruijie RG-S2915-10GT2MS-P-L
Features
- • Full integration with Ruijie Cloud for remote configuration, monitoring, and zero-touch provisioning.
- • Network Security & Reliability: Includes CPU Protection Policy (CPP) to safeguard against control-plane congestion and Rapid Link Detection Protocol (RLDP) to detect and prevent Ethernet loops.
- • Layer 2+ Capabilities: Supports static routing entries, ARP tables (512 entries), and Access Control Lists (ACLs).
Specifications
- • Uplink Ports
- 2 x 1GE/2.5GE SFP optical ports
- • Downlink Ports
- 10 x 10/100/1000Base-T adaptive RJ45 (ports 1 to 8 support IEEE 802.3af/at PoE/PoE+, up to 30W per port)
- • Forwarding Rate
- 22.5 Mpps
- • Management Ports
- 1 x RJ45 console port, 1 x USB port
- • MAC Address Table
- 16,000 entries
- • Power & Protection
- Fixed AC power module, 125W PoE budget (Mode A delivery), 10 kV surge protection, and 1 fixed fan.
- • Processor & Memory
- 1.2 GHz single-core CPU, 512 MB DDR4 RAM, 64 MB Flash storage, 512 KB buffer
- • Switching Capacity
- 30 Gbps
