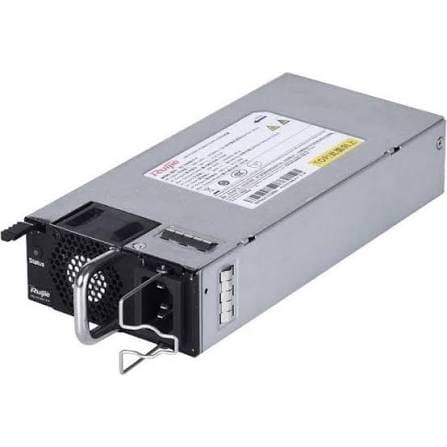

Ruijie RG-PA600I-P-F
Features
- • N+1 Power Redundancy: Supports seamless parallel current sharing. When dual modules are placed inside a switch, they fully share the load; if your active network PoE consumption stays below 370W, they act as an instantaneous 1+1 hardware backup.
- • Online Hot Swapping: Equipped with modular guide rails allowing administrators to swap, remove, or install modules while the underlying network hardware remains fully online and operating.
- • Silicon Protections & Conformal Coating: Circuitry is layered with a premium conformal coating to ward off circuit tracking, moisture damage, dust buildup, and electrical leakage. Safety safeguards include overvoltage (OVP), undervoltage (UVP), overcurrent (OCP), and short-circuit protection (SCP).
- • Airflow Management: Relies on a built-in variable fan configured for a rear-to-front airflow pattern (pulling cold air from inside the switch connector backplane and venting hot air out the front mesh panel).
- • I²C Operating Telemetry: Includes an I²C system bus interface to continually push status logs, health alerts, and internal temperatures to the switch operating system. It features an integrated Output Status LED that instantly turns off if a power fault trips.
Specifications
- • Weight
- Approximately 0.9 kg (1.98 lbs).
- • Output Voltage
- Stable 56 V DC output.
- • RG-S5760-X Series
- RG-S5760C-48GT4XS-HP-X.
- • Standard AC Input
- 100 V AC to 240 V AC rated (50/60 Hz; tolerance window of 90 V AC to 290 V AC).
- • Dedicated PoE Budget
- 370 W typical allocation on standalone chassis (varies up to 600W depending on the host switch's internal distribution).
- • Maximum Output Power
- 600 W.
- • Maximum Input Current
- 8 A via AC input / 4 A via HVDC input.
- • Dimensions (W x D x H)
- 196 mm x 90 mm x 40 mm (1 RU form factor).
- • Maximum Output Current
- 10.72 A.
- • Enterprise Custom Lines
- RG-CS83-24GT4XS-PD, RG-CS83-48GT4XS-PD, RG-CS85-48GT4XS-HPD, RG-CS86-24XMG4XS4VS-UPD, RG-CS86-48MG4VS2QXS-UPD.
- • Ruijie RG-S5310-E Series
- RG-S5310-24GT4XS-P-E, RG-S5310-48GT4XS-P-E.
- • Input Voltage Compatibility
- • High-Voltage DC (HVDC) Input
- 240 V DC rated (tolerance window of 192 V DC to 290 V DC).
- • RG-S6100 Series Multi-Gigabit
- RG-S6110-48MG4VS2QXS-UP, RG-S6120-24XMG4XS4VS-UP-H, RG-S6120-48XMG4VS2QXS-UP-H.
- This module is engineered for Ruijie’s mid-to-high density PoE access switches, including
