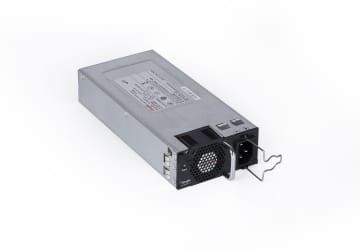

Ruijie RG-PA1600I-F

enterprise-grade, high-capacity 1600W AC/HVDC hot-swappable power supply unit designed for Ruijie’s large-scale modular core chassis and high-density campus switches (such as the RG-CS88-08 series). It delivers a stable, high-current 12V DC output to power mission-critical backplanes and line cards.

Features

  • • N+N Hardware Redundancy: Supports intelligent active current sharing across parallel units. When matching modules are deployed together, they ensure complete hardware-level backup if a feed circuit or single power supply drops out.
  • • Seamless Hot Swapping: Built with backplane guide rails that allow users to pull or plug individual power modules online without dropping the host switch's power state or affecting active routing domains.
  • • Rear-to-Front Cooling Flow: Integrates an industrial, variable-speed fan assembly designed for a rear-to-front airflow path (pulling cooling air from the chassis backplane and discharging heat out of the module's exterior faceplate).
  • • Comprehensive Silicon Protection: Circuitry is layered with a premium conformal coating to guard internal components against moisture tracking, dust buildup, and electrical leakage. Features auto-tripping protections for overvoltage (OVP), undervoltage (UVP), overcurrent (OCP), and short-circuit faults (SCP).
  • • I²C Operating Telemetry: Leverages an internal I²C system bus link to transmit ongoing status flags, temperature readings, and warning anomalies back to the main switch engine. It features a physical status LED on the faceplate that changes color during operational faults.

Specifications

• Weight
Approximately 2.04 kg (4.50 lbs).
• Output Parameters
Regulated 12 V DC output voltage.
• Ruijie RG-CS88-08
Accommodates up to 4 pluggable slots supporting N+N power redundancy configs to eliminate down-time during power rail failures.
• Standard AC Input
100 V AC to 240 V AC rated (50/60 Hz; operating tolerance of 90 V AC to 264 V AC).
• Maximum Output Power
• Maximum Input Current
16 A.
• Dimensions (W x D x H)
327.5 mm × 101.5 mm × 40.7 mm.
• Input Voltage Compatibility
• High-Voltage DC (HVDC) Input
240 V DC rated input capacity.
This ultra-high-output power module is engineered to handle heavy traffic line-card arrays inside Ruijie's modular enterprise lines, most notably
