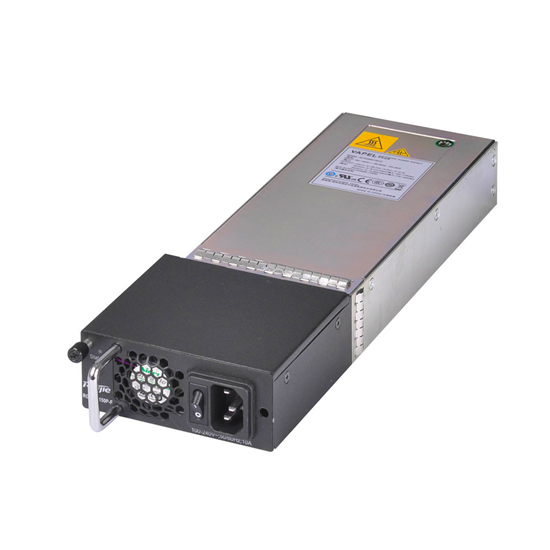

Ruijie RG-PA150IB-F
150W AC/HVDC hot-swappable power supply module engineered for select Ruijie Networks and Reyee enterprise switches
Features
- • 1+1 Power Redundancy: Supports current sharing when two modules are plugged in parallel, providing immediate, automatic backup to prevent system outages if one power source drops.
- • Hot-Swappable Capabilities: Allows administrators to replace or add a power module while the host device is powered on, eliminating down-time during service intervals.
- • Internal Diagnostics (I²C): Integrates an I²C communication pathway to continuously stream health diagnostics, power draw metrics, and hardware alerts to the switch's RGOS operating system.
- • Industrial Cooling Flow: Engineered with a rear-to-front airflow pattern (pulling air from the chassis core and exhausting it through the front panel) to complement standard server rack ventilation designs.
- • Hardware Safeguards: Circuitry is protected by a premium conformal coating to ward off moisture, electrical leakage, dust, and mold. Built-in safety logic includes Overvoltage (OVP), Undervoltage (UVP), Overcurrent (OCP), and Short-Circuit Protection (SCP).
Specifications
- • Weight
- Approximately 0.55 kg (1.21 lbs).
- • Output Parameters
- 12 V DC stable output voltage at up to 12.5 A maximum output current.
- • RG-S5310-E Series
- e.g., RG-S5310-48SFP4XS-E.
- • RG-S5760-X Series
- e.g., RG-S5760C-24GT8XS-X and RG-S5760C-48GT4XS-X.
- • Standard AC Input
- 100 V AC to 240 V AC (50/60 Hz rated; 90 V AC to 290 V AC operating tolerance).
- • Aggregation Routers
- RG-RSR30-XA-24
- • Input Voltage Range
- • Maximum Output Power
- 150 W.
- • Input Leakage Current
- ≤ 3.5 mA.
- • Maximum Input Current
- 3 A.
- • Dimensions (W x D x H)
- 196 mm x 50.5 mm x 40 mm.
- • RG-CS85 & RG-CS86 Series
- e.g., RG-CS85-48GT4XS-D, RG-CS85-24GT8XS-D, and RG-CS86-20XS4VS2QXS-D.
- • High-Voltage DC (HVDC) Input
- 240 V DC rated (192 V DC to 288 V DC operating tolerance).
- This power module is built explicitly for non-PoE enterprise chassis lines, including
