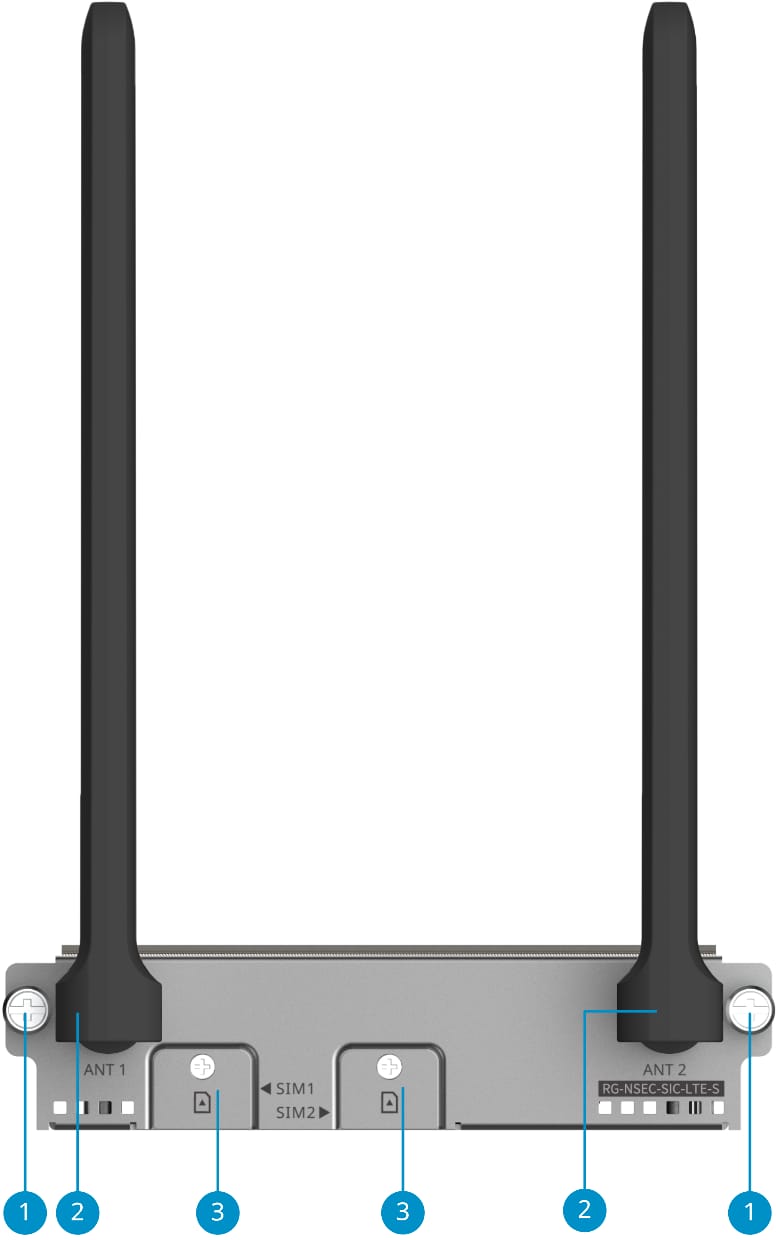

Ruijie RG-NSEC-SIC-LTE-S
A 4G LTE plug-in expansion module featuring Dual SIM Single Standby slots, designed to provide wireless cellular WAN backup and network redundancy for compatible Ruijie enterprise firewalls
Features
- • Cellular Redundancy: Supports dual SIM cards (Micro SIM) in single standby mode to ensure automatic backup connection.
- • Network Capability: Compatible with WCDMA, TDD-LTE, and FDD-LTE mobile technologies.
- • Hardware Form Factor: Designed as a compact SIC (Smart Interface Card) expansion module.
- • Device Compatibility: Pairs directly with Ruijie RG-CF30XS and RG-CF30XS-H firewalls.
- • Antenna Connection: Uses standard SMA-J interface connectors for external cellular antennas.
Specifications
- • SIM Card Slots
- 2 x Micro SIM slots.
- • Interface Standards
- 4G LTE and 3G WCDMA network bands.
- • Physical Dimensions
- 103.37 mm x 123 mm x 28 mm.
- • Maximum Power Consumption
- 5 Watts.
