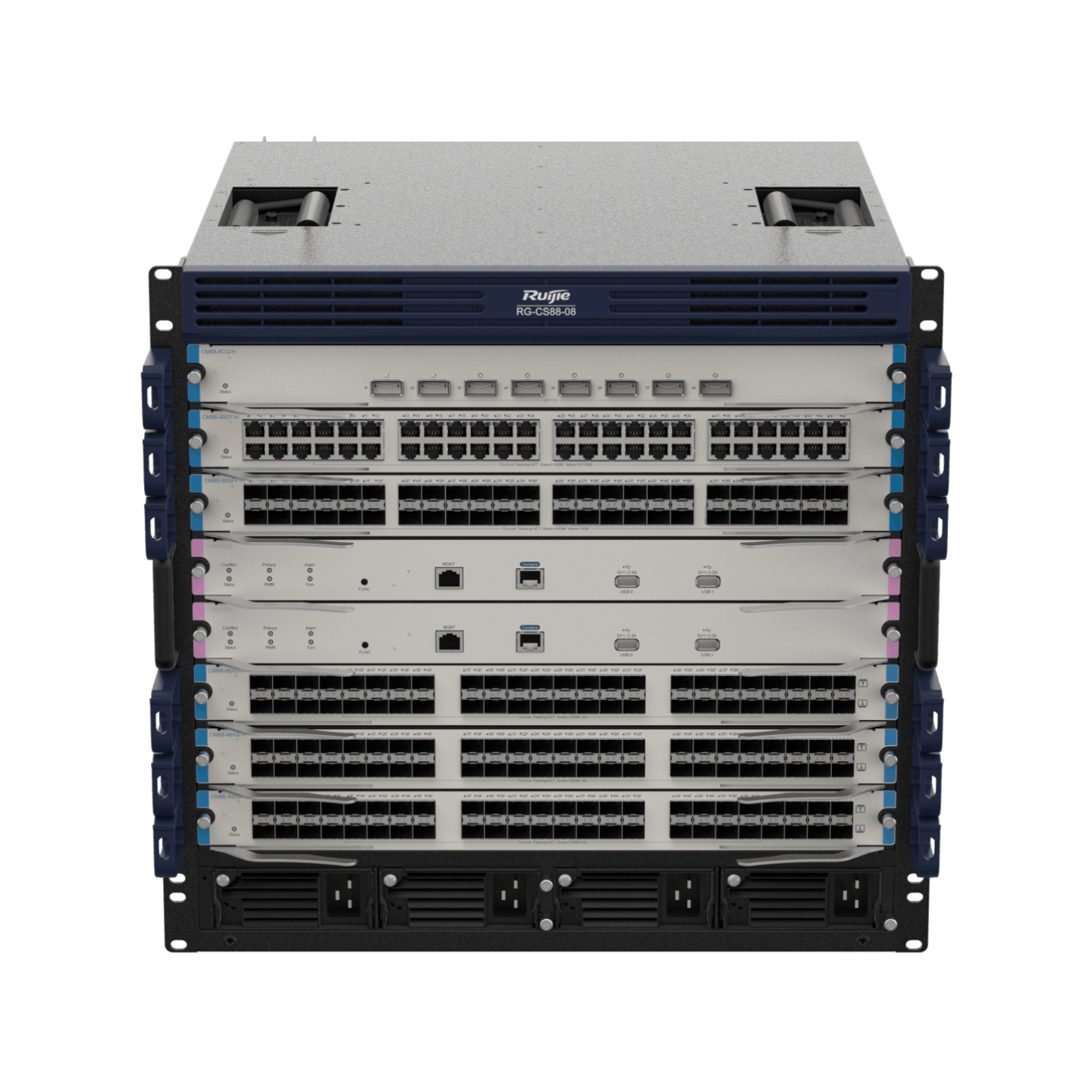

Ruijie RG-CS88-08
Features
- • 1+1 Control Plane Redundancy: Deploying dual CM88-CM supervisor modules configures an Active-Standby high-availability engine matrix. It provides synchronized stateful switchovers with a sub-50ms fault recovery detection rate to eliminate single-point control failure.
- • Carrier-Grade Hardware-Level Multi-Protection:
- • N+M Power Supply Redundancy: Supports load-sharing power distribution configurations using modular RG-PA600I-F or RG-PA1600I-F AC units.
- • 1+1 Smart Fan Redundancy: Features independent fan monitoring cards adjusting cooling across 256 automated regulation tiers based on internal zone thermo-sensors.
- • Dual-Chip Boot Security: Every supervisor card and service module features isolated 1+1 hardware-enforced BootROM flash protection, instantly restoring system environments from a secondary storage bank if a main OS sync becomes corrupted.
- • Non-Disruptive Full Hot-Swapping: Every single core redundancy component, power unit, fan tray, line card module, and transceiver array is fully hot-pluggable. Maintenance or hardware updates can be finalized smoothly while the switch remains online running active business traffic.
- • Advanced Threat Shielding Policies: Reinforced with Ruijie's native CPU Protection Policy (CPP) and Network Foundation Protection Policy (NFPP). It isolates malicious traffic layer anomalies (e.g., rogue ARP spoofing, broadcast storm loops, and tracking scans) directly at the source interface to prevent centralized processing plane crashes.
- • VSU Virtualization (Stacking): Supports Virtual Switch Unit technology, allowing you to cluster 2 separate physical RG-CS88-08 chassis switch architectures together into a single logical operational fabric. This combines management planes and sets up cross-chassis link aggregation safety trunks.
- • Lifetime Cloud-Managed Topology: Seamlessly communicates out-of-the-box with the Ruijie Cloud platform for single-pane Zero-Touch Provisioning (ZTP), immediate visual alert pushes, automatic configuration backups, and real-time link usage charts.
Specifications
- • Form Factor
- 10 RU (Rack Unit) heavy-duty rack-mountable compact chassis design.
- • Total Module Slots
- 8 physical expansion bays broken down as:
- • Base Chassis Weight
- 35.6 kg (78.48 lbs) empty configuration.
- • Physical Dimensions
- 442 mm x 465 mm x 441.7 mm.
- • Power & Thermal Slots
- 4 x Hot-swappable power supply bays and 2 x Variable-speed system cooling fan tray slots.
- • Packet Forwarding Rate
- 7,200 Mpps for maximum wire-speed hardware packet routing.
- • Chassis Switching Capacity
- Up to a massive 9.6 Tbps of total backplane switching potential.
- • Dense Port Capacity Limits
- Accommodates a vast assortment of multi-rate fiber and copper links depending on your line card layouts, capable of pushing up to 288 concurrent 10GE SFP+ ports across a single host chassis.
- • 2 x Supervisor Module Slots
- Dedicated slots for redundant system routing processors running the central operating engine (CM88-CM).
- • 6 x Service Line Card Slots
- Houses any combination of the modular service interface cards you asked about (e.g., CM88-48GT-H, CM88-48SFP-H, CM88-48XS-H, or CM88-8CQ-H).
- • Data Transport Optimization
- Built with global hardware tables for up to 4K dynamic VLAN groups, standard 9216-byte Jumbo Frame processing, and Quality of Service (QoS) bandwidth management engines
- • Advanced Multi-Layer Routing
- Line-rate underlay/overlay handling across IPv4/IPv6 dual stacks, loaded with dynamic corporate protocols including OSPFv2/v3, BGP4/4+, RIP, IS-IS, VRRP, Policy-Based Routing (PBR), and carrier-grade MPLS L3VPN execution.
