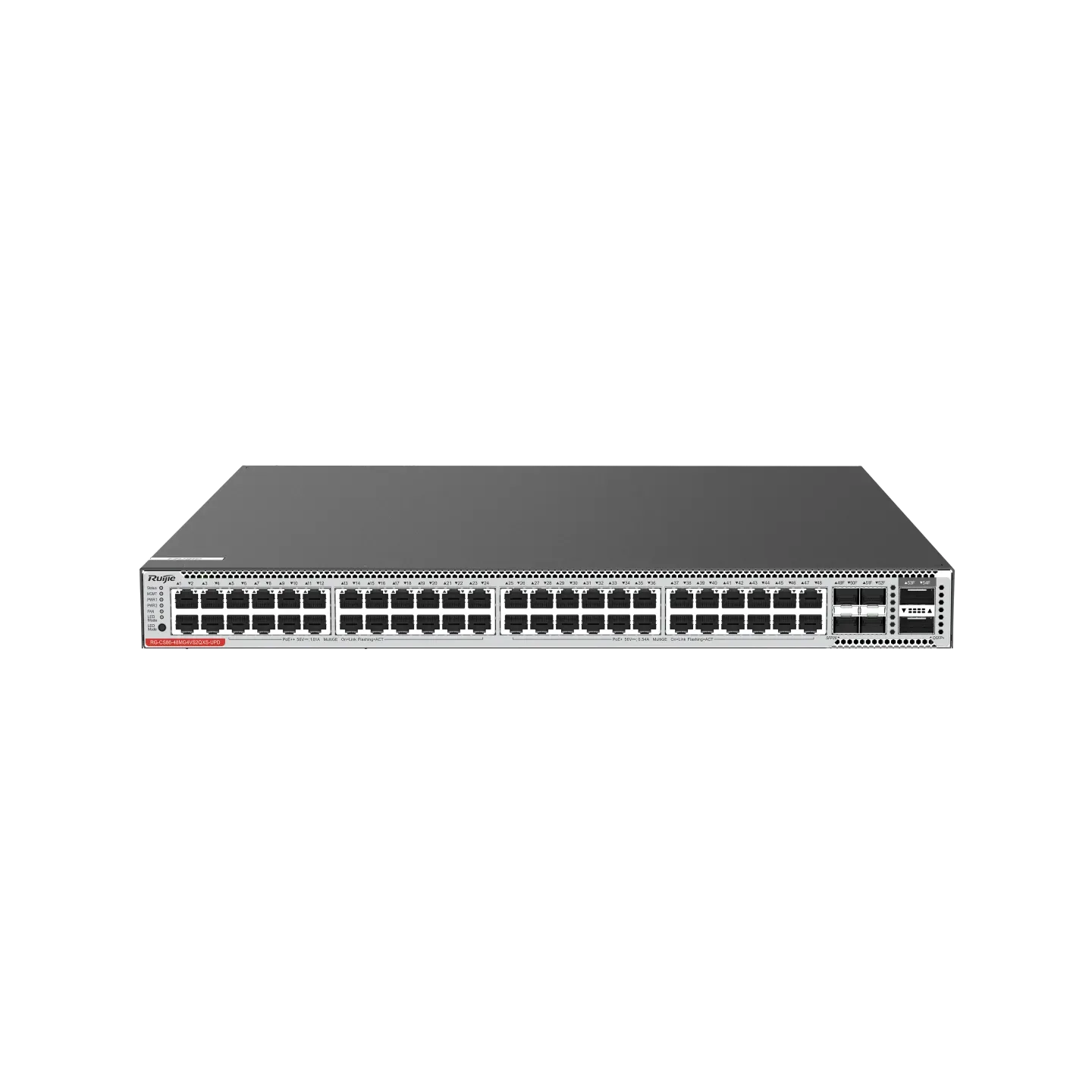

Ruijie RG-CS86-48MG4VS2QXS-UPD
Features
- • VSU Virtualization (Stacking): Virtual Switch Unit (VSU) capabilities allow you to virtualize physical switches into a single logical unit. This unifies management via a single IP and delivers hyper-fast 30ms link failovers if a member line or hardware node goes offline.
- • Full Layer 3 Dynamic Routing: Hardware-accelerated processing for an IPv4/IPv6 dual-stack with comprehensive protocol handling, including OSPFv2/v3, BGP4+, RIPv1/v2, and IS-IS.
- • Hardware-Level Multi-Protection:
- • Dual-Chip Boot Redundancy: Configured with a 1+1 hardware backup storage chip mechanism (16 MB BootROM / 1 GB Flash) that automatically restores operations if a primary system update gets corrupted.
- • Optical Port Fault Isolation: Proactively flags transceiver signal errors and isolates optical degradation anomalies to protect surrounding fiber links.
- • Core Security Mitigation Policies: Hardened with Ruijie's native CPU Protection Policy (CPP) and Network Foundation Protection Policy (NFPP) to suppress broadcast storms, block processor-targeted DDoS floods, and throttle rogue ARP or IP scanning attacks.
- • Uninterruptible PoE: Employs continuous PoE delivery, keeping critical downstream access points and security systems fully powered online even while the switch is executing a soft operating system reboot.
- • Intelligent Power Regulation: Implements dynamic internal component temperature tracking to regulate fan speeds alongside auto service-port sleeping, reducing acoustics and idle power overhead.
- • Zero-Touch Cloud Orchestration: Seamlessly integrates into the lifetime-free Ruijie Cloud platform for centralized multi-site management, topology layout tracking, and remote diagnostics alongside traditional CLI, Web UI, and SNMPv3 controls.
Specifications
- • System Hardware
- Powered by a 1.25 GHz processor, equipped with 2 GB RAM and 1 GB Flash memory.
- • Database Scaling
- Supports a 32,768 entry MAC address table, up to 16,000 ARP entries, and 4,096 dynamic VLAN groups.
- • Massive PoE Budget
- Features 2 x hot-swappable power supply module slots supporting 1+1 power redundancy. It utilizes high-wattage options like the RG-PA600I-P-F or RG-PA1000I-P-F modules, supporting a maximum total potential PoE power budget of up to 1600W.
- • Switching Capacity
- 840 Gbps line-rate processing.
- • Out-of-Band Control
- 1 x dedicated RJ45 MGMT port, 1 x physical Console port, and 1 x USB configuration port.
- • Packet Forwarding Rate
- 625 Mpps.
- • High-Speed Uplink Slots
- 4 x 10GE/25GE SFP28 high-speed optical slots.
- • Pluggable Cooling Matrix
- Built with 3 x hot-swappable modular cooling fans configured for 2+1 fan redundancy with smart environmental monitoring.
- • Dense 90W PoE++ Allocation
- Ports 1 through 24 natively support IEEE 802.3bt Type 4 (PoE++ up to 90W per port) to drive high-power hardware like Wi-Fi 7 APs. Ports 25 through 48 support IEEE 802.3at (PoE+ up to 30W per port).
- • Multi-Gigabit Downlink Ports
- 48 x RJ45 ports supporting auto-negotiation across 100M / 1G / 2.5G / 5GBASE-T.
- • Ultra-High-Speed Backbone Slots
- 2 x 40GE QSFP+ backbone uplink ports.
