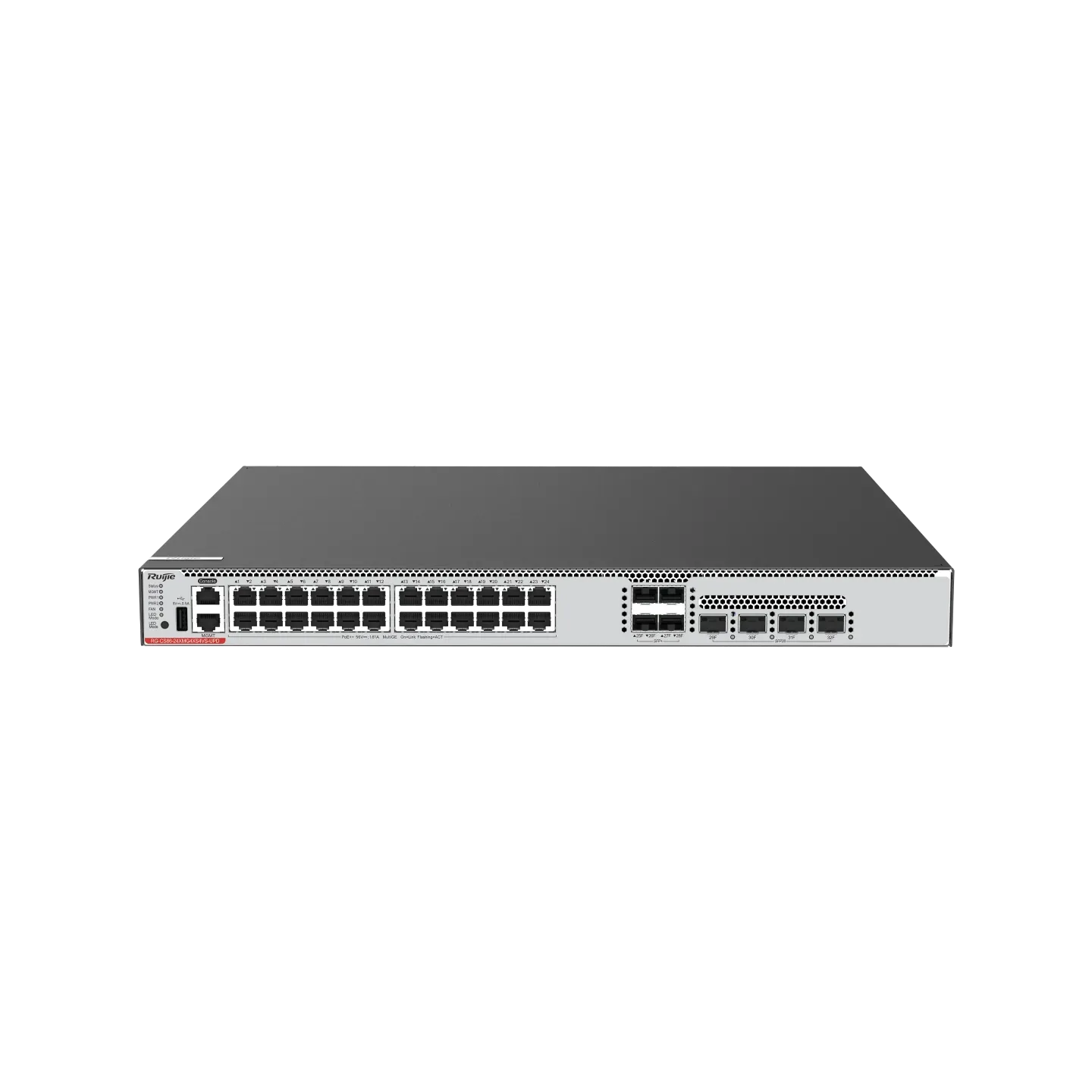

Ruijie RG-CS86-24XMG4XS4VS-UPD
Features
- • VSU Virtualization (Stacking): Virtual Switch Unit (VSU) technology allows you to stack up to 2 physical units into a single logical platform, facilitating streamlined, single-IP network orchestration and multi-chassis link aggregation.
- • Full Layer 3 Dynamic Routing: Delivers line-rate multi-layer dynamic packet routing over IPv4/IPv6 dual stacks utilizing OSPFv2/v3, BGP4+, RIPv1/v2, and IS-IS protocols.
- • Hardware-Level Multi-Protection:
- • Dual-Chip Boot Redundancy: Employs a 1+1 hardware backup storage chip mechanism. If a firmware upgrade gets interrupted or corrupted, the backup chip automatically recovers the platform safely.
- • Optical Port Fault Isolation: Automatically shields neighboring links by instantly isolating transceiver signal failures or optical degradation anomalies.
- • Core Security Shielding: Hardened by Ruijie's native CPU Protection Policy (CPP) and Network Foundation Protection Policy (NFPP) to filter out malicious network scanning, suppress broadcast storms, and block processor-targeted DDoS floods.
- • Uninterruptible PoE: Employs continuous PoE delivery, keeping downstream access points and security systems fully operational even during soft operating system reboots.
- • Energy-Efficient Smart Maintenance: Features integrated automated fan speed regulation alongside localized auto-sleeping functions to drastically reduce power overhead and acoustics when idling.
- • Zero-Touch Cloud Deployment: Built for instant synchronization into the lifetime-free Ruijie Cloud platform for centralized multi-site control, alongside standard CLI, Web UI, SNMPv3, and NETCONF management.
Specifications
- • System Hardware
- Powered by a 1.25 GHz single-core ARM processor, equipped with 2 GB RAM and 1 GB Flash memory.
- • Database Scaling
- Integrates a 32,768 entry MAC address table and a 16,000 entry ARP table.
- • Pluggable Cooling
- Built with 3 x hot-swappable modular cooling fans configured for 2+1 fan redundancy.
- • System Management
- 1 x RJ45 MGMT port, 1 x physical Console port, and 1 x USB configuration port.
- • 90W Per-Port PoE++
- All 24 multi-gigabit electrical copper ports support IEEE 802.3af/at/bt Type 4 (PoE++), delivering up to 90W per port.
- • Switching Capacity
- 760 Gbps line-rate processing.
- • Packet Forwarding Rate
- Up to 565 Mpps.
- • Standard Fiber Uplinks
- 4 x 1GE/10GE SFP+ optical interface slots.
- • Modular Power Redundancy
- Equipped with 2 x hot-swappable power supply module bays supporting 1+1 redundancy. Requires either the RG-PA600I-P-F (600W) or RG-PA1000I-P-F (1000W) modular power supply unit.
- • Ultra-High-Speed Uplinks
- 4 x 10GE/25GE SFP28 high-speed optical slots.
- • Multi-Gigabit Downlink Ports
- 24 x RJ45 ports supporting auto-negotiation across 100M / 1G / 2.5G / 5G / 10GBASE-T.
