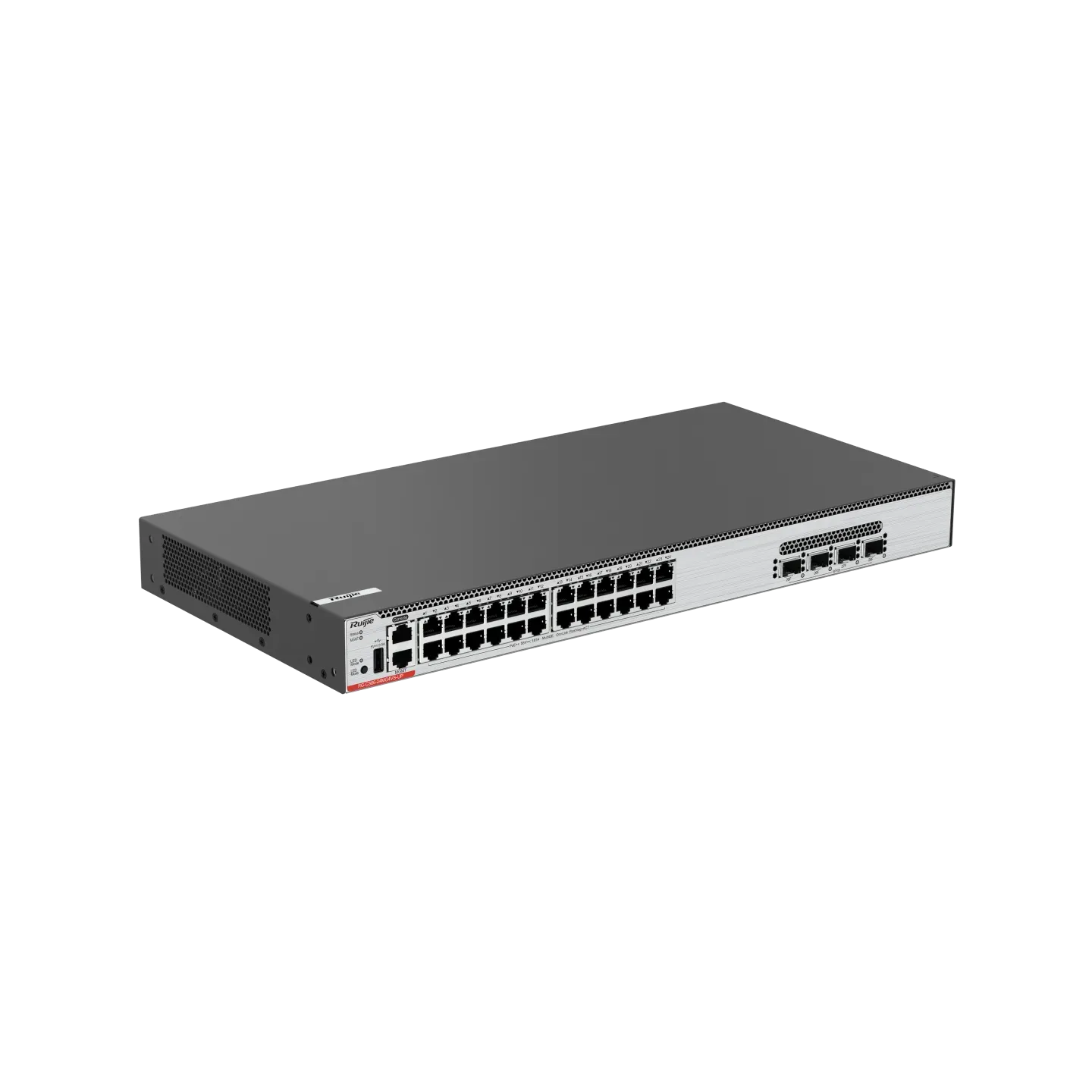

Ruijie RG-CS86-24MG4VS-UP
Features
- • VSU Virtualization (Stacking): Virtual Switch Unit (VSU) capabilities allow you to stack up to 2 physical switches together into a single logical network node, streamlining administrative operations and enabling cross-chassis link aggregation protection.
- • Full Layer 3 Dynamic Routing: Line-rate processing for an IPv4/IPv6 dual-stack with integrated support for dynamic routing protocols including OSPFv2/v3, BGP4+, RIPv1/v2, and IS-IS.
- • Hardware-Level Multi-Protection:
- • Dual-Chip Boot Redundancy: Engineered with dual hardware boot chips (1+1 Flash layout) to automatically salvage the system configuration if a primary firmware upgrade fails.
- • Optical Link Fault Isolation: Instantly contains erratic link degradation anomalies on fiber interfaces to preserve adjacent uplinks.
- • Security Mitigation Policies: Armed with Ruijie's native CPU Protection Policy (CPP) and Network Foundation Protection Policy (NFPP) to throttle malicious network scans, ARP spoofing storms, and processing-plane flood attacks.
- • Intelligent Power Management: Employs variable internal speed regulation fans alongside auto service-port sleeping capabilities to dramatically reduce noise levels and ambient energy consumption during network idles.
- • Zero-Touch Cloud Deployment: Seamlessly fully integrated into the lifetime-free Ruijie Cloud console and app platform for remote topology mapping, alongside traditional industrial CLI, Web UI, SNMPv3, and NETCONF controls.
Specifications
- • Database Tables
- Accommodates a 32,768 entry MAC address table and a 16,000 entry ARP table.
- • Power Profiling
- Built-in 460W power module drawing <120W maximum base power without active PoE loads.
- • System Hardware
- 1.25 GHz ARM processor paired with 1 GB SDRAM and 1 GB Flash storage.
- • Total PoE Budget
- Features a built-in power framework delivering an aggregate 370W PoE budget.
- • Switching Capacity
- 440 Gbps line-rate multi-layer switching.
- • 90W Per-Port Output
- All 24 multi-gigabit copper ports natively support IEEE 802.3af/at/bt Type 4 (PoE++), supplying up to 90W per port.
- • Uninterruptible PoE
- Maintains consistent continuous PoE delivery to downstream access points and security systems even while the switch is performing soft operating system reboots.
- • Packet Forwarding Rate
- 327 Mpps.
- • High-Speed Uplink Slots
- 4 x 10GE / 25GE SFP28 fiber uplink ports.
- • System Management Layout
- 1 x dedicated RJ45 MGMT port, 1 x Console port, and 1 x USB configuration interface.
- • Multi-Gigabit Downlink Ports
- 24 x RJ45 electrical ports supporting auto-negotiating speeds of 100M / 1G / 2.5G / 5GBASE-T.
