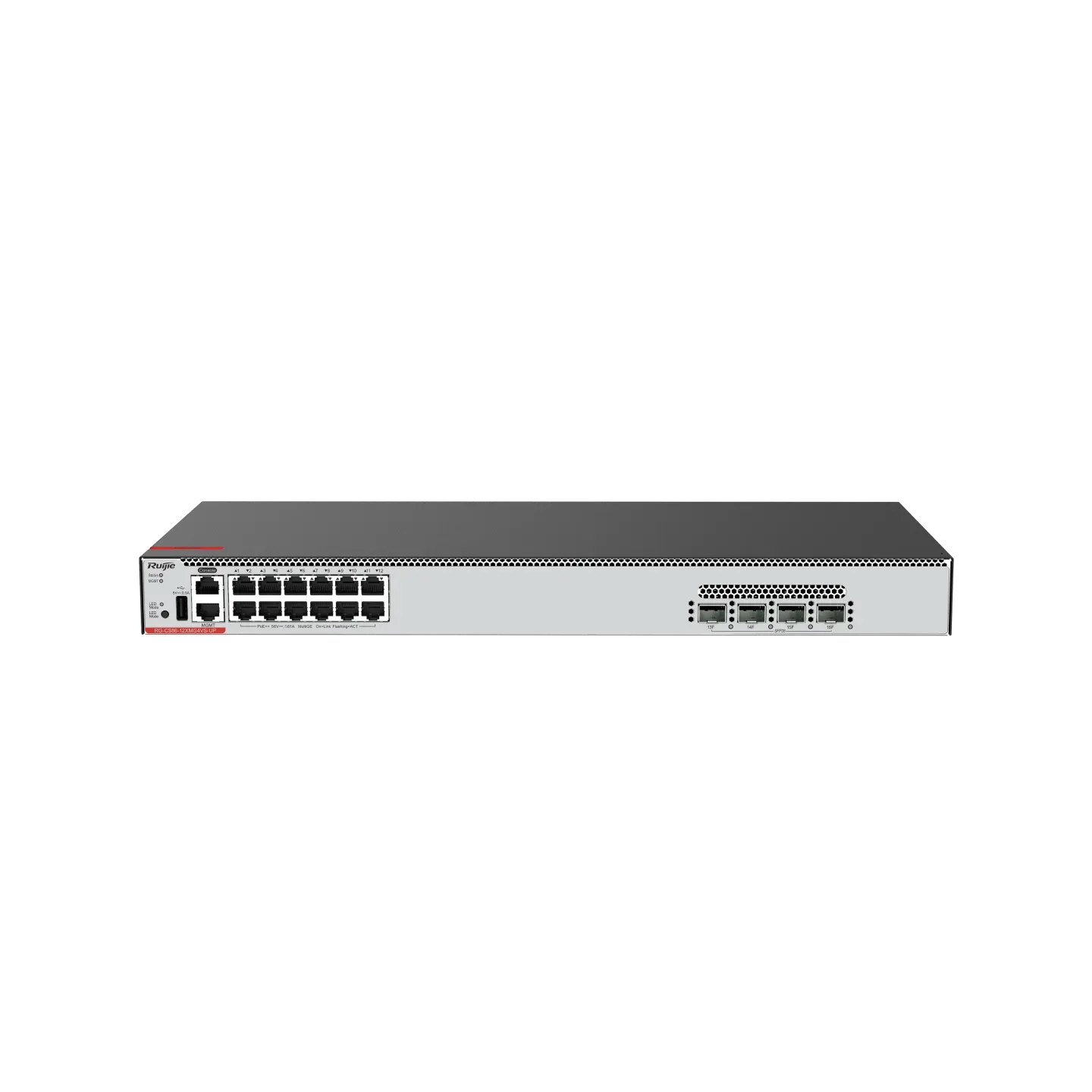

Ruijie RG-CS86-12XMG4VS-UP
Features
- Main Enterprise Features (Feats)
- • Full Layer 3 Dynamic Routing: Hardware-accelerated processing for an IPv4/IPv6 dual-stack with advanced control protocols, including OSPF, IS-IS, BGP, and Policy-Based Routing (PBR).
- • VSU Virtualization (Stacking): Virtual Switch Unit (VSU) capabilities allow you to combine multiple compatible switches together. They run as a unified logical framework with streamlined management and synchronized link-aggregation safety nets.
- • Hardware Resilience Multi-Protection:
- • 1+1 Redundant Boot: Equipped with dual hardware boot chips to instantly recover the device if a system firmware installation encounters errors.
- • Optical Port Fault Isolation: Automatically isolates erratic optical anomalies on fiber lines to protect neighboring trunks from degradation.
- • Security Mitigation Policies: Configured with Ruijie's native CPU Protection Policy (CPP) and Network Foundation Protection Policy (NFPP) to throttle malicious network scans, ARP spoofing, and system-level traffic floods.
- • Intelligent Thermal Regulation: Utilizes smart internal fan adjustments and automatic port sleep triggers to heavily diminish environmental noise and overall power draw when idling.
- • Zero-Touch Cloud Deployment: Built for integration into the lifetime-free Ruijie Cloud app or web interface alongside standard industrial protocols like CLI, Web UI, SNMP, and NETCONF.
Specifications
- • PoE Budget
- Features a built-in power supply providing a maximum aggregate 460W PoE budget.
- • Database Tables
- Stores a 32,768 entry MAC address table and supporting 4K dynamic VLAN groups.
- • System Hardware
- 1.25 GHz single-core processor paired with 2 GB SDRAM and 1 GB Flash storage.
- • Management Layout
- 1 x dedicated RJ45 MGMT port, 1 x Console port, and 1 x USB interface.
- • Switching Capacity
- 440 Gbps.
- • 90W Per-Port Output
- Every single one of the 12 copper ports natively supports IEEE 802.3af/at/bt Type 4 (PoE++), pushing up to 90W per port to drive PTZ cameras, heavy digital signage, and multi-radio Wi-Fi 7 blocks.
- • Uninterruptible PoE
- Employs continuous PoE delivery, meaning connected access points and security systems stay powered online even while the switch is executing a soft operating system reboot.
- • Performance Capacity
- • Packet Forwarding Rate
- 327 Mpps.
- • High-Speed Uplink Slots
- 4 x 10GE / 25GE SFP28 fiber uplink ports.
- • Multi-Gigabit Downlink Ports
- 12 x RJ45 ports supporting auto-negotiating speeds of 100M / 1G / 2.5G / 5G / 10GBASE-T.
