Networking

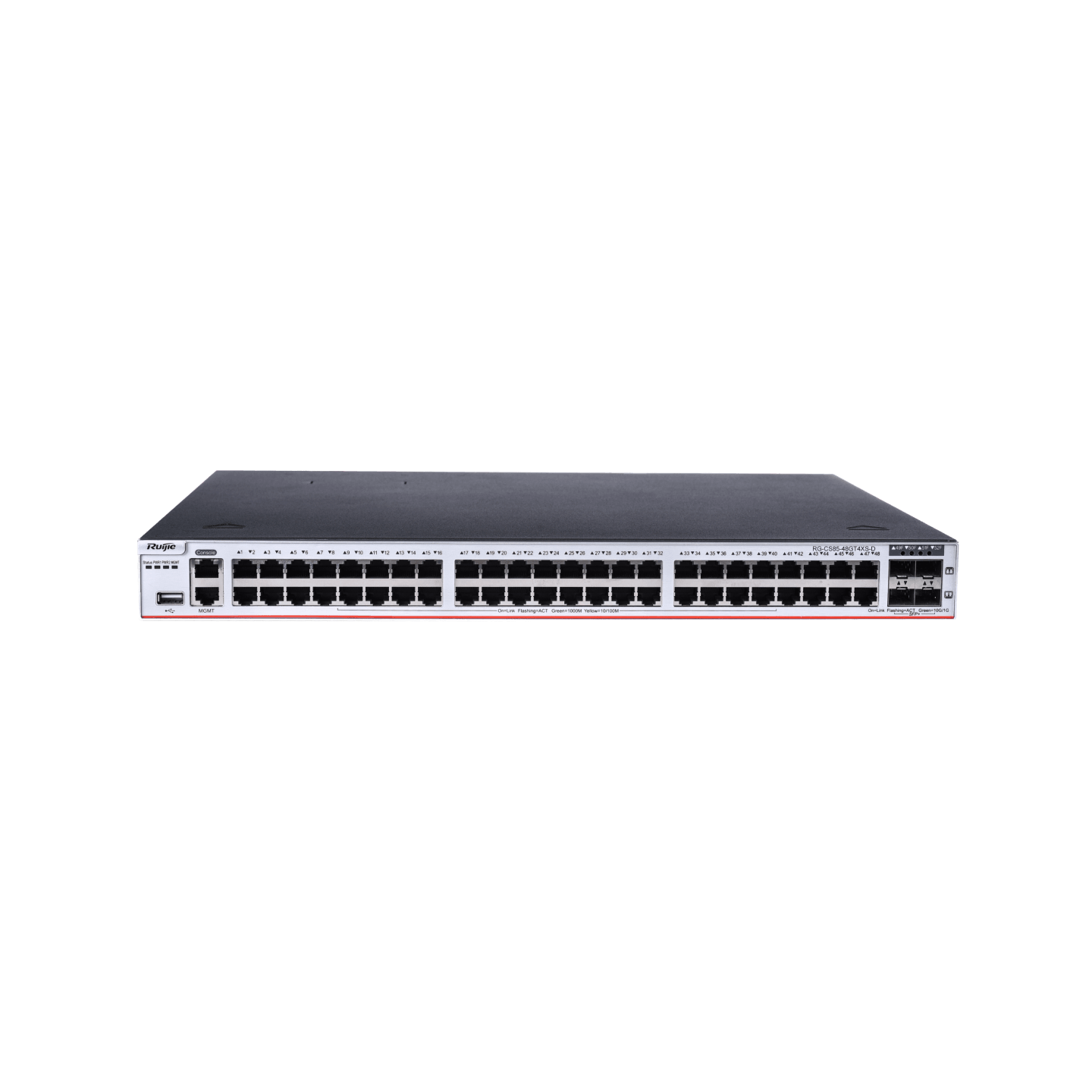

Ruijie RG-CS85-48GT4XS-D
Features
- Main Enterprise Features
- • VSU Virtualization (Stacking): Supports Virtual Switch Unit (VSU) technology, allowing you to combine up to 4 physical switches into a single logical entity to streamline management and build link redundancy.
- • Full Layer 3 Dynamic Routing: Equipped with complete hardware-based L3 routing capabilities supporting an IPv4/IPv6 dual stack alongside advanced routing protocols like OSPF, BGP, RIP, and IS-IS.
- • Hardware-Level Redundancy:
- • Power Supply: Dual hot-swappable power bays supporting 1+1 backup power using the Ruijie RG-PA150IB-F module.
- • Dual-Chip Flash Memory: Built with dual boot chips to provide system recovery protection in case a firmware upgrade fails.
- • Advanced Security Suite: Outfitted with Ruijie's native CPU Protection Policy (CPP) and Network Foundation Protection Policy (NFPP) to proactively shield the switch's processor from malicious scanning or DDoS attack traffic.
- • Flexible Management: Allows remote orchestration, deployment, and monitoring using the lifetime-free Ruijie Cloud app/web console, alongside traditional CLI, Web UI, and SNMP methods.
Specifications
- • Physical Profile
- Compact 1 RU rack-mountable chassis with a protective anti-corrosion layer on the internal circuitry
- • Expansion Options
- Equipped with 1 x Rear Module Slot specifically designed to support the CM85-4XS2CQ module (which adds an extra 4x 10G SFP+ and 2x 100G QSFP28 ports).
- • MAC Address Table
- Stores up to 64,000 entries.
- • Fixed Uplink Ports
- 4 x 1GE/10GE SFP+ high-speed optical slots.
- • Switching Capacity
- 656 Gbps.
- • Fixed Service Ports
- 48 x 10/100/1000Base-T Gigabit Ethernet copper ports.
- • Performance Metrics
- • Packet Forwarding Rate
- 488 Mpps.
