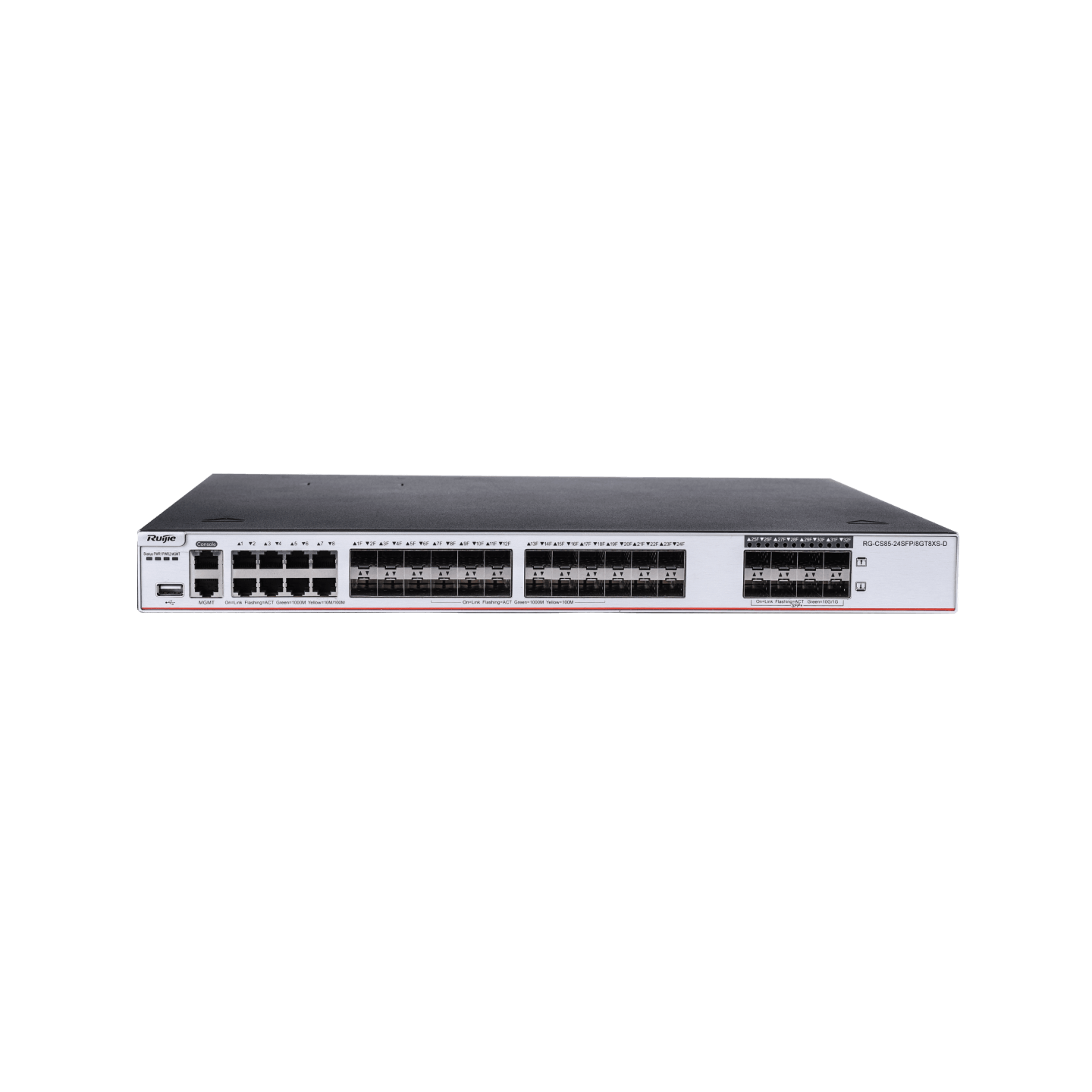

Ruijie RG-CS85-24SFP/8GT8XS-D
Features
- Power & System Reliability
- • Power Module Redundancy: Equipped with 2 x hot-swappable power slots supporting 1+1 power redundancy. It runs on the modular Ruijie RG-PA150IB-F AC unit (at least one required).
- • Cooling: 3 x built-in cooling fans.
- • Boot Redundancy: Hardware-level protection featuring a dual-chip flash system to guarantee safe recovery during firmware updates.
- • Advanced Enterprise Features: Supports VSU Virtualization (stacking up to 4 units together into a single logical entity), advanced L3 dynamic routing protocols (OSPF, BGP, IS-IS), hardware-level security policies (CPP and NFPP), and integrated orchestration via Ruijie Cloud.
Specifications
- • Combo Ports
- 8 x 10/100/1000Base-T RJ45 ports mapped as combo ports shared with SFP ports 1 to 8, providing flexible physical choice between copper or fiber cabling.
- • Ports 1 to 16
- Support both 100M and 1GE SFP optical transceivers.
- • Ports 17 to 24
- Strictly support 1GE SFP optical transceivers only.
- • System Hardware
- Dual-core 1.2 GHz processor, 4 GB Flash memory, and 1 GB SDRAM.
- • Tables & Frames
- Supports Jumbo Frames up to 9216 bytes, a 64k MAC address table, and 24k ARP entries.
- • Control Interfaces
- 1 x RJ45 Console port, 1 x RJ45 MGMT port, and 1 x USB 3.0 port.
- • Fixed Uplink Ports
- 8 x 1GE/10GE SFP+ high-speed optical slots.
- • Switching Capacity
- 688 Gbps.
- • Fixed Fiber SFP Ports
- 24 x 1GE SFP ports designed for aggregating perimeter fiber optic links.
- • Modular Expansion Slot
- 1 x Extension Card Slot on the rear panel supporting the CM85-4XS2CQ expansion module for additional 4x 10G SFP+ and 2x 100G QSFP28 ports.
- • Packet Forwarding Rate
- 512 Mpps.
