Networking

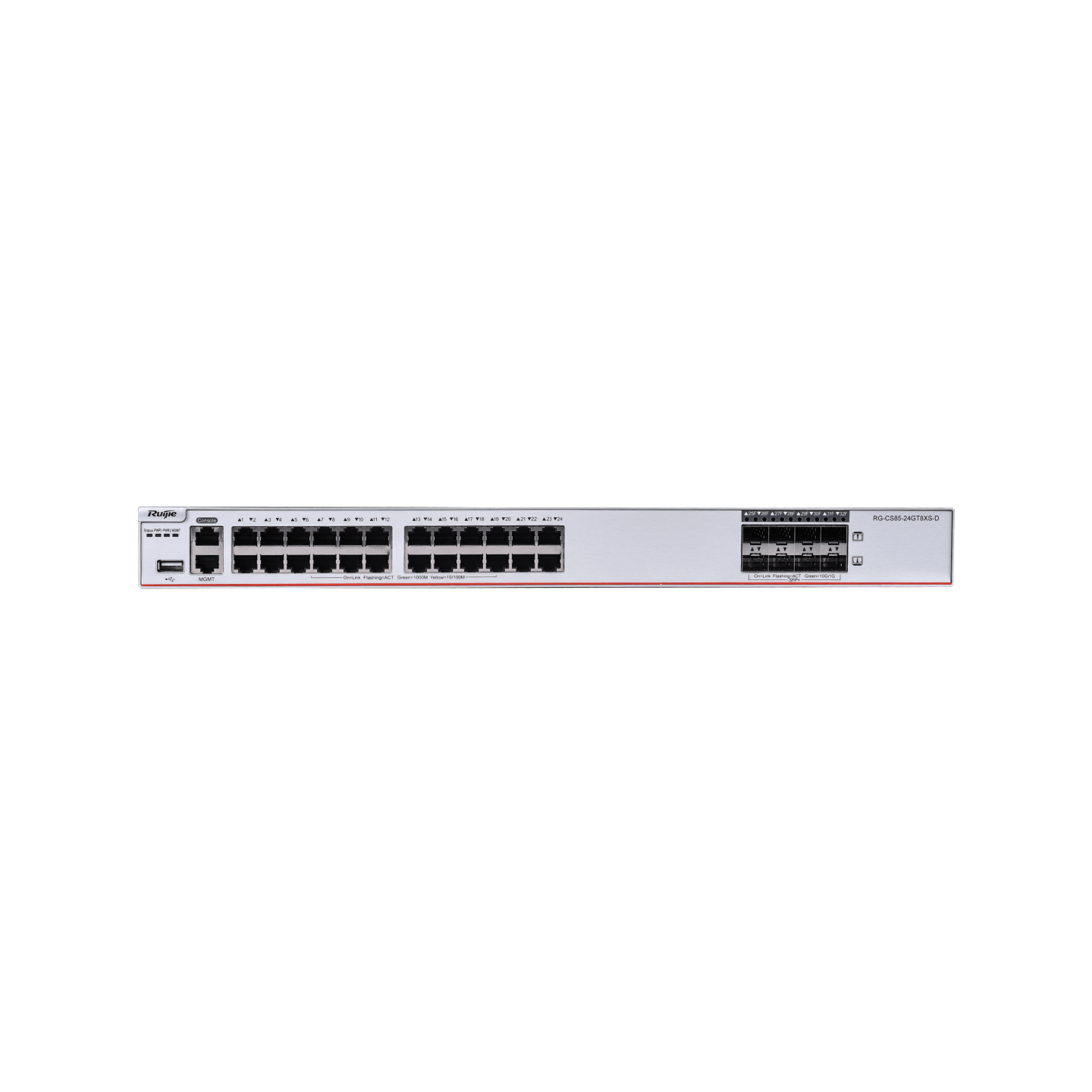

Ruijie RG-CS85-24GT8XS-D
Features
- Power & Reliability Features
- • Power Redundancy: 2 x Replaceable hot-swappable power supply slots (supports 1+1 redundancy using the Ruijie RG-PA150IB-F 150W AC power module; requires at least one).
- • Cooling: 3 x Built-in fixed cooling fans.
- • Boot Redundancy: Hardware-level boot redundancy via dual-chip flash memory.
- • Advanced Protocols: Supports VSU Virtualization (stacking up to 4 switches into a single logical unit), comprehensive Layer 3 routing (OSPF, BGP), and complete management via Ruijie Cloud.
Specifications
- • Fixed RJ45 Ports
- 24 x 10/100/1000Base-T Gigabit Ethernet ports.
- • Management Ports
- 1 x RJ45 Console port, 1 x Dedicated RJ45 MGMT port, and 1 x USB 3.0 port.
- • Modular Expansion
- 1 x Expansion Slot located on the back panel (fully supports adding the CM85-4XS2CQ card for an additional 4x 10G SFP+ and 2x 100G QSFP28 ports).
- • Fixed Uplink Ports
- 8 x 1GE/10GE SFP+ high-speed optical slots.
- • Switching Capacity
- 688 Gbps.
- • Hardware Architecture
- Dual-core 1.2 GHz CPU, 4 GB Flash memory, and 1 GB SDRAM.
- • Packet Forwarding Rate
- 512 Mpps.
- • Routing Table Capacity
- Up to 64,000 MAC address entries, 24,000 ARP entries, 24,000 IPv4 unicast routes, and 14,000 IPv6 unicast routes.
