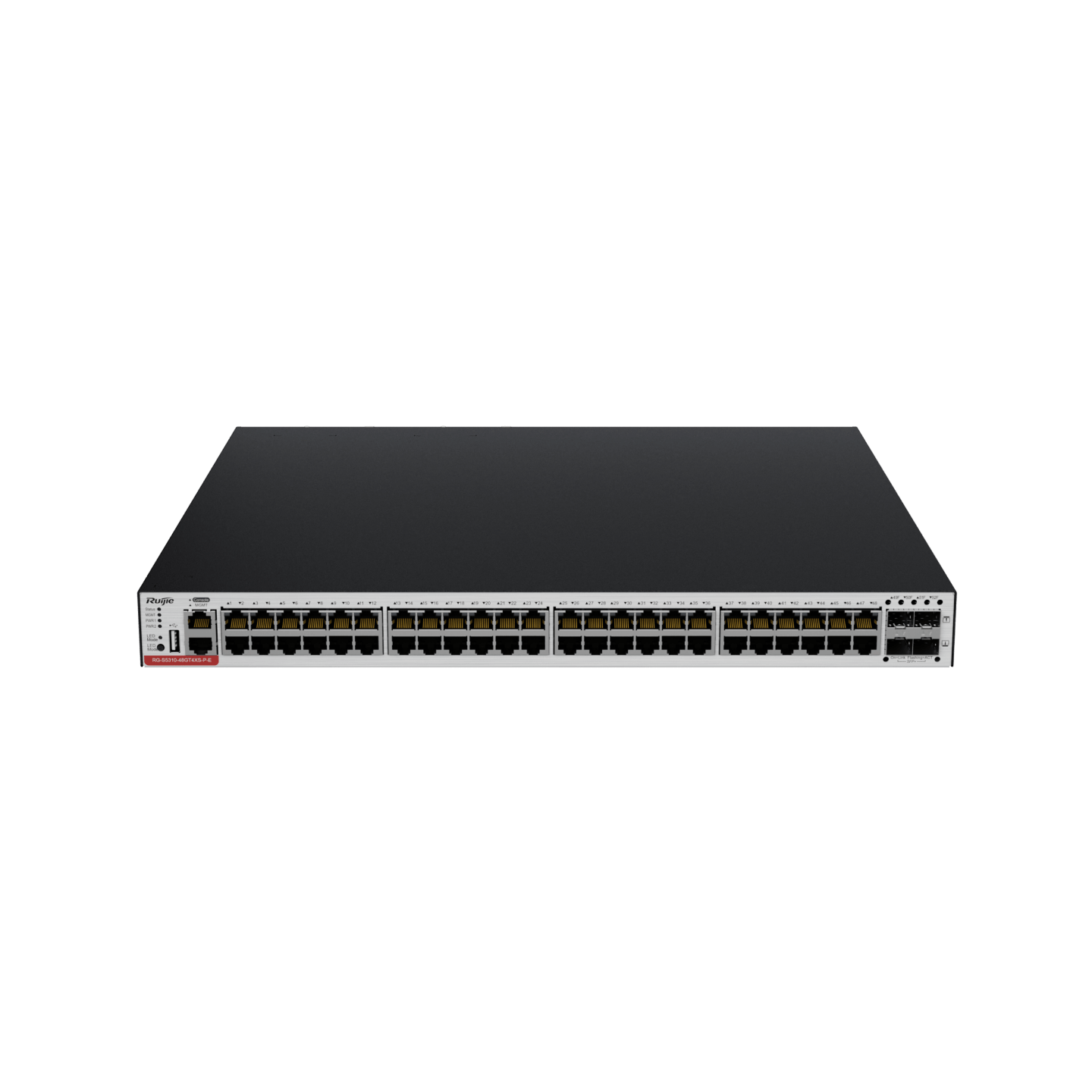

Ruijie RG-CS83-48GT4XS-PD
Features
- Core Highlight Features
- • Carrier-Grade 1+1 Power Redundancy: The hot-swappable modular design lets you replace or service a failed power module without turning off the switch, completely avoiding costly network downtime.
- • Advanced Layer 3 Dynamic Routing: Executes hardware-accelerated internal line routing via OSPF (v2/v3), BGP4+, IS-IS, Static Routing, RIP, and VRRP directly at the access tier to optimize inter-VLAN communications.
- • VSU Virtualization Stacking: Allows up to 4 physical units to blend into a single logical device, streamlining administration and delivering millisecond-level link failovers.
- • 1+1 Dual-Boot Safeguard: Incorporates a dual-boot hardware ROM configuration that protects against operating system crashes by automatically rolling over to a secure runtime mirror instantly if system corruption occurs.
- • Free Ruijie Cloud Ecosystem: Supports remote app configuration, diagnostic tracking, and automated deployment using Self-Organizing Network (SON) discovery.
- • Open & Programmable RGOS: Powered by the modular RGOS12.X operating system which includes Python script support for custom network orchestration and automation tasks.
- • Multi-Layer Security Defenses: Employs Hardware CPU Protection Policy (CPP) to restrict malicious flood traffic to the processor alongside Network Foundation Protection Policy (NFPP) and DHCP/ARP snooping to shut down rogue network manipulation.
- • 10 kV Surge Lightning Protection: Industrial-grade hardware shielding on all physical RJ45 network terminals shields internal computing circuits from transient electricity spikes.
Specifications
- • Port Density
- 48 × 10/100/1000BASE-T RJ45 copper ports (all supporting PoE/PoE+) and 4 × 1GE/10GE SFP+ optical uplink slots.
- • Chassis Dimensions
- 442 mm × 420 mm × 43.6 mm (Standard 1RU but features a deeper depth to accommodate the hot-swappable power bays)
- • Switching Capacity
- 176 Gbps total wire-speed fabric bandwidth.
- • Processing & Memory
- Upgraded dual-core 1.2 GHz processor equipped with 1 GB System RAM, a 3 MB packet buffer, and 2 GB Flash.
- • MAC Address Capacity
- Up to 32,000 entries.
- • Packet Forwarding Rate
- 132 Mpps processing throughput.
- • Compatible Power Modules
- Supports the RG-PA600I-P-F (600W AC module / 370W PoE budget per module) and the RG-PA1000I-P-F (1000W AC module).
- • Maximum PoE Power Budget
- Delivers a massive total scaling capability of up to 1480W of PoE output power when fully configured.
- • Power Supply Architecture
- Equipped with 2 rear hot-swappable power slots supporting 1+1 hardware power redundancy. (Note: Power supply modules are sold separately; it requires at least one standalone pluggable module to function).
