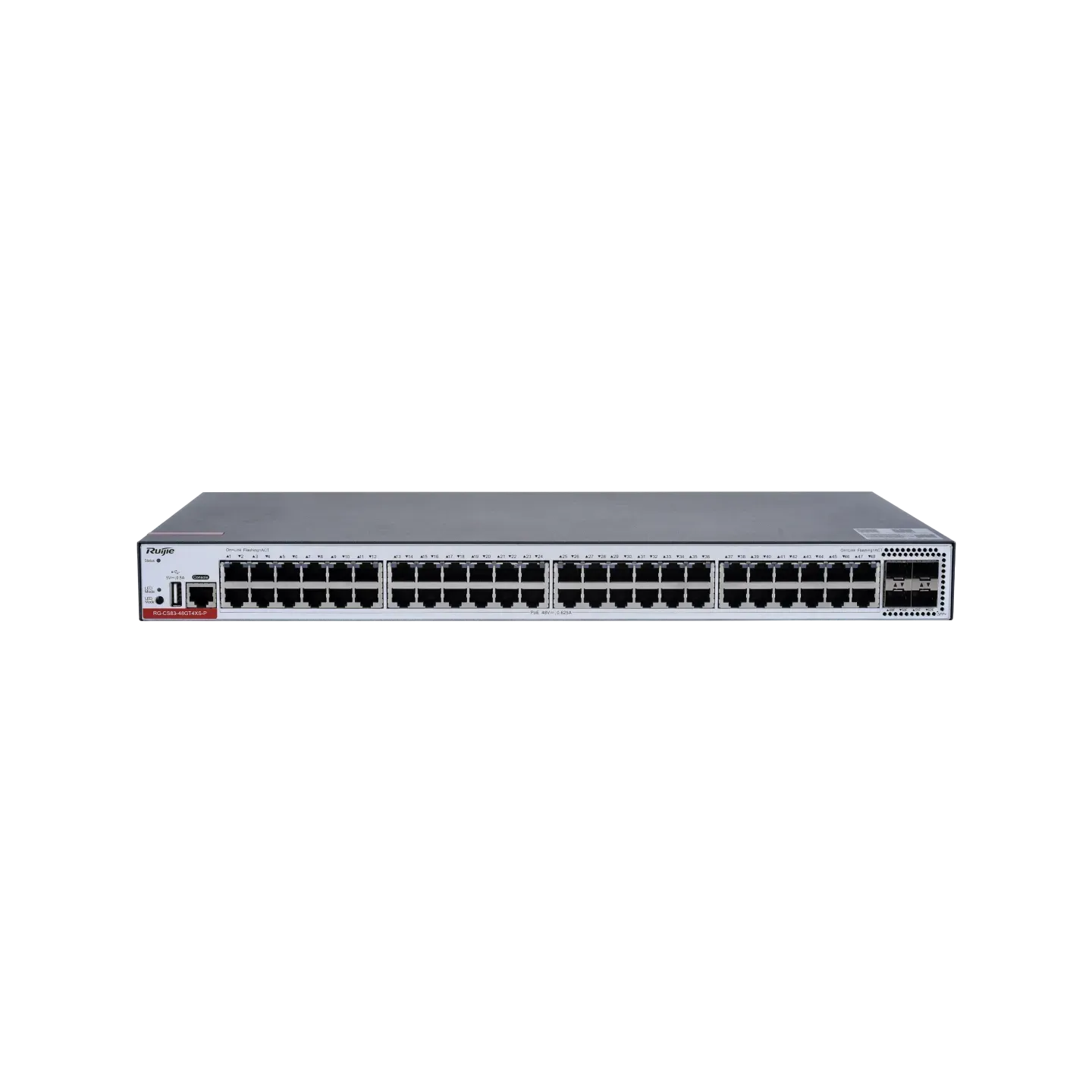

Ruijie RG-CS83-48GT4XS-P
Features
- • Wire-Speed Layer 3 Routing: Handles native network segmentation and localized dynamic IP routing via OSPFv2/OSPFv3, Static Routing, RIP, and VRRP directly at the access tier.
- • VSU Virtualization Stacking: Supports Virtual Switch Unit (VSU) technology, enabling up to 4 physical switches to be stacked and unified into a single logical network node with sub-second failover redundancy.
- • 1+1 Dual-Boot System: Incorporates a dual-boot hardware ROM configuration that safeguards against software crashes by rolling over to a secure runtime mirror instantly if firmware corruption occurs.
- • Free Ruijie Cloud Management: Provides out-of-the-box integration with the Ruijie Cloud Platform alongside Self-Organizing Network (SON) automation for fast, remote, zero-touch deployments.
- • Open & Programmable RGOS: Powered by the modular RGOS12.X operating system which includes Python script support for cross-platform app integration and network orchestration.
- • Proactive Security Protections: Employs a Hardware CPU Protection Policy (CPP) to restrict malicious flood traffic to the processor alongside a Network Foundation Protection Policy (NFPP) to stop automated ARP spoofing and IP tampering.
- • 10 kV Surge Shielding: Built-in industrial lightning and static protection on all physical RJ45 network terminals shields internal computing circuits from transient electricity spikes.
Specifications
- • Port Density
- 48 × 10/100/1000BASE-T RJ45 copper ports (all supporting PoE/PoE+) and 4 × 1GE/10GE SFP+ optical uplink slots.
- • Chassis Design
- Standard 1RU metal enclosure with a short depth of 220 mm, making it easy to mount inside narrow server racks or shallow wall-mount cabinets.
- • PoE Capabilities
- Full compliance with IEEE 802.3af/at standards, delivering up to 30W per individual port.
- • PoE Power Budget
- Dedicated internal power supply supplying a 370W to 405W maximum PoE power budget.
- • Switching Capacity
- 176 Gbps total wire-speed fabric bandwidth.
- • Hardware Dimensions
- 442 mm × 220 mm × 43.6 mm.
- • Packet Forwarding Rate
- 132 Mpps processing throughput.
- • Processing Architecture
- Dual-core 1.0 GHz processor equipped with 1 GB System RAM and 512 MB Flash.
