Networking

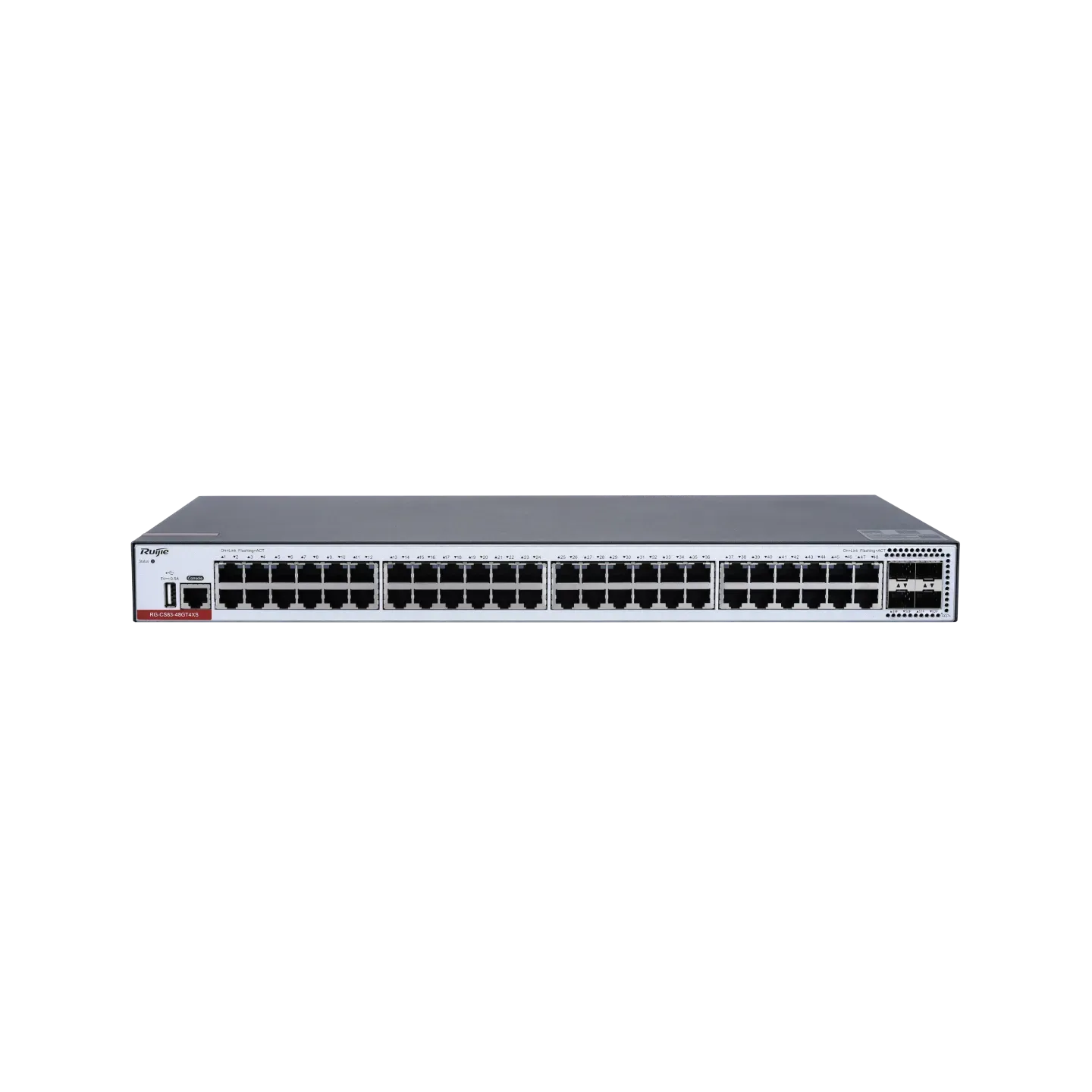

Ruijie RG-CS83-48GT4XS
Features
- Core Highlight Features
- • Advanced Layer 3 Routing: Conducts lightning-fast dynamic and static internal line routing using OSPF (v2/v3), Static Routing, RIP, BGP4+, and VRRP to streamline inter-VLAN communications.
- • VSU Virtual Stacking: Merges up to 4 physical units into one unified logical environment, simplifying high-density IP management and delivering millisecond link failovers.
- • 1+1 Hardware Dual-Boot: Employs an isolated backup hardware ROM configuration that mirrors system data, ensuring rapid automatic recovery if the core firmware layer hits a processing error.
- • Free Life-Time Cloud Integration: Natively connects with the Ruijie Cloud Platform allowing zero-touch deployment via Self-Organizing Network (SON) macros and remote optimization from your phone or PC.
- • Process-Level Self-Healing (RGOS): Operates on modular RGOS12.X software which can reboot single operational processes online in seconds without freezing physical network traffic. It also features native Python script execution for custom networking apps.
- • Enterprise Security Architecture: Uses a Hardware CPU Protection Policy (CPP) to block processing floods and a Network Foundation Protection Policy (NFPP) to insulate individual user ports against active ARP spoofing and IP tampering.
- • 10 kV Surge Shielding: Employs industrial-grade hardware-level static and lightning grounding protection across all physical copper interfaces.
Specifications
- • Port Density
- 48 × 10/100/1000BASE-T RJ45 copper ports and 4 × 1GE/10GE SFP+ optical uplink slots.
- • Chassis Design
- Standard 1RU height. The non-PoE and fixed-P models feature a short depth of 220 mm for cramped enclosures, while the modular PD model measures 420 mm deep to house the dual power trays.
- • Switching Capacity
- Upgraded to 176 Gbps total wire-speed fabric bandwidth.
- • Processing & Memory
- Dual-core processor, 1 GB System RAM, 3 MB internal packet buffer, and up to 2 GB Flash.
- • MAC Address Capacity
- Up to 32,000 entries for highly accurate endpoint identification.
- • Packet Forwarding Rate
- Upgraded to 132 Mpps processing throughput.
- • Local Management Interface
- 1 × RJ45 console port, 1 × out-of-band management port, and 1 × active USB 2.0 interface.
