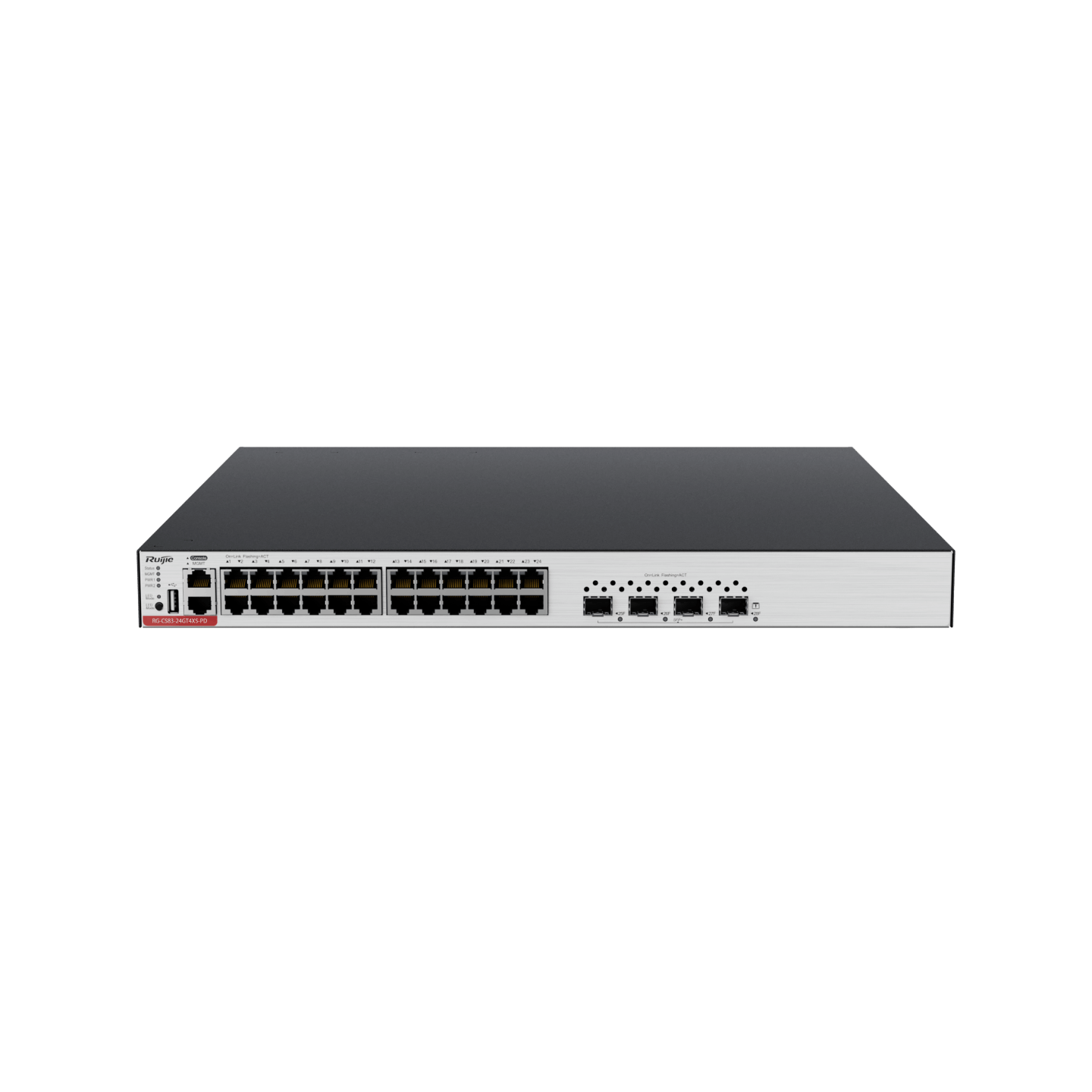

Ruijie RG-CS83-24GT4XS-PD
Features
- Core Highlight Features
- • Carrier-Class 1+1 Power Redundancy: The hot-swappable power bays allow you to replace or service a power supply module without turning off the switch, preventing costly network downtime.
- • Full Wire-Speed Layer 3 Routing: Handles complex internal IP networks via OSPF (v2/v3), BGP4+, IS-IS, Static Routing, RIP, and VRRP directly at the access layer.
- • VSU Virtualization Stacking: Allows up to 4 physical units to combine into a single logical device, providing millisecond-level link failover and centralized management.
- • Hardware-Level Dual-Boot: Protects against operating system corruption by maintaining a backup system ROM that takes over immediately if a firmware exception happens.
- • Free Ruijie Cloud Ecosystem: Supports remote app configuration, diagnostic tracking, and automated deployment using Self-Organizing Network (SON) discovery.
- • Multi-Layer Defensive Security: Implements Hardware CPU Protection Policy (CPP) to block CPU flood traffic, alongside Network Foundation Protection Policy (NFPP) and DHCP/ARP snooping to shut down rogue network manipulation.
- • Industrial Interface Protection: All copper ports feature built-in 10 kV surge lightning protection to defend the internal computing components from electrical shocks.
Specifications
- • Port Density
- 24 × 10/100/1000BASE-T RJ45 copper ports (all PoE/PoE+ capable) and 4 × 1G/10G SFP+ optical uplink slots.
- • Chassis Dimensions
- 442 mm × 420 mm × 43.6 mm (Standard 1RU but features a deeper depth to accommodate the hot-swappable power bays).
- • Switching Capacity
- 128 Gbps total wire-speed fabric bandwidth.
- • Processing & Memory
- Upgraded dual-core 1.2 GHz CPU, 1 GB System RAM, 3 MB packet buffer, and 2 GB Flash memory.
- • MAC Address Capacity
- Up to 32,000 entries.
- • Packet Forwarding Rate
- 96 Mpps high-efficiency forwarding.
- • Maximum PoE Power Budget
- Supports a massive total PoE output of up to 740W depending on the installed power modules.
- • Power Supply Architecture
- Equipped with 2 modular power slots on the rear panel supporting 1+1 hot-swappable redundancy. (Note: It requires at least one standalone power module to run, such as the RG-PA600I-P-F or RG-PA1000I-P-F).
