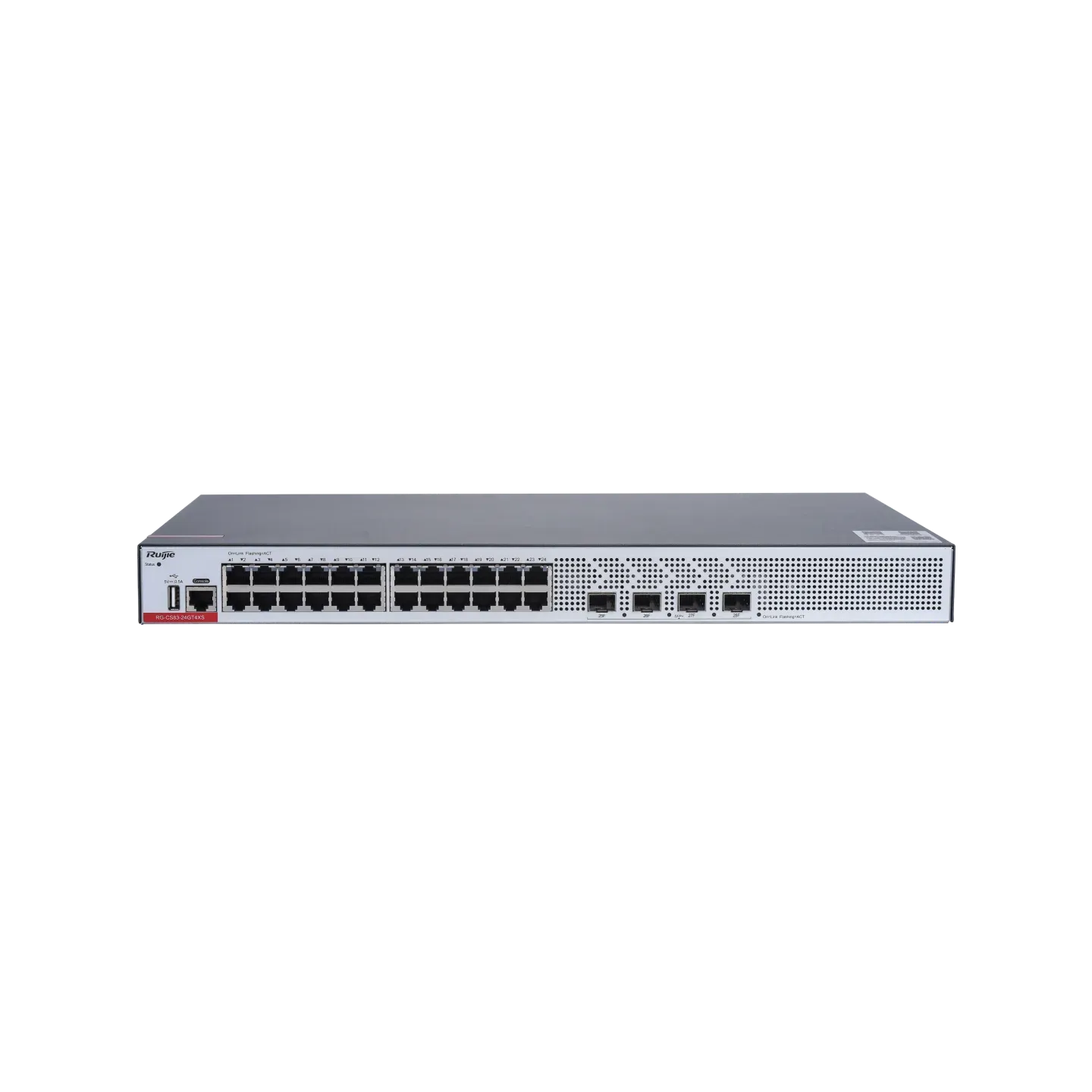

Ruijie RG-CS83-24GT4XS
Features
- Core Highlight Features
- • Enterprise Layer 3 Routing: Delivers wire-speed internal IP routing via OSPF (v2/v3), Static Routing, RIP, BGP, and VRRP for seamless VLAN segmentation.
- • VSU Virtualization Stacking: Allows up to 4 physical switches to blend into a single logical device, simplifying administration and creating link-level redundancy.
- • Dual-Boot System Redundancy: Equipped with a 1+1 Hardware BootROM setup that instantly recovers the switch using backup system software if a firmware corruption occurs.
- • Free Ruijie Cloud Integration: Fully manageable via the Ruijie Cloud Platform with Self-Organizing Network (SON) capability for instant zero-touch deployment.
- • Comprehensive CPU Protection (CPP): Isolates malicious data streams and limits packet flooding heading to the processor to prevent switch crashes.
- • Network Foundation Protection (NFPP): Blocks automated ARP attacks, IP spoofing, and rogue network requests directly at the access port level.
- • 10 kV Surge Lightning Protection: Industrial-grade hardware shielding on all RJ45 ports protects internal circuitry from severe power surges.
Specifications
- • Port Density
- 24 × 10/100/1000BASE-T RJ45 copper ports and 4 × 1G/10G SFP+ optical uplink slots.
- • Model Variants
- Available in Standard non-PoE, Fixed PoE+ (370W–405W), and Modular Redundant PoE+ (740W max via 1+1 hot-swappable power supplies).
- • Management Ports
- 1 × RJ45 console port, 1 × dedicated RJ45 out-of-band management port, and 1 × USB 2.0 port.
- • Switching Capacity
- 128 Gbps total fabric bandwidth.
- • Chassis Form Factor
- Standard 1RU rackmount unit with a short depth of 220 mm for tight server enclosures.
- • Processing & Memory
- Powered by a dual-core processor, 1 GB RAM, and up to 2 GB Flash.
- • MAC Address Capacity
- Up to 32,000 entries for massive endpoint scale.
- • Packet Forwarding Rate
- 96 Mpps wire-speed performance.
