Networking

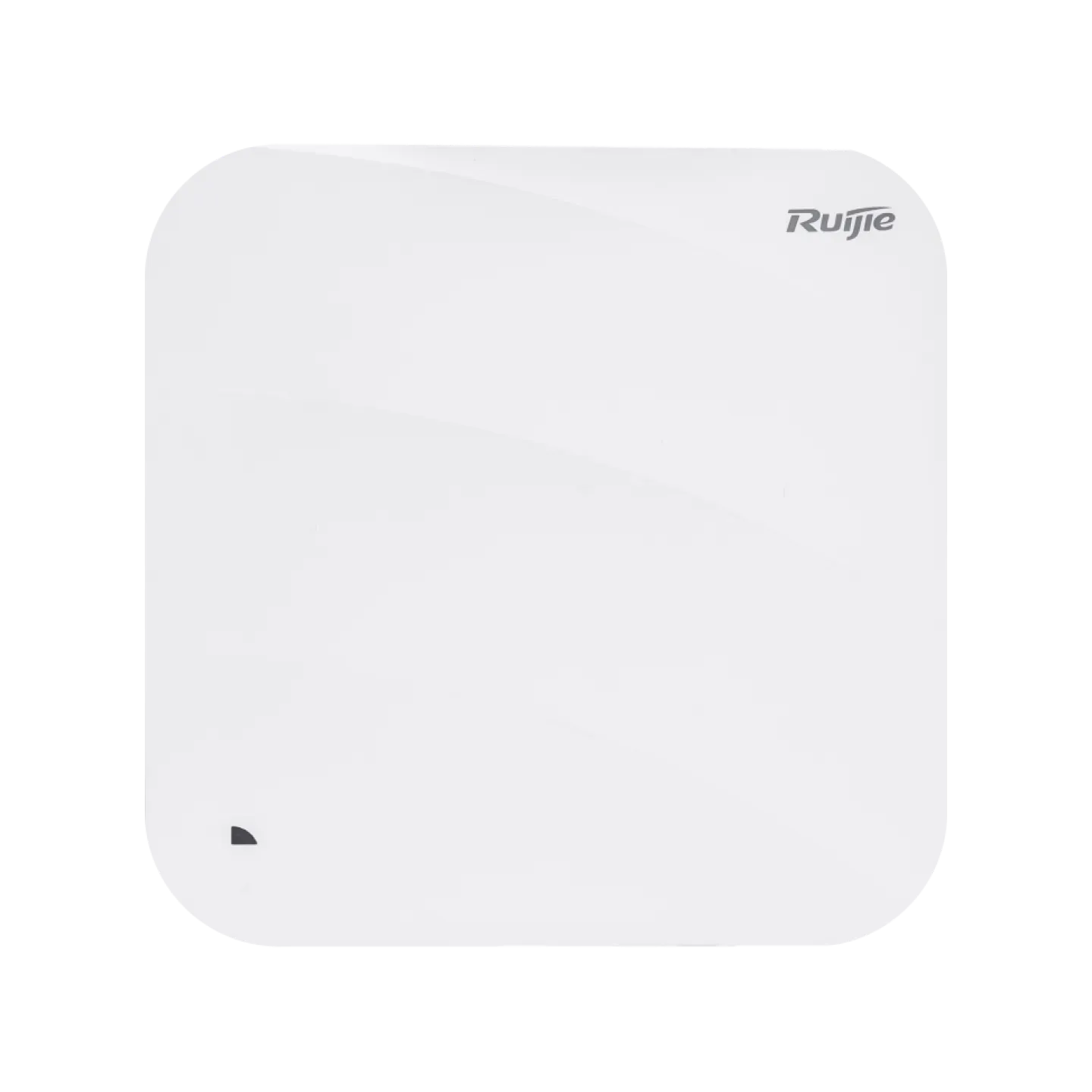

Ruijie RG-AP880-L
Features
- • 6 GHz Wi-Fi 6E Clean Spectrum: Harnesses clean 6 GHz airwaves to bypass co-channel interference from legacy devices. It provides massive, uninterrupted lanes optimized for data-heavy corporate traffic.
- • Multi-Gigabit Port Aggregation: Features native 5G copper and 5G SFP fiber backhaul interfaces. This design protects the corporate core from experiencing physical wire constraints, even when hundreds of multi-gig wireless clients are downloading data concurrently.
- • Integrated Downstream PSE Power Output: Includes an downstream Gigabit Ethernet interface capable of acting as a Power Sourcing Equipment (PSE) node to supply localized power directly to standalone IoT hardware or environmental endpoints.
- • 8-Stream Congestion Handling: Merges OFDMA and 4x4 MU-MIMO spatial sub-channelization over its 6 GHz engine. This setup lets the AP communicate with dozens of user devices on the exact same millisecond without dropping downstream packet blocks.
- • Enterprise Management & Protection: Runs across Fat, Fit, and Cloud management layers with unified ease. It comes standard with high-tier data protection metrics, including WPA3 Encryption standards, Dynamic Captive Portals, dynamic access filters, and private network virtualization schemas.
Specifications
- • Power Supply
- 54V DC or PoE/PoE+/PoE++ (802.3af/at/bt)
- • Antenna System
- Built-in 5 dBi omnidirectional antennas
- • Client Capacity
- Up to 1,536 max clients (Recommended active load: 300 concurrent devices)
- • Radio 2 (5 GHz)
- 2x2 MU-MIMO (Up to 2.402 Gbps)
- • Radio 3 (6 GHz)
- 4x4 MU-MIMO (Up to 4.804 Gbps)
- • Onboard Bluetooth
- Bluetooth 5.1 (For location tracking and IoT expansions)
- • Power Consumption
- Peak capacity ≤ 40 Watts
- • Radio 1 (2.4 GHz)
- 2x2 MU-MIMO (Up to 574 Mbps)
- • Maximum Throughput
- Combined peak data rate of 7.780 Gbps
- • Wireless Standards
- IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
- • Dimensions & Weight
- 230 mm × 230 mm × 51 mm; 1.0 kg
- • Radio Configuration
- Tri-Radio design supporting up to 8 spatial streams simultaneously:
- • Fixed Interface Ports
