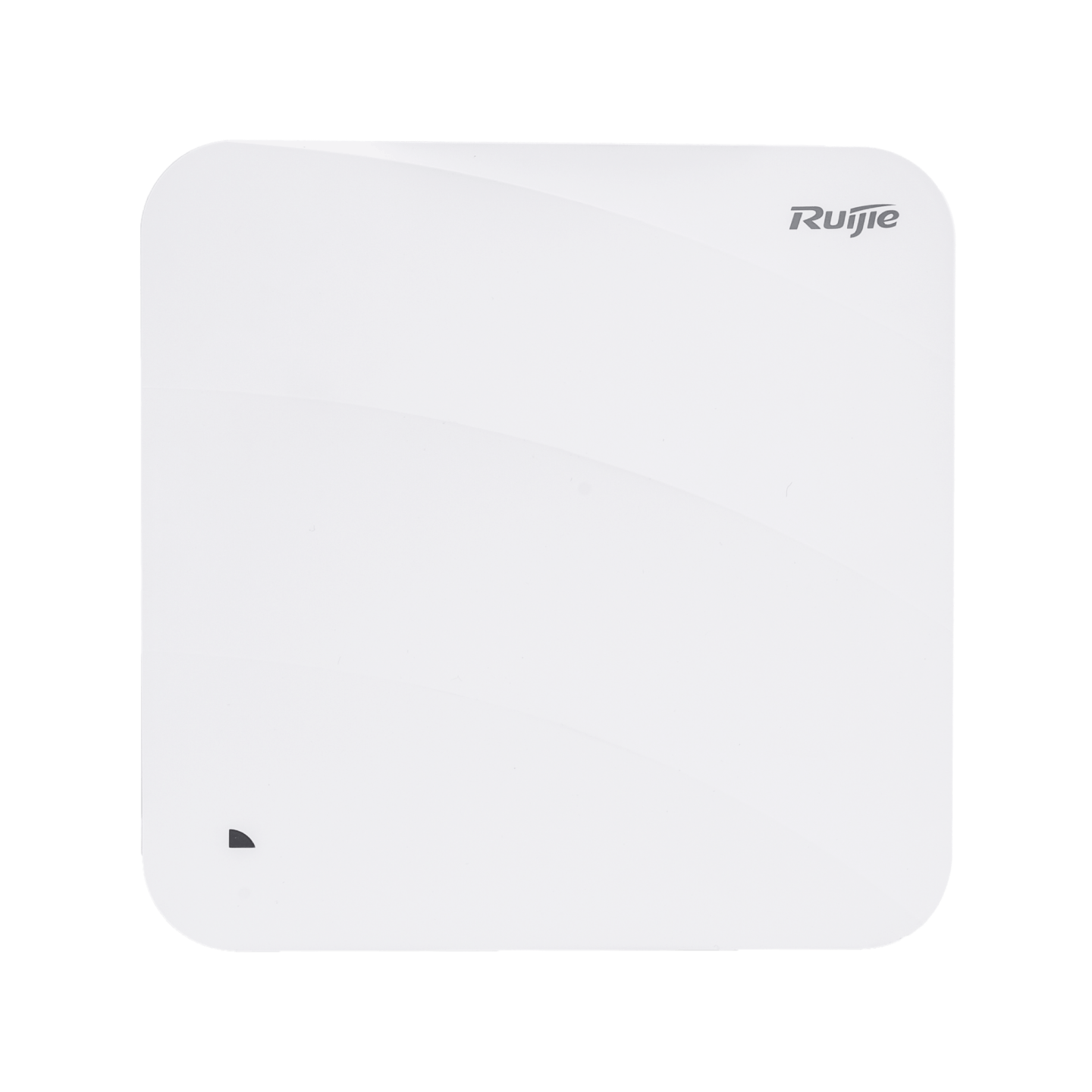

Ruijie RG-AP820-L(V3)
Features
- • Direct Fiber Uplink Connection: The addition of the 2.5G SFP port makes it ideal for large corporate centers, campus layouts, and high-rise developments where copper ethernet runs exceed 100 meters.
- • High-Speed HE160 Performance: Utilizes 160 MHz channel bandwidth on the 5GHz frequency band to accelerate connection speeds for high-bandwidth user activities like massive video rendering or data transfers.
- • AI Wireless Optimization: Built to interface with Ruijie's WIS AI Engine, allowing for one-click automatic RF adjustments, channel calibration, and coverage troubleshooting directly from the cloud backend.
- • Flexible Hybrid Architecture: Supports standard Fat, Fit, and Cloud operating profiles. It can easily scale up from standalone cloud-managed SMB units to multi-site large enterprise installations managed via a physical controller.
- • Hardened Security Profiles: Fully compatible with comprehensive WPA3-Personal and Enterprise encryption modes, private pre-shared keys (PPSK), voucher logins, dynamic client isolation, and Wireless Intrusion Detection Systems (WIDS).
Specifications
- • 5 GHz
- Up to 2.402 Gbps (supporting HE160 wide channels)
- • 2.4 GHz
- Up to 574 Mbps
- • Power Supply
- 802.3af Power over Ethernet (PoE) via the RJ45 port or Local 48V DC input (Max consumption: 12.95 W)
- • Antenna System
- Built-in omnidirectional smart antennas with 5 dBi gain
- • Client Capacity
- Max 256 associated clients (Recommended active load: 120 concurrent devices)
- • Onboard Bluetooth
- Bluetooth 5.1 (IoT and iBeacon ready)
- • Maximum Throughput
- Combined peak rate of 2.976 Gbps (AX3000)
- • Wireless Standards
- IEEE 802.11a/b/g/n/ac/ax
- • Dimensions & Weight
- 220 mm × 220 mm × 49 mm; 0.6 kg
- • Radio Configuration
- Dual-radio, dual-band (2.4 GHz 2x2 MIMO and 5 GHz 2x2 MIMO) with 4 spatial streams
- • Physical Interface Ports
