Networking

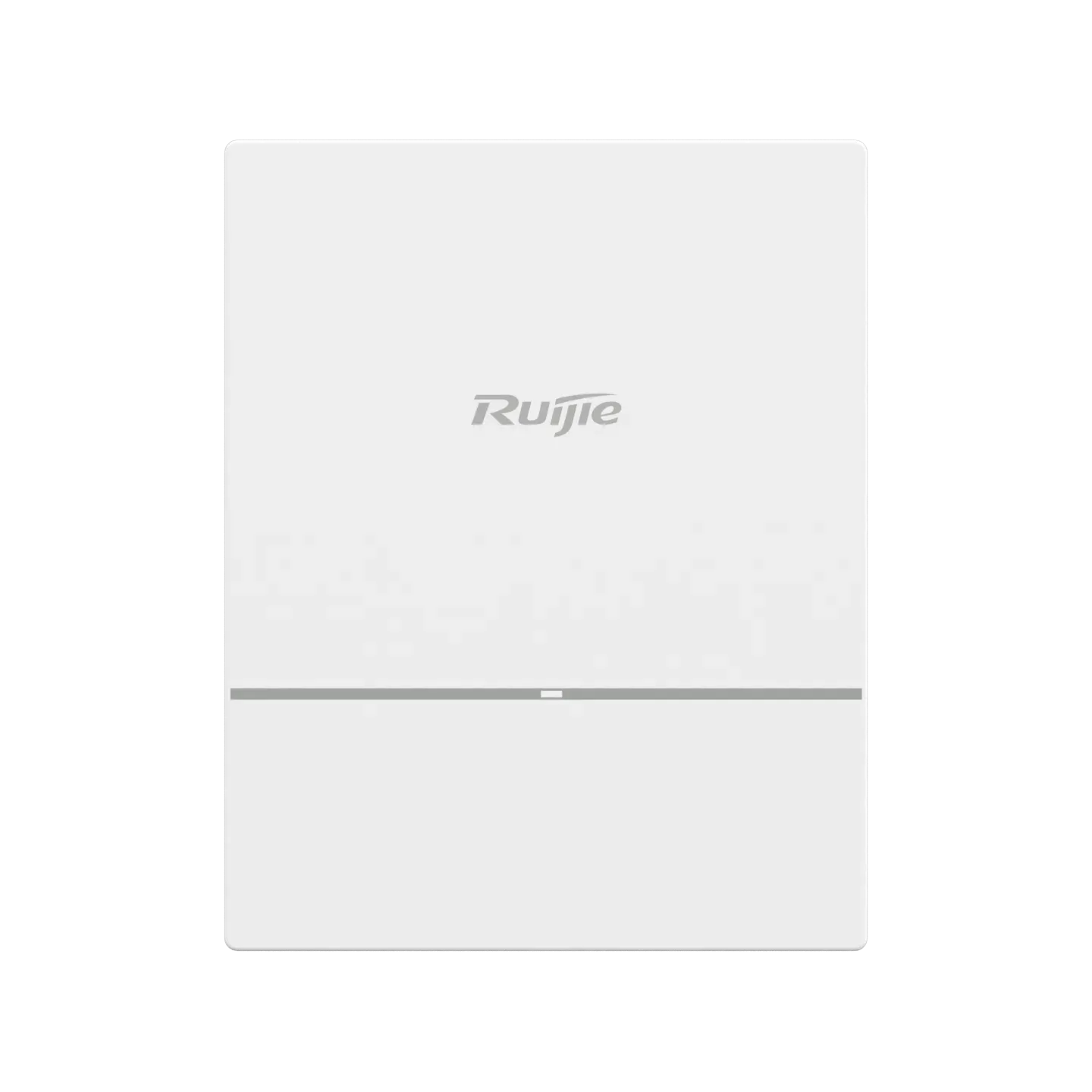

Ruijie RG-AP820-L(V2)
Features
- • Flexible 5G + 5G Dual Radio: Allows administrators to convert the standard 2.4GHz radio into a second 5GHz radio. This eliminates slow legacy bands and nearly doubles throughput inside environments where all client devices support 5GHz.
- • Wi-Fi 6 Efficiency Optimization: Incorporates OFDMA, MU-MIMO, and BSS Color Spatial Reuse technologies. These tools minimize multi-user packet collisions and reduce co-channel signal interference in crowded airspace.
- • Hybrid Management Engine: Automatically detects if it should run in Fat (Standalone) or Fit (Controlled) firmware modes on boot. It natively integrates with local hardware wireless controllers, private clouds, or Ruijie Public Cloud Management platforms.
- • Advanced Security Suite: Built to handle WPA3 Encryption guidelines. It supports captive portals, isolated guest subnets, RADIUS/802.1X enterprise logins, and integrated Wireless Intrusion Detection Systems (WIDS)
Specifications
- • Power Supply
- 802.3af PoE or Local 48V DC input (Max consumption: 12.95 W)
- • SSID Support
- Up to 32 ESSIDs with 802.1Q VLAN tagging
- • Antenna Setup
- Built-in smart omnidirectional antennas with 5 dBi gain
- • Physical Ports
- • Client Capacity
- Tolly-certified to support up to 1,024 maximum associated clients (Recommended active load: 120 concurrent devices)
- • Onboard Bluetooth
- Bluetooth 5.0 (IoT Ready)
- • Maximum Throughput
- • Wireless Standards
- IEEE 802.11a/b/g/n/ac/ax
- • Dimensions & Weight
- 153 mm × 193 mm × 26 mm; 0.42 kg
- • Radio Configuration
- Selectable Dual-Band Dual-Radio (either 2.4 GHz + 5 GHz or 5 GHz + 5 GHz) with 4 spatial streams
- • Standard Mode (2.4G + 5G)
- Up to 1.775 Gbps (574 Mbps at 2.4GHz + 1.201 Gbps at 5GHz)
- • High-Performance Mode (5G + 5G)
- Up to 2.402 Gbps (2 × 1.201 Gbps)
