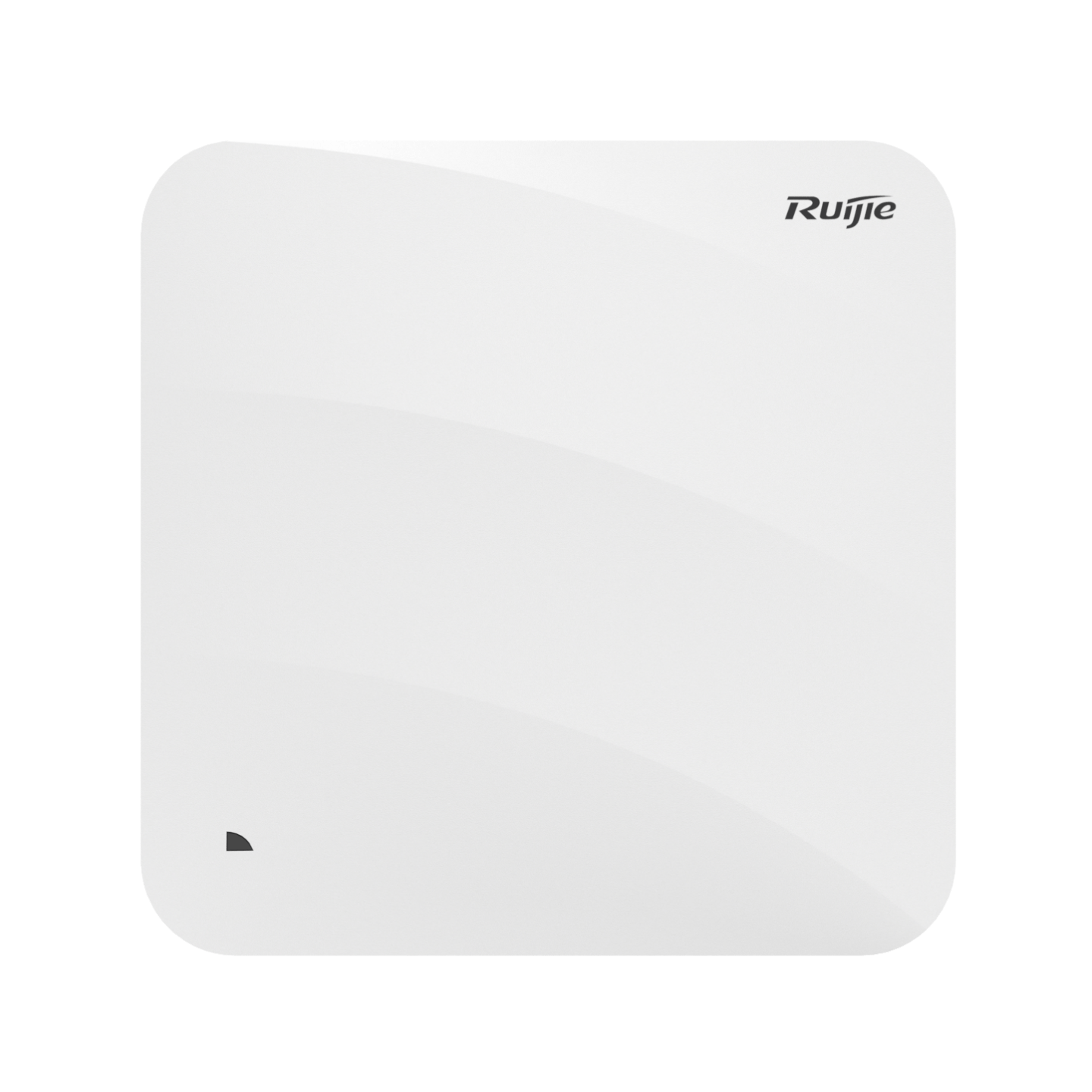

Ruijie RG-AP810-L
Features
- • Advanced Wi-Fi 6 Capabilities: Implements standard 1024-QAM modulation and OFDMA technology to dramatically maximize multi-user performance, reduce spectral congestion, and slash system latency.
- • Intelligent Seamless Roaming: Leverages 802.11k/v/r wireless protocols. This ensures mobile clients shift across overlapping AP cells efficiently without dropping packets, breaking active voice calls, or disconnecting VPN tunnels.
- • Hybrid Mode Management Flexibility: Supports unified operation across Fat (standalone), Fit (hardware Wireless Controller managed), and Ruijie Cloud mode architectures. The AP autodetects its deployment environment on boot without needing a manual firmware re-flash.
- • Enterprise-Grade Wireless Security: Fully updated for modern security frameworks, supporting WPA3-Personal (SAE) and WPA3-Enterprise standards. It natively accommodates dynamic network segmentation, web portal logins, and secure guest isolation metrics via Ruijie Cloud integration.
Specifications
- • 5 GHz
- Up to 1.201 Gbps (HE80)
- • 2.4 GHz
- Up to 574 Mbps
- • Antenna Type
- Built-in omnidirectional antennas
- • Max Throughput
- Aggregated peak data rate of 1.775 Gbps
- • Physical Ports
- • Client Capacity
- Supports up to 256 maximum associated clients (recommended active load: 64 to 120 concurrent devices)
- • Onboard Bluetooth
- Bluetooth 5.1
- • Radio Architecture
- Dual-radio, dual-band (2.4 GHz 2x2 MIMO & 5 GHz 2x2 MIMO) delivering up to 4 spatial streams
- • Wireless Standards
- IEEE 802.11a/b/g/n/ac/ax
- • Dimensions & Weight
- 220 mm × 220 mm × 49 mm; 0.6 kg
- • Power Supply Options
- 802.3af PoE or Local 48V DC power (max power consumption: 12.95 W)
