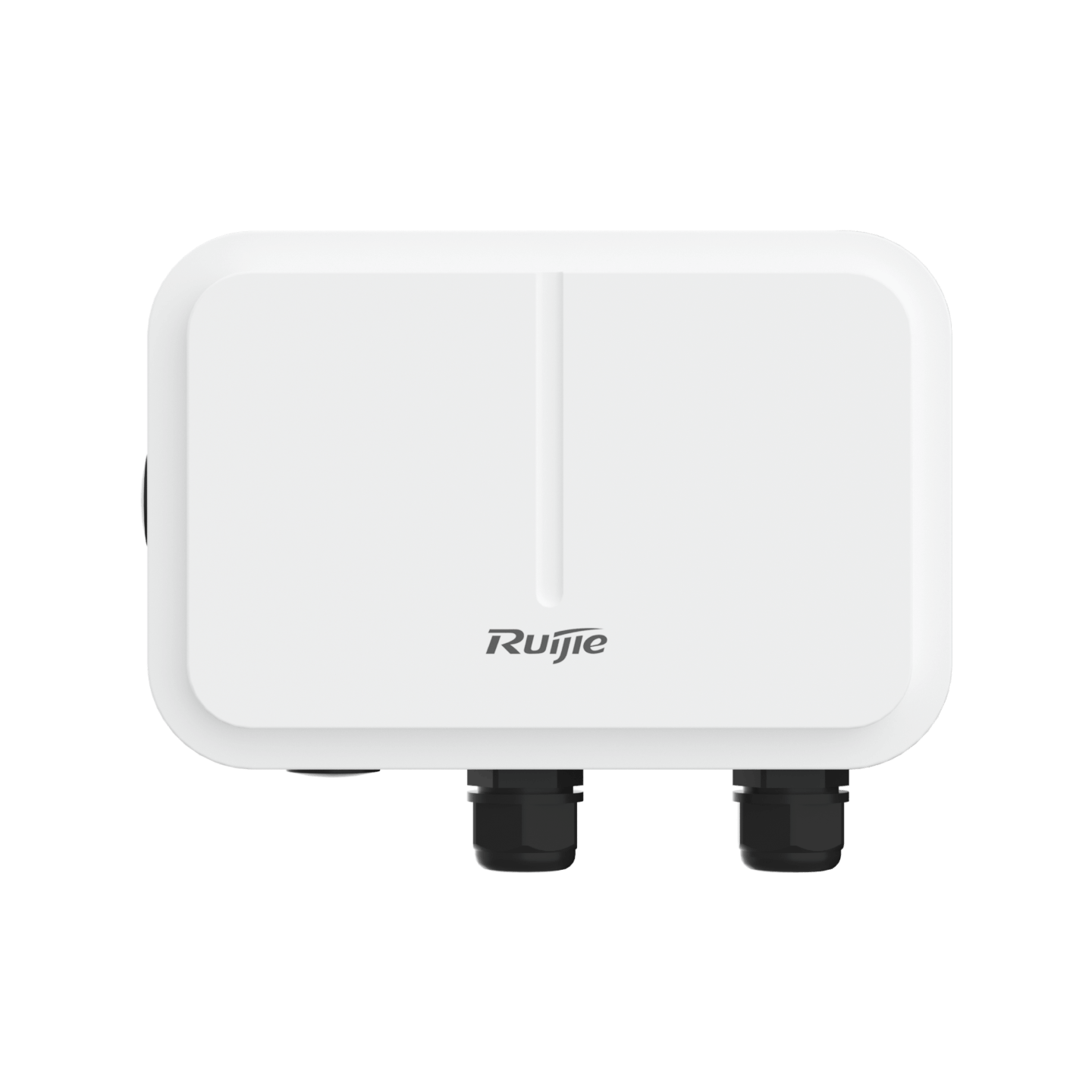

Ruijie RG-AP680(CD)
Features
- • Flexible Dual-Uplink Networking: Features both electrical Ethernet and optical SFP ports operating simultaneously, ensuring resilient backup options and versatile deployments over long-distance fiber.
- • Wireless Mesh Bridging: Natively supports wireless multi-hop and point-to-multipoint bridging to safely extend Wi-Fi coverage across sprawling industrial areas, campuses, or energy sectors without laying local data lines.
- • Advanced RF Optimization: Built with standard Wi-Fi 6 technologies including OFDMA, MU-MIMO, and BSS Coloring to diminish cross-signal interference and maximize resource scheduling.
- • Hybrids Operating Architecture: Supports standalone Fat, hardware-controller based Fit, or Cloud deployment layouts depending on your underlying networking framework.
- • Central Management Ecosystem: Managed completely for free through Ruijie Cloud for instant, app-based network optimization, monitoring, and remote configuration.
Specifications
- • Console
- 1 x RJ45 console port.
- • Bluetooth
- Built-in Bluetooth 5.0.
- • Fiber Uplink
- 1 x 1GE SFP optical port (upgraded to a 2.5GE SFP port on the RG-AP680-CD(V3) model).
- • Wired Network
- 1 x 10/100/1000BASE-T Ethernet port with standard PoE input.
- • Client Handling
- Supports up to 1024 associated clients with a recommended performance threshold of 120 active concurrent users.
- • Power Parameters
- Powered via 48V DC local power or standard IEEE 802.3af/at PoE, running on a highly efficient 12.95W maximum consumption.
- • Built-in Antennas
- Equipped with high-gain 9 dBi intelligent directional antennas.
- • Environmental Survival
- Fully weatherproofed IP68 enclosure, 9 kV surge protection, and an operating temperature tolerance from –40°C to +65°C.
- • Physical Interface Ports
- • Wireless Speed & Capacity
- 4 spatial streams providing up to 2.402 Gbps combined peak throughput (when configured for 5 GHz + 5 GHz dual-radio mode) or 1.775 Gbps (when configured for standard 2.4 GHz + 5 GHz mode).
