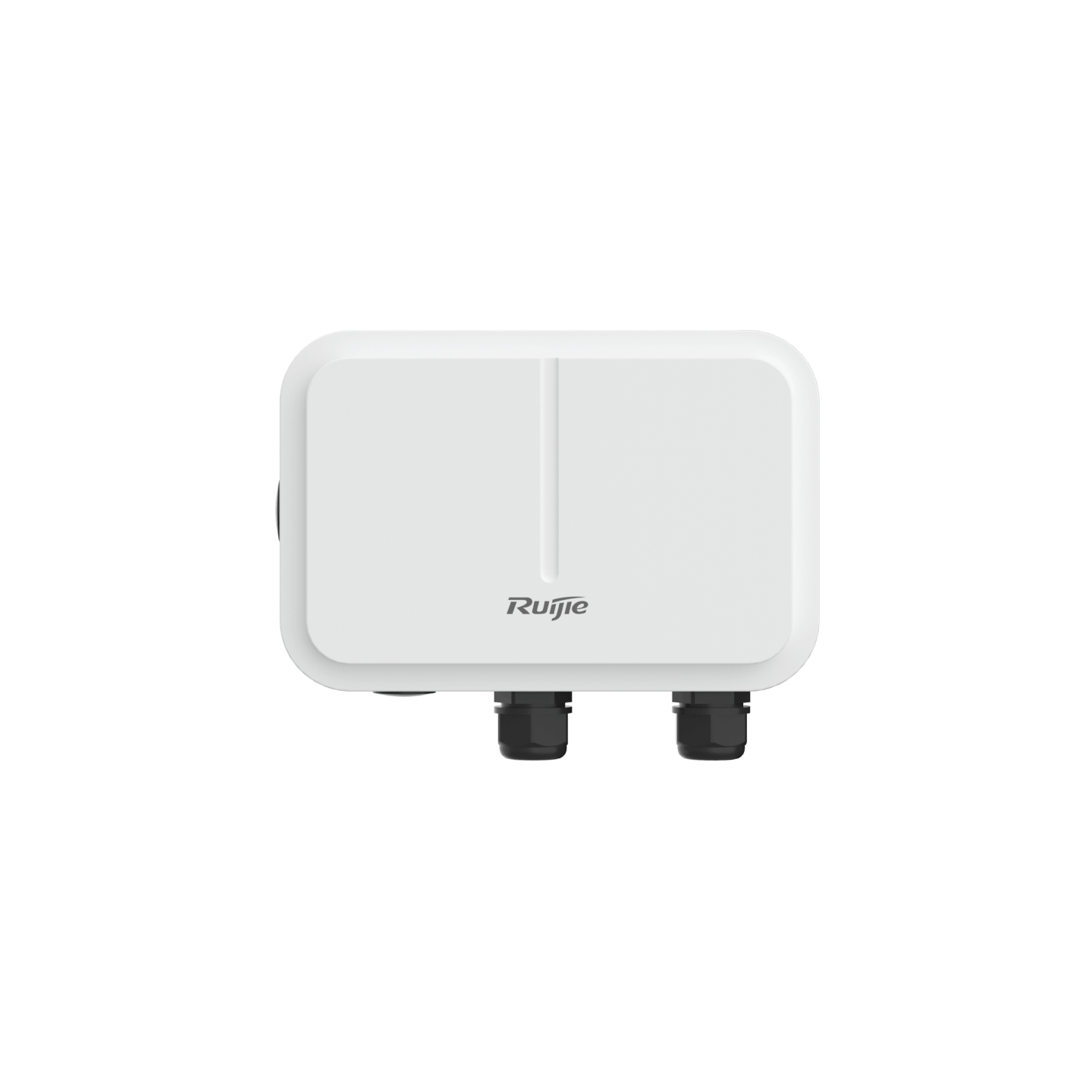

Ruijie RG-AP680-L
Features
- • 360° Open Space Coverage: Optimized specifically for settings where clients are dispersed uniformly in all directions, removing the strict directional alignment requirements of the standard (CD) version.
- • Fiber and Copper Redundancy: Supports dual backhaul methods over copper LAN or long-range SFP fiber optic cabling, facilitating safe deployment away from core distribution switches.
- • Adaptive Wireless Routing: Uses smart multi-hop wireless mesh networking to link multiple APs across fields, minimizing the need to trenches or run new physical lines.
- • Tri-Mode Flexible Management: Switches between Fat (standalone), Fit (on-premise hardware controller), or Cloud architectures easily without needing a physical firmware flash.
- • Cloud System Integration: Connects straight to the lifetime-free Ruijie Cloud App & Portal for zero-touch configuration, remote diagnostic tools, automated radio optimization, and rogue AP detection.
Specifications
- • Console
- 1 x RJ45 console/reset port.
- • Bluetooth
- Integrated Bluetooth 5.0 radio.
- • Fiber Uplink
- 1 x 1GE SFP optical port for long-distance optical backhaul.
- • Antenna Array
- Integrated high-power 360° omnidirectional intelligent antennas (3.5 dBi at 2.4 GHz, 5.5 dBi at 5 GHz) providing extensive line-of-sight coverage up to a 100-meter radius.
- • Wired Ethernet
- 1 x 10/100/1000BASE-T uplink port with standard PoE/PoE+ input.
- • Power Efficiency
- Runs via 48V DC local power or standard PoE/PoE+ (802.3af/at) with an exceptionally low maximum power consumption of 12.95W.
- • Client Scalability
- Supports a maximum of 1024 concurrent client links, with a recommended performance threshold of up to 120 active users.
- • Wireless Throughput
- Total combined rate of up to 2.976 Gbps (2.402 Gbps on 5 GHz and 574 Mbps on 2.4 GHz) across 4 total spatial streams.
- • Physical Interface Ports
- • Extreme Environmental Protection
- Heavy-duty IP68 dustproof and waterproof enclosure with an anti-corrosion/salt-spray finish. Supports 6 kV lightning protection and functions smoothly in temperatures ranging from –40°C to +65°C.
