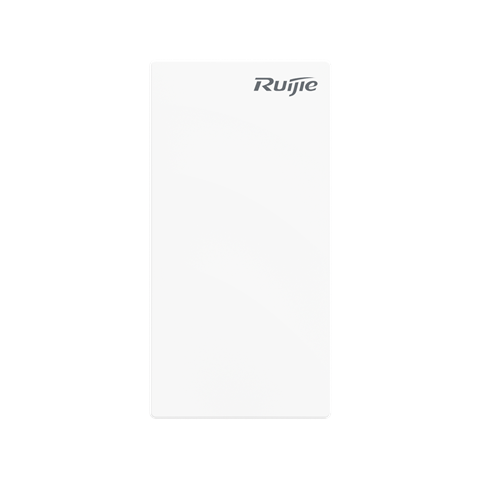

Ruijie RG-AP180P-L
Features
- • Eliminated Uplink Bottlenecks: The 2.5 Gbps Multi-Gigabit wired uplink ensures that the backhaul connection doesn't bottleneck the combined 2.976 Gbps Wi-Fi 6 capacity.
- • Advanced Multi-User Efficiency: Leverages OFDMA, 2x2 MU-MIMO, and 1024-QAM to decrease airtime competition, reduce latency, and stabilize dense deployments.
- • Flexible Operating Modes: Operates natively in Fat, Fit, or Cloud modes, meaning it can be managed independently, via a hardware wireless Access Controller (AC), or via the web.
- • Free Centralized Management: Fully integrated with lifetime-free Ruijie Cloud remote monitoring, network optimization, and mobile app configuration.
- • Enterprise Security: Provides WPA3 encryption, 802.1X authentication, secure client access control, and seamless Layer 2/3 roaming.
Specifications
- • Uplink
- 1 x 100/1000/2.5GBASE-T RJ45 port (PoE/PoE+ input).
- • Capacity
- Supports up to 256 max associated clients (with a recommended load of up to 120 active concurrent devices) and 32 BSSIDs.
- • Downlink
- 4 x 10/100/1000BASE-T RJ45 LAN ports.
- • Bluetooth
- Built-in Bluetooth 5.1 radio.
- • Wi-Fi Speed
- Dual-radio AX3000 chip delivering up to 2.402 Gbps on 5 GHz (with 160 MHz bandwidth) and 574 Mbps on 2.4 GHz.
- • Power Supply
- Supports 48V DC/0.6A or standard PoE/PoE+ (802.3af/at) with a maximum power consumption of 25W.
- • Physical Ports
- • PoE Passthrough
- LAN1 port supports PoE Out (48V/10W PSE) to directly power IP phones, IoT modules, or smart devices.
- • Dimensions & Mounting
- Measures 86 mm x 170 mm x 43 mm. It features a flat rear panel optimized for standard 86mm, EU, and US junction boxes.
