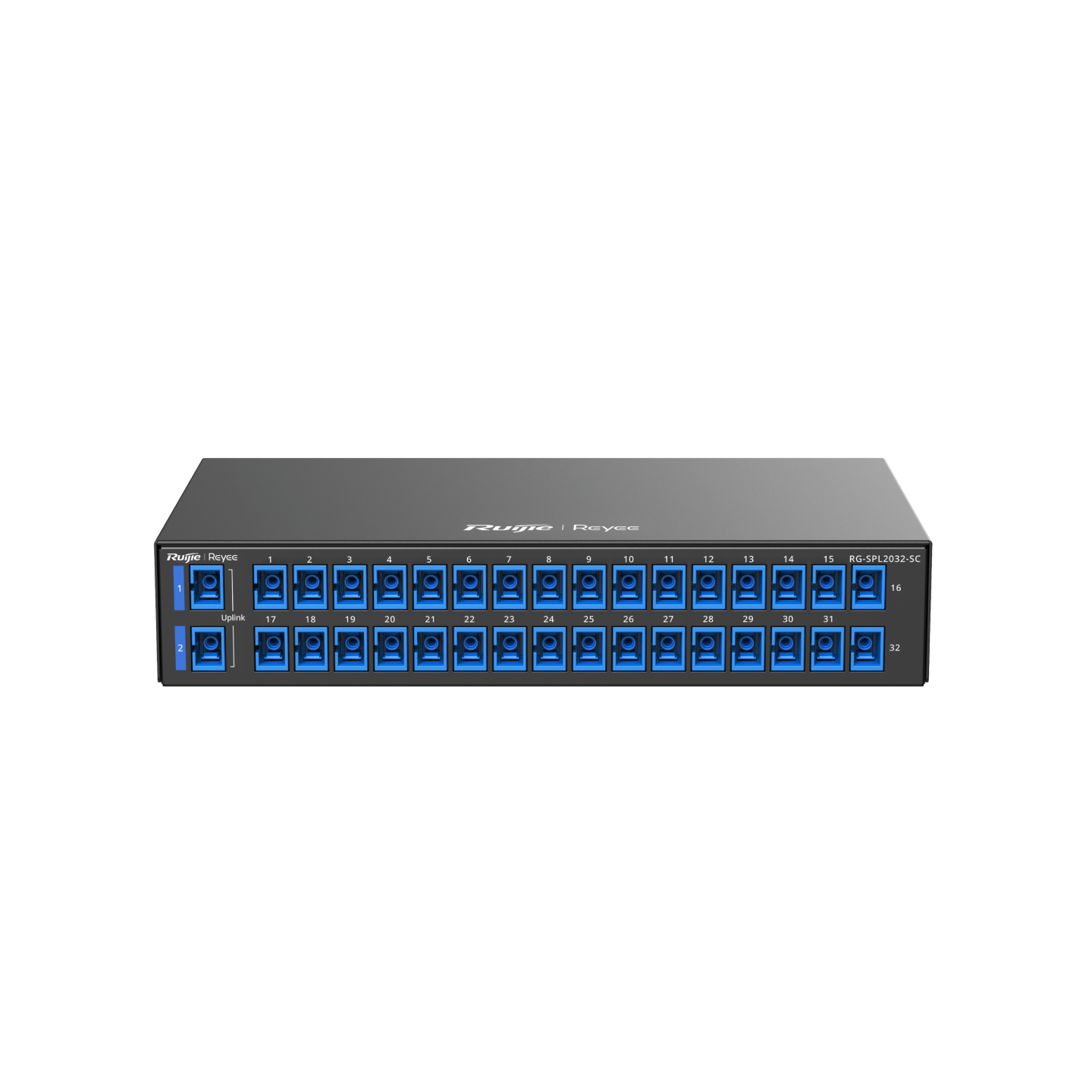

Ruijie Reyee RG-SPL2032-SC

Specifications

• Weight

0.98 kg.

• Return Loss

≥ 50 dB.

• Power Supply

Completely passive with 0W power consumption, needing no external electrical supply.

• Insertion Loss

≤ 17.7 dB.

• Port Uniformity

≤ 1.5 dB (ensures equal signal strength distribution across all 32 connections).

• Port Configuration

2 × SC uplink ports and 32 × SC downlink ports. (Caution: Only one uplink optical port should be active at a time to prevent packet looping and network abnormalities).

• Form Factor & Build

Compact, robust iron metal chassis. It supports flexible deployment options including desktop, wall-mounting, or rack-mounting.

• Physical Dimensions

220 mm × 130 mm × 42 mm.

• Operating Wavelength

Supports wide-band performance across 1260 nm to 1650 nm.
