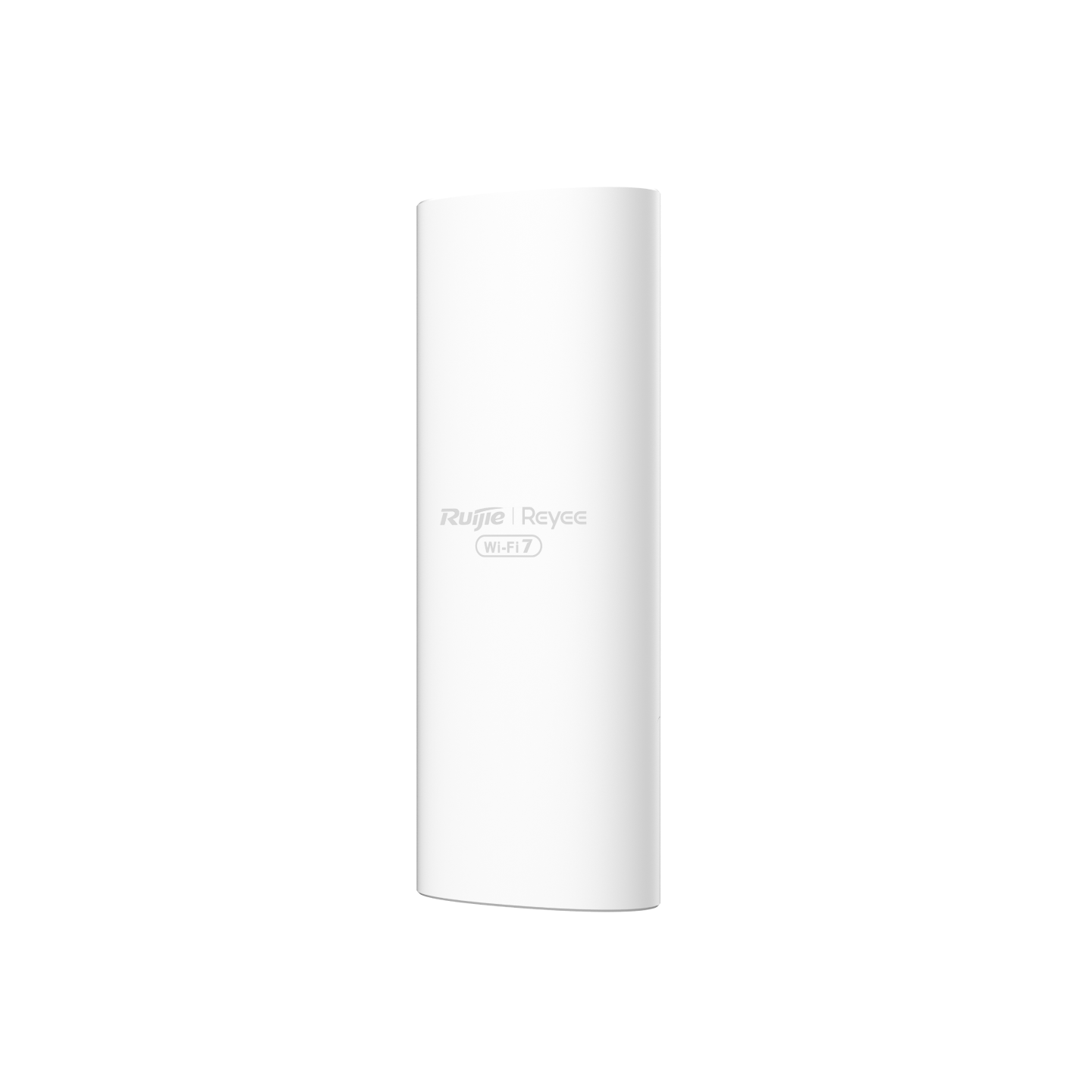

Ruijie Reyee RG-RAP72Pro-OD

Specifications

• IP Rating

IP65 weather and dust resistance

• 5 GHz Band

Up to 4,323 Mbps (supports 160 MHz channel width, 4K-QAM, and Puncturing technique)

• Form Factor

Highly compact "versatile" footprint at 90 mm x 46 mm x 239 mm (excluding the mounting bracket)

• 2.4 GHz Band

Up to 688 Mbps

• Antenna Gain

3.62 dBi on 2.4 GHz and 6.28 dBi on 5 GHz

• Antenna Design

3 Built-in omnidirectional internal antennas enhanced by advanced eFEM technology

• Captive Portal

Built-in standalone cloud portal authentication capability

• Coverage Range

Up to 150 meters outdoors and 50 meters indoors under recommended deployment environments

• Power Delivery

Powered via PoE+ 802.3at injection

• Wi-Fi Standard

Wi-Fi 7 (IEEE 802.11be), fully backward compatible with Wi-Fi 6, 5, and older standards

• Memory & Storage

512 MB RAM / 256 MB Flash memory

• Management System

Local Web GUI configuration or remote administration via the lifetime-free Ruijie Cloud app and platform.

• MIMO Configuration

Dual-radio, 5 spatial streams

• Network Capabilities

Built-in AI-powered Roaming for seamless hardware-to-hardware client handoffs and wireless Reyee Mesh network scaling

• Wi-Fi 7 Technologies

Supports Multi-Link Operation (MLO) for concurrent band data transfers, minimizing wireless latency and increasing reliability.

• Maximum Wireless Speed

5,011 Mbps combined total throughput

• Operating Temperatures

Built for severe climates, running from -30°C to +65°C (-22°F to 149°F)

• Physical Interface Ports

1 x 2.5 GbE (Multi-Gigabit) Base-T Ethernet uplink port
