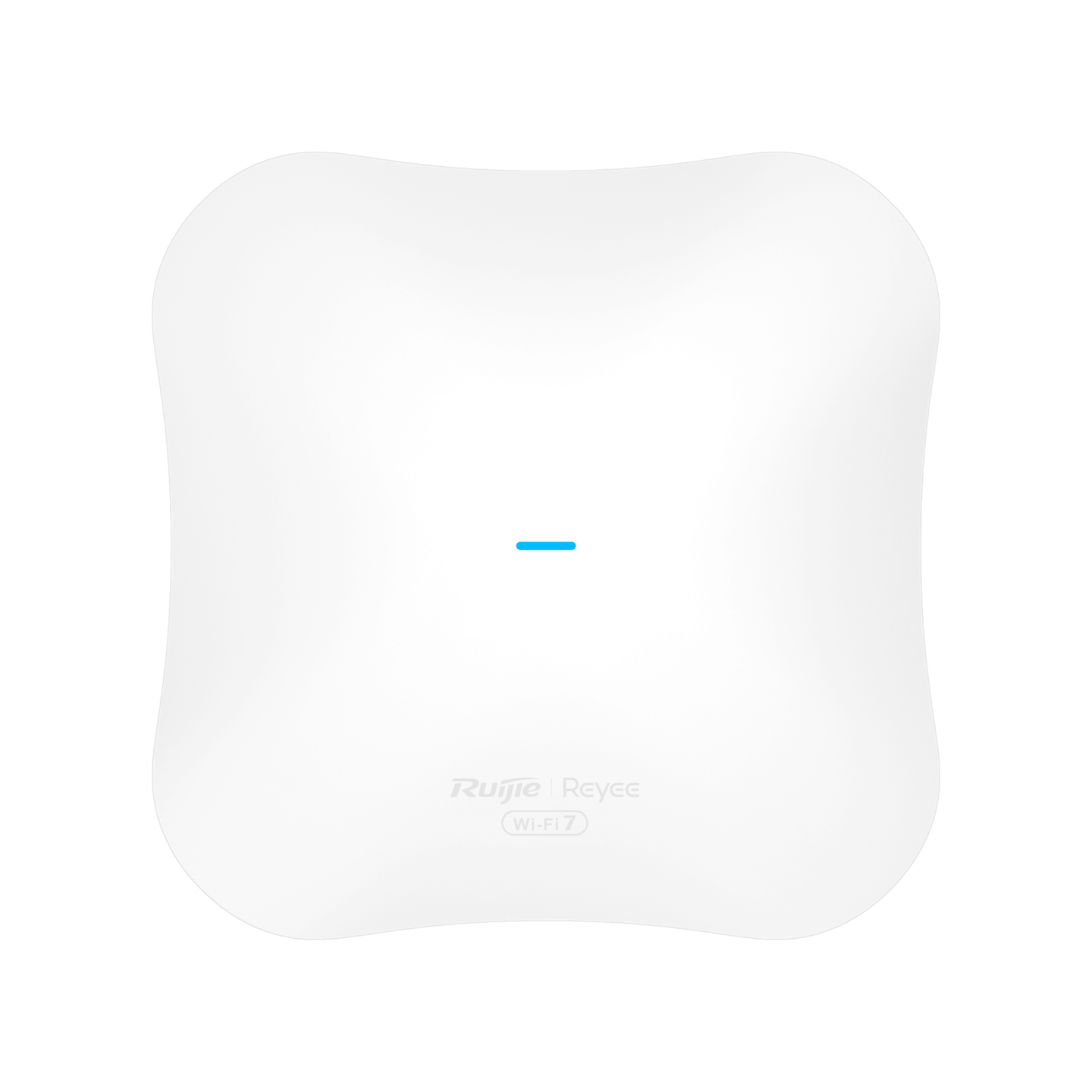

Ruijie Reyee RG-RAP72Pro
Specifications
- • Note
- Dual-band design only; does not include a 6 GHz radio.
- • 5 GHz
- 3×3 MU-MIMO
- • 4K-QAM
- Denser data transmission compared to Wi-Fi 6's 1024-QAM for significantly lower latency.
- • Weight
- ≤ 0.75 kg (without mounting bracket)
- • 2.4 GHz
- 2×2 MU-MIMO
- • IP Rating
- IP41 (Indoor ceiling/wall mount)
- • 5 GHz Band
- 4,323 Mbps (supports 160MHz channel bandwidth)
- • Dimensions
- 208 mm × 208 mm × 40 mm
- • 2.4 GHz Band
- 688 Mbps
- • Network Ports
- • Power Options
- • Wi-Fi Standard
- Wi-Fi 7 (IEEE 802.11be) and backward compatible with Wi-Fi 4/5/6 (802.11a/b/g/n/ac/ax)
- • Client Capacity
- Can accommodate up to 511 concurrent devices (supports up to 300 cloud-managed devices)
- • DC Power Supply
- 12 V / 2.5 A DC local input
- • Max Wireless Rate
- 5,011 Mbps (5.01 Gbps / BE5040 Class)
- • MIMO Configuration
- Dual-radio with 5 Spatial Streams
- • Max Power Consumption
- 30 W
- • Exclusive Wi-Fi 7 Features
- Multi-RU (Resource Unit), Preamble Puncture, and 4096-QAM for ultra-high reliability and extreme density efficiency.
- • MLO (Multi-Link Operation)
- Aggregates the 2.4 GHz and 5 GHz bands simultaneously for faster and more stable throughput.
- • PoE+ (Power over Ethernet)
- Compliant with IEEE 802.3at standard
