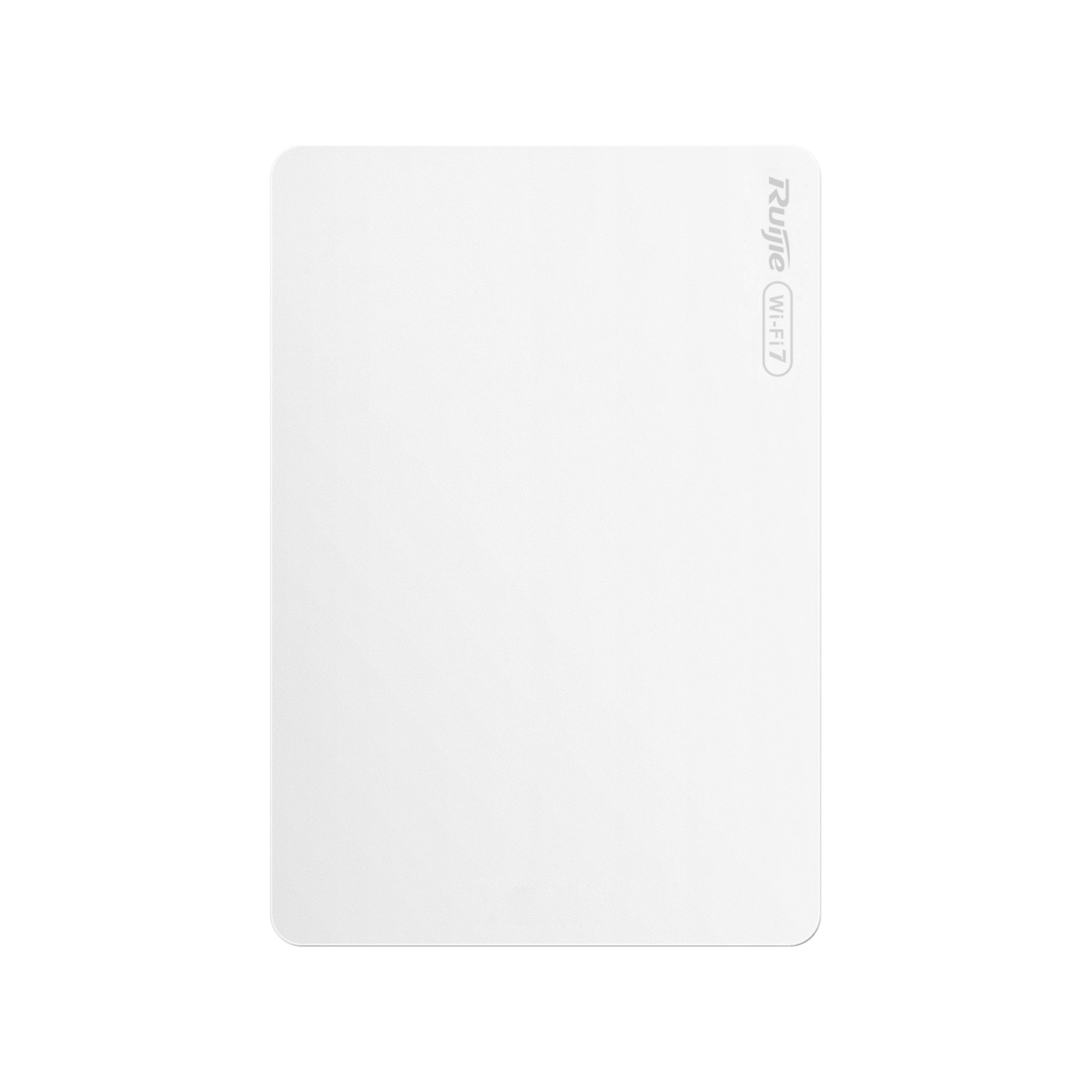

Ruijie Reyee RG-RAP72-Wall

Specifications

• Uplink

1 × 10/100/1000/2500BASE-T (2.5G Multi-Gigabit) port (located on the rear for PoE In)

• Weight

≤ 0.27 kg (without packaging or mounting bracket)

• IP Rating

IP41 (Indoor environment ready)

• 5 GHz Band

Up to 2,882 Mbps (supports up to 160MHz channel bandwidth)

• Dimensions

86 mm × 24 mm × 124 mm (Ultra-slim 24 mm profile)

• Management

Full cloud orchestration via the Ruijie Cloud Platform or Reyee App, featuring WIO (Wi-Fi Intelligent Optimization) and AI seamless roaming.

• 2.4 GHz Band

Up to 688 Mbps

• Antenna Type

Built-in omnidirectional antennas (Gain: 2.84 dBi on 2.4 GHz, 4.56 dBi on 5 GHz)

• Network Ports

(Multi-Gigabit Uplink to prevent wireless-to-wired bottlenecks)

• Power Options

• Downlink / LAN

4 × 10/100/1000BASE-T (Gigabit) LAN ports (located on the bottom, with one port supporting PoE Out)

• Wi-Fi Standard

Wi-Fi 7 (IEEE 802.11be) and backward compatible with Wi-Fi 4/5/6 (802.11a/b/g/n/ac/ax)

• Client Capacity

Accommodates a maximum of 511 concurrent clients (64 clients on 2.4 GHz, 511 clients on 5 GHz)

• PoE / PoE+ Input

Powered via the rear 2.5G connection (Compliant with IEEE 802.3af/at)

• Max Wireless Rate

Up to 3,570 Mbps (3.57 Gbps / BE3600 Class)

• Physical Security

Integrated anti-theft lock mechanism

• PoE Output Budget

Up to 10 W on the designated downlink LAN port when the AP is supplied by an 802.3at PoE+ source

• Max Power Consumption

< 15 W (excluding external PoE Out load)

• MIMO / Spatial Streams

4 Spatial Streams across a dual-radio matrix (2×2 @ 2.4 GHz, 2×2 @ 5 GHz)

• Advanced Wi-Fi 7 Features

4096-QAM (4K-QAM) modulation for 20% denser transmission, Multi-Link Operation (MLO) for simultaneous dual-band data aggregation, and Multi-RU (Resource Unit) for optimized high-density efficiency.
