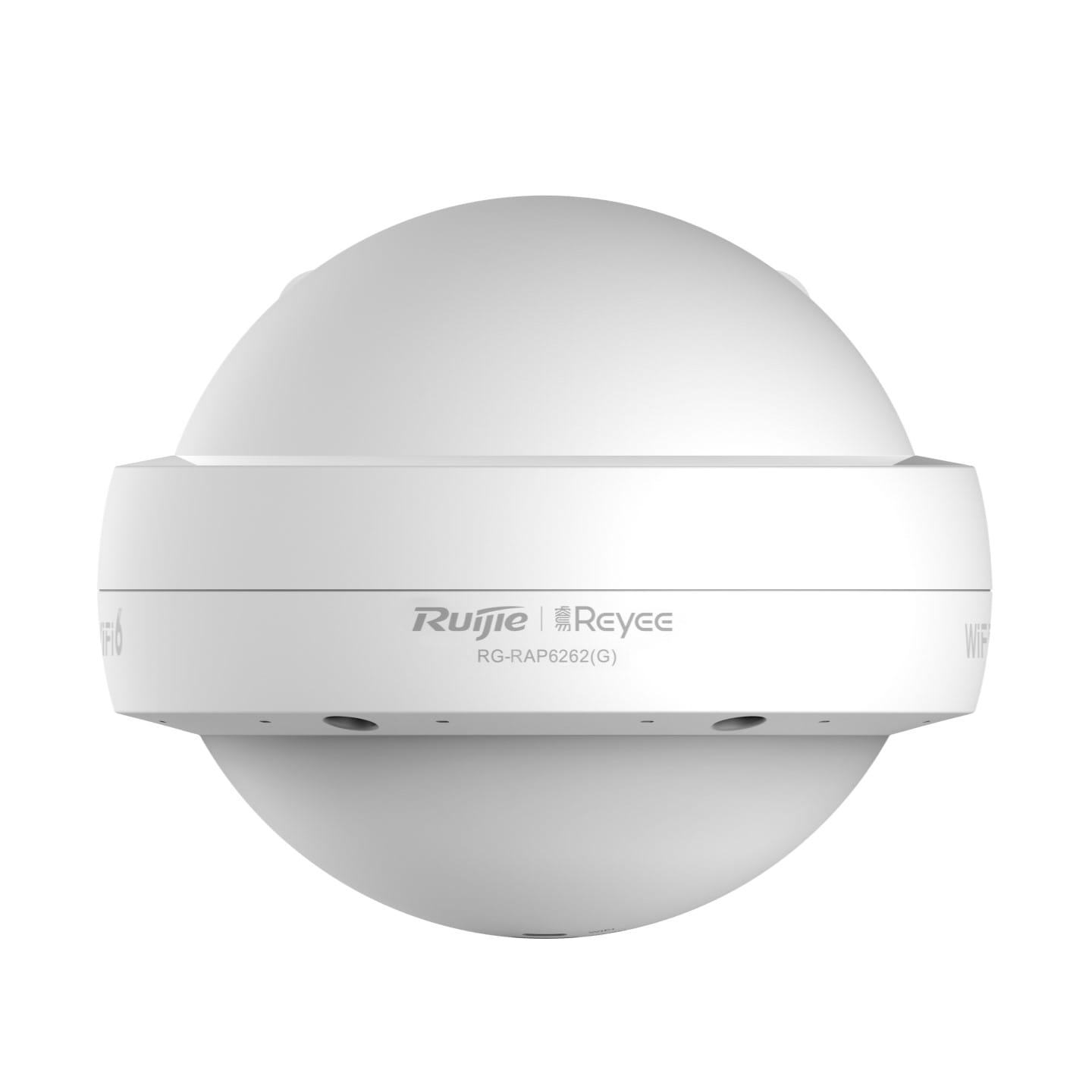

Ruijie Reyee RG-RAP6262(G)

Specifications

• 5 GHz

Up to 1,201 Mbps (2×2 MU-MIMO)

• 2.4 GHz

Up to 574 Mbps (2×2 MU-MIMO)

• Antennas

4 built-in high-gain omnidirectional antennas

• Mounting

Uses a rack-separated bracket design that supports vertical pole-mounting, horizontal pole-mounting, and wall-mounting.

• Security

WPA-PSK, WPA2-PSK, WPA3-SAE, and custom captive portal authentication for hotspot deployments.

• Interfaces

2 × 10/100/1000BASE-T Gigabit Ethernet ports (Note: Unlike the square RAP6260(G), this version does not feature an integrated SFP port).

• Management

Full cloud management ecosystem via the free Ruijie Cloud Platform / App, standalone local Web UI, or controller setups.

• Power Supply

802.3at PoE+ (preferred) or a local 12V DC / 1.5A power adapter.

• Coverage Range

Features an estimated coverage radius of up to 100 meters on 2.4 GHz and up to 300 meters on 5 GHz in open environments.

• Client Capacity

Supports a theoretical maximum of up to 512 clients, with a recommended capacity of 100 concurrent clients for smooth performance.

• Standard & Speed

Wi-Fi 6 (802.11ax), dual-band, combined wireless data rate up to 1,775 Mbps

• Surge Protection

Up to 6 kV lightning protection.

• Weather Resistance

IP68 rating, providing full seal protection against water jets, heavy rain, dust, moisture, and wind erosion.

• Mesh & Optimization

Seamlessly works with Reyee Mesh technology for wireless repetition and range expansion without dropping cables. Supports automatic wireless intelligent optimization and Layer 3 roaming.

• Wireless Data Rates

• Max Power Consumption

≤ 18 W.

• Operating Temperature

-30°C to +65°C (-22°F to +149°F).
