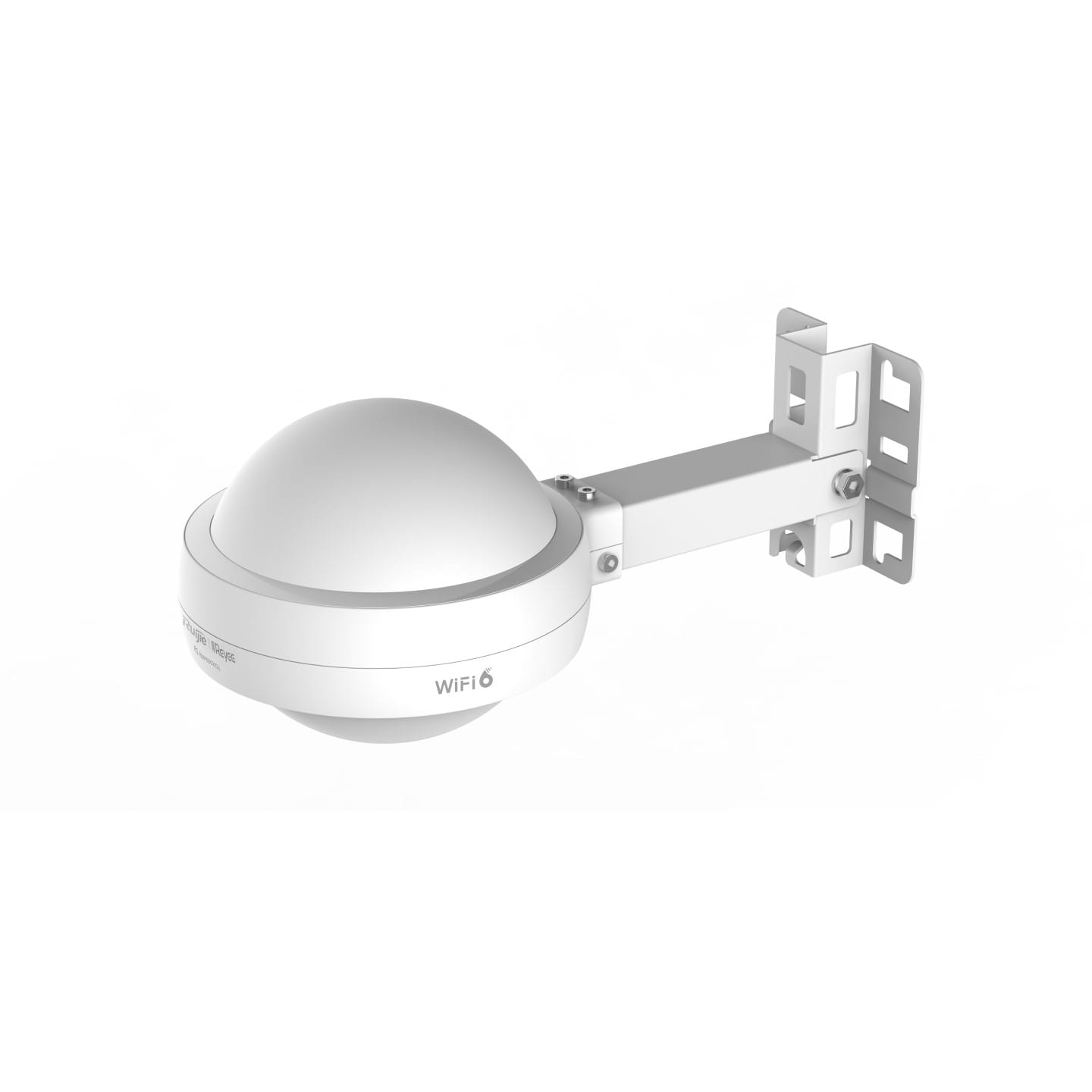

Ruijie Reyee RG-RAP6262
Specifications
- • Note
- The (G) model does not feature an SFP port.
- • 5 GHz Band
- 1,201 Mbps
- • 2.4 GHz Band
- 573 Mbps
- • Power Methods
- Standard 802.3at PoE+ injection or local 12V DC power input
- • Antenna Design
- Internal omni-directional antennas built inside a unique "UFO" spherical enclosure
- • Weather Rating
- Industrial IP68 water and dust resistance
- • Wi-Fi Standard
- Wi-Fi 6 (802.11ax), backwards compatible with 802.11a/b/g/n/ac
- • Concurrent Users
- Supports up to 512 client connections total per AP
- • Network Features
- Fast Layer 2 & Layer 3 roaming (802.11k/v/r) and wireless Reyee Mesh network scaling
- • Surge Protection
- Built-in 4kV lightning protection
- • Management System
- Free Ruijie Cloud ecosystem access via web portal or mobile app
- • MIMO Configuration
- 2x2 MU-MIMO on both frequency bands (Dual-band, 4 spatial streams total)
- • Maximum Power Draw
- ≤ 24W for the standard model; ≤ 18W for the (G) model
- • Operating Temperatures
- Robust performance from -30°C to +65°C (-22°F to 149°F)
- • RG-RAP6262(G) Port Layout
- • (G) Model Dimensions & Weight
- 222 mm x 200 mm x 166 mm; Weight: ≤ 1.2 kg
- • Standard RG-RAP6262 Port Layout
- • Maximum Wireless Speed ((G) Model)
- 1,775 Mbps total (AX1800)
- • Standard Model Dimensions & Weight
- 230 mm x 230 mm x 195 mm; Weight: ≤ 1.4 kg
- • Maximum Wireless Speed (Standard Model)
- 2,976 Mbps total (AX3000)
