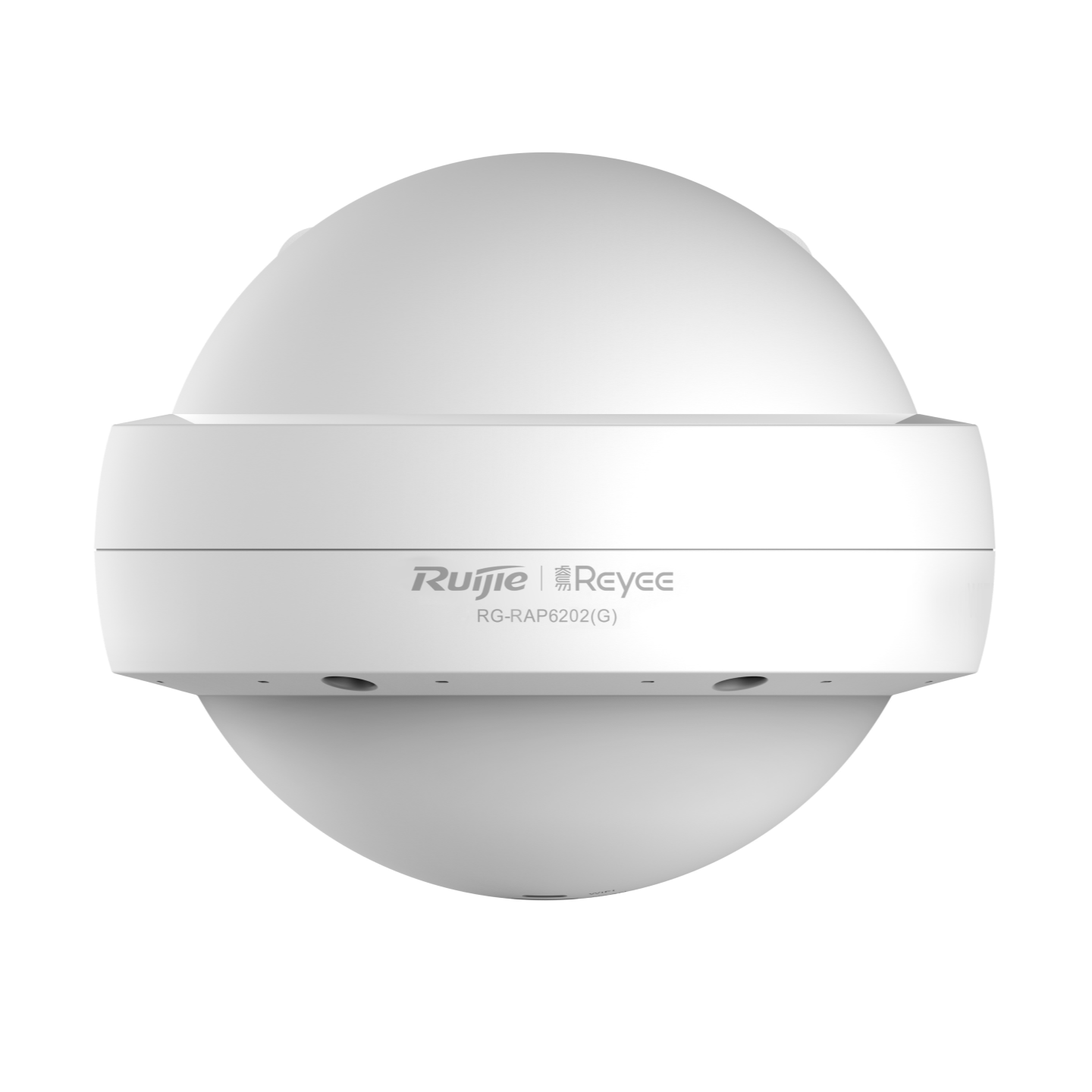

Ruijie Reyee RG-RAP6202(G)
Specifications
- • 5 GHz
- Up to 866 Mbps (2×2 MIMO)
- • Memory
- 16 MB Flash / 128 MB DDR3 RAM
- • Weight
- ≤ 1.0 kg (without packaging)
- • 2.4 GHz
- Up to 400 Mbps (2×2 MIMO)
- • Antennas
- 4 built-in omnidirectional antennas (2 × 2.4 GHz, 2 × 5 GHz)
- • Mounting
- Wall-mount, vertical pole, and horizontal pole mounting kits included
- • Security
- Supports WPA, WPA2 (AES), WPA3 encryption, and 802.1X authentication.
- • 5 GHz gain
- 4 dBi
- • Dimensions
- Ø200 mm × 166 mm (spherical device, excluding the mounting bracket)
- • Interfaces
- 2 × 10/100/1000BASE-T Gigabit Ethernet ports (1 port supports PoE In)
- • 2.4 GHz gain
- 3 dBi
- • Power Supply
- 802.3af/at PoE/PoE+ or a local 12V DC/1.5A power adapter (Note: DC power takes priority if both are connected simultaneously)
- • Client Capacity
- Supports up to 110 total concurrent clients (64 max on 2.4 GHz, 110 max on 5 GHz); 80 recommended for optimal performance.
- • Network Features
- Supports up to 8 SSIDs, Layer 2 user isolation, MU-MIMO, and Beamforming.
- • Standard & Speed
- Wi-Fi 5 (802.11ac Wave 2), dual-band, combined wireless speed up to 1,267 Mbps
- • Surge Protection
- 4 kV lightning protection
- • Mesh & Management
- Supports Reyee Mesh Technology for seamless roaming between multiple APs. Offers free configuration and remote monitoring via the Ruijie Cloud App Platform, web UI, or the local eWeb interface.
- • Weather Resistance
- IP68 waterproof and dustproof rating (fully sealed against heavy rain, dust, moisture, and wind erosion)
- • Wireless Data Rates
- • Max Power Consumption
- 12.95 W
- • Operating Temperature
- -30°C to +65°C (-22°F to +149°F)
