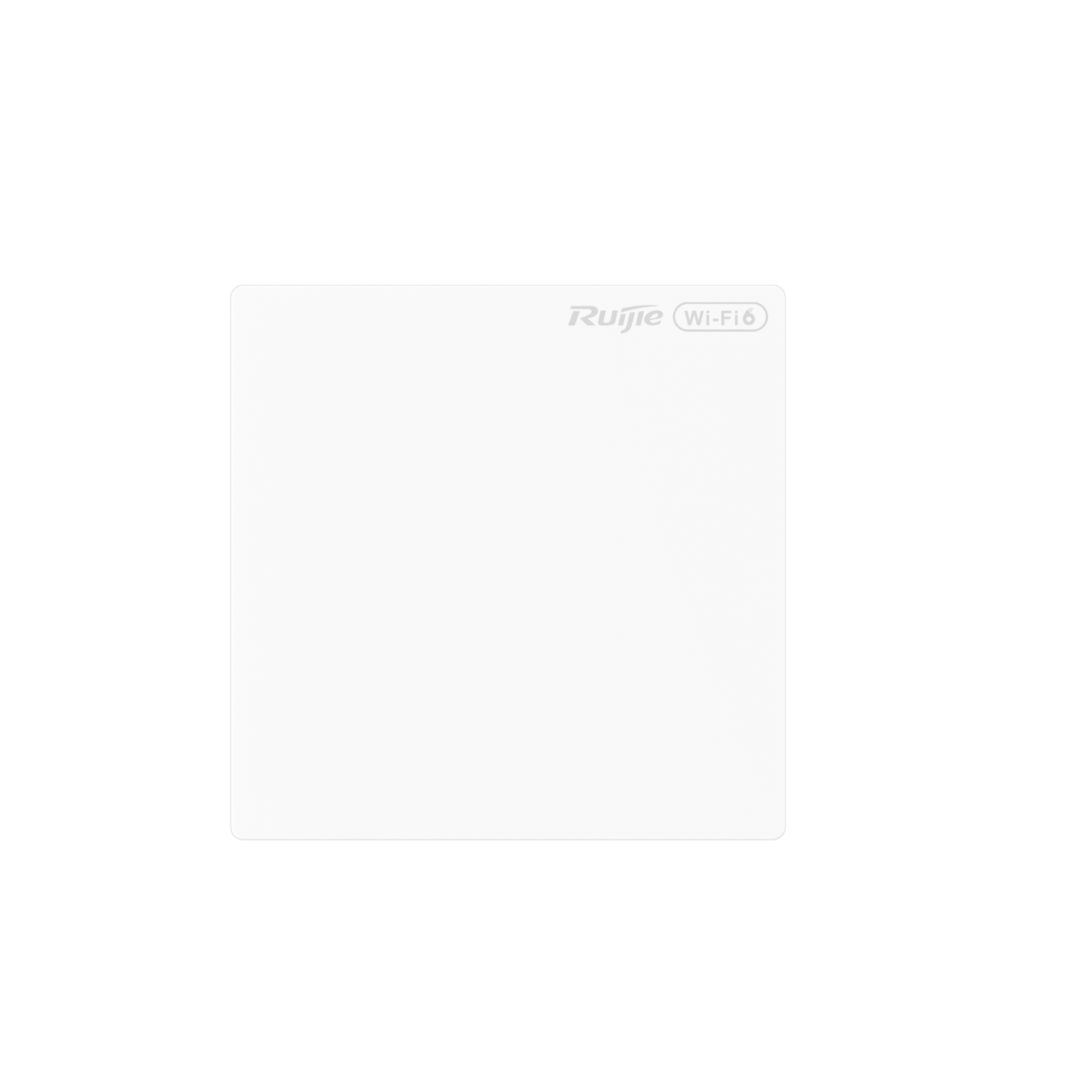

Ruijie Reyee RG-RAP62-Wall-Lite

Specifications

• Weight

≤ 0.25 kg (without packaging or mounting bracket)

• IP Rating

IP41 (Indoor environment ready with ±2 kV Ethernet port surge protection)

• 5 GHz Band

Up to 2,401 Mbps (supports 160MHz channel bandwidth)

• Dimensions

86 mm × 38 mm × 86 mm

• PoE Output

Not Supported (This feature is exclusive to the standard non-lite model)

• 2.4 GHz Band

Up to 573 Mbps

• Antenna Type

Built-in omnidirectional antennas (Gain: 3.07 dBi on 2.4 GHz, 4.42 dBi on 5 GHz)

• Network Ports

• Power Options

• Wi-Fi Standard

Wi-Fi 6 (IEEE 802.11ax) and backward compatible with Wi-Fi 5 (802.11ac) and Wi-Fi 4 (802.11a/b/g/n)

• Client Capacity

Accommodates a maximum of 256 concurrent clients.

• Exposed Profile

Only 24.8 mm (0.98 in.) protrudes from the wall surface once mounted.

• PoE / PoE+ Input

Powered strictly via the rear uplink connection (Compliant with IEEE 802.3af/at)

• Advanced Features

Centralized configuration via the Ruijie Cloud Platform, AI Roaming, AI Network Optimization (WIO), MU-MIMO, and OFDMA technologies.

• Max Wireless Rate

Up to 2,974 Mbps (2.97 Gbps / AX3000 Class)

• Max Power Consumption

11.2 W

• MIMO / Spatial Streams

4 Spatial Streams across a dual-radio matrix (2×2 @ 2.4 GHz, 2×2 @ 5 GHz)

• Junction Box Compatibility

Easily mounts to Chinese/US standard 86 mm and European standard round/square junction boxes.
