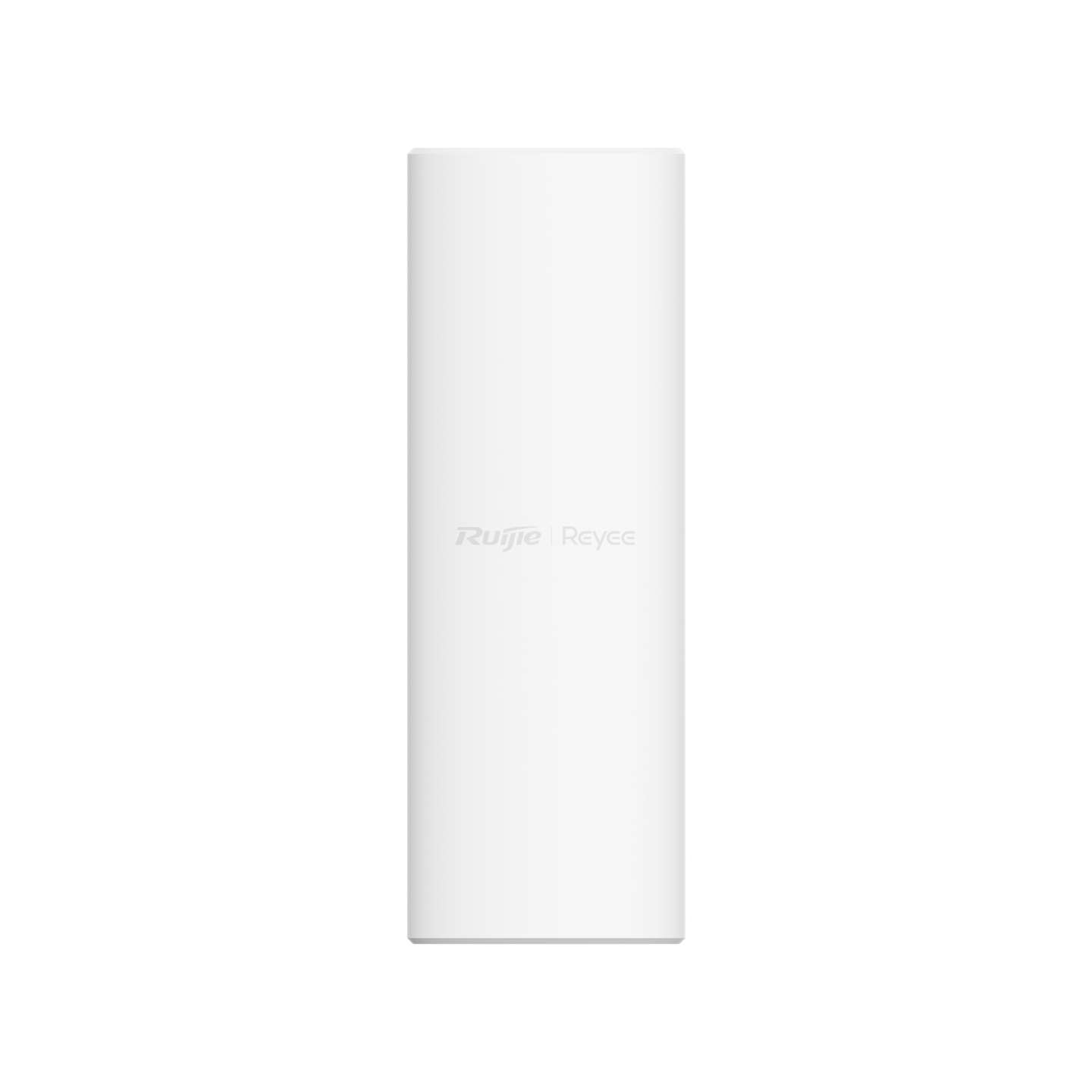

Ruijie Reyee RG-RAP62-OD
Specifications
- • 5 GHz
- Up to 2,401 Mbps (2×2 MIMO)
- • Color
- White
- • Weight
- ≤ 0.4 kg
- • 2.4 GHz
- Up to 573 Mbps (2×2 MIMO)
- • Roaming
- Layer 2 and Layer 3 roaming, 802.11k/v/r, and AI Roaming
- • Antennas
- Built-in omnidirectional antennas
- • Mounting
- Wall-mount and pole-mount kits included/supported
- • Security
- WPA-PSK, WP
- • Interface
- 1× Gigabit Ethernet (10/100/1000BASE-T) port with PoE support
- • 5 GHz gain
- 6.5 dBi
- • Dimensions
- 200 mm × 70 mm × 35 mm (or 70×35×200 mm)
- • 2.4 GHz gain
- 4.0 dBi
- • Power Supply
- 802.3af/at PoE or 48V passive PoE
- • SSID Support
- Up to 8 SSIDs
- • Wireless Rates
- • Standard & Speed
- Wi-Fi 6 (802.11ax), dual-band, combined wireless rate up to 2,974 Mbps (AX3000)
- • Surge Protection
- 4 kV lightning protection and 15 kV ESD protection
- • Mesh & Management
- Reyee Mesh support, self-organizing network (SON) integration, local/web GUI management, and remote management via the Ruijie Cloud App
- • Weather Resistance
- IP65 dust-proof and water-jet-resistant rating
- • Max Power Consumption
- ≤ 16 W
- • Operating Temperature
- -30°C to +65°C (-22°F to +149°F)
- • Recommended / Max Clients
- Up to 110 recommended concurrent clients (supports up to 64 on 2.4 GHz and 512 on 5 GHz; or 16 [2.4G] + 94 [5G] = 110 on BW160)
