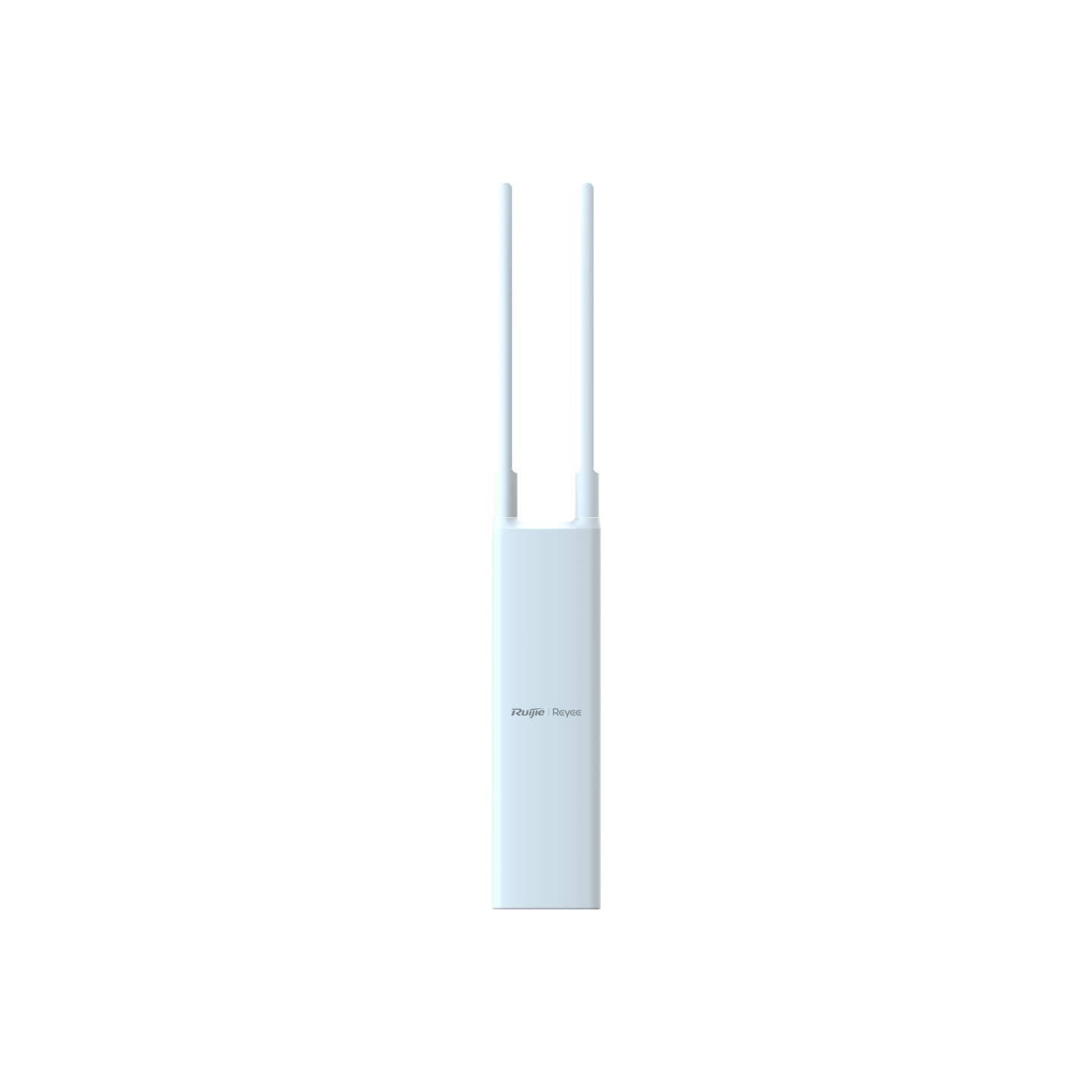

Ruijie Reyee RG-RAP52-OD

Specifications

• Weight

≤ 0.4 kg.

• Antennas

Equipped with 2 detachable external omnidirectional antennas (2.4 GHz at 3 dBi; 5 GHz at 4 dBi). Because they use standard detachable SMA connectors, they can be swapped out for directional antennas if a specific project layout requires it.

• Mounting

Supports both flat wall bracket mounting and vertical pole/downpipe installation via included band clamps.

• IP Rating

IP65-rated weatherproof enclosure to prevent ingress from heavy rain and tiny dust particles.

• 5 GHz Band

Up to 867 Mbps.

• Dimensions

220 mm × 50 mm × 35.7 mm (excluding antennas).

• 2.4 GHz Band

Up to 400 Mbps.

• Power System

Highly versatile power options supporting both IEEE 802.3af standard PoE and 24V Passive PoE.

• Wi-Fi Standard

Wi-Fi 5 (IEEE 802.11ac Wave 2) with 2×2 MIMO configuration on both bands.

• Client Capacity

Supports up to 110 concurrent clients (Recommended baseline: up to 80 users).

• Wired Interface

1 × 10/100/1000BASE-T Gigabit Ethernet Uplink Port.

• Surge Protection

Built-in 4kV lightning protection and 15kV ESD protection.

• Physical Footprint

Slim, elongated form factor ideal for clean mounting.

• Wireless Data Rate

Combined aggregate speeds of up to 1267 Mbps.

• Note on compatibility

It is fully compatible with Ruijie PoE switches and injectors like the RG-POE-AF15 and RG-POE-AT30, but it does not support power delivery from older RG-E-120 or RG-E-130 injectors.

• Operating Temperature

Engineered for extreme climates, functioning between -30°C and +65°C (-22°F to 149°F).

• Maximum Power Consumption

≤ 14W.

• Network & Software Features

Out-of-the-box support for Reyee Self-Organizing Network (SON). It coordinates seamless wireless mesh links to bridge your indoor and outdoor signals, features AI Roaming for fast user handovers (<30ms), and manages standalone captive landing pages for guest networks, all handled through the lifetime-free Ruijie Cloud Mobile App.

• Outdoor Ruggedness & Protections
