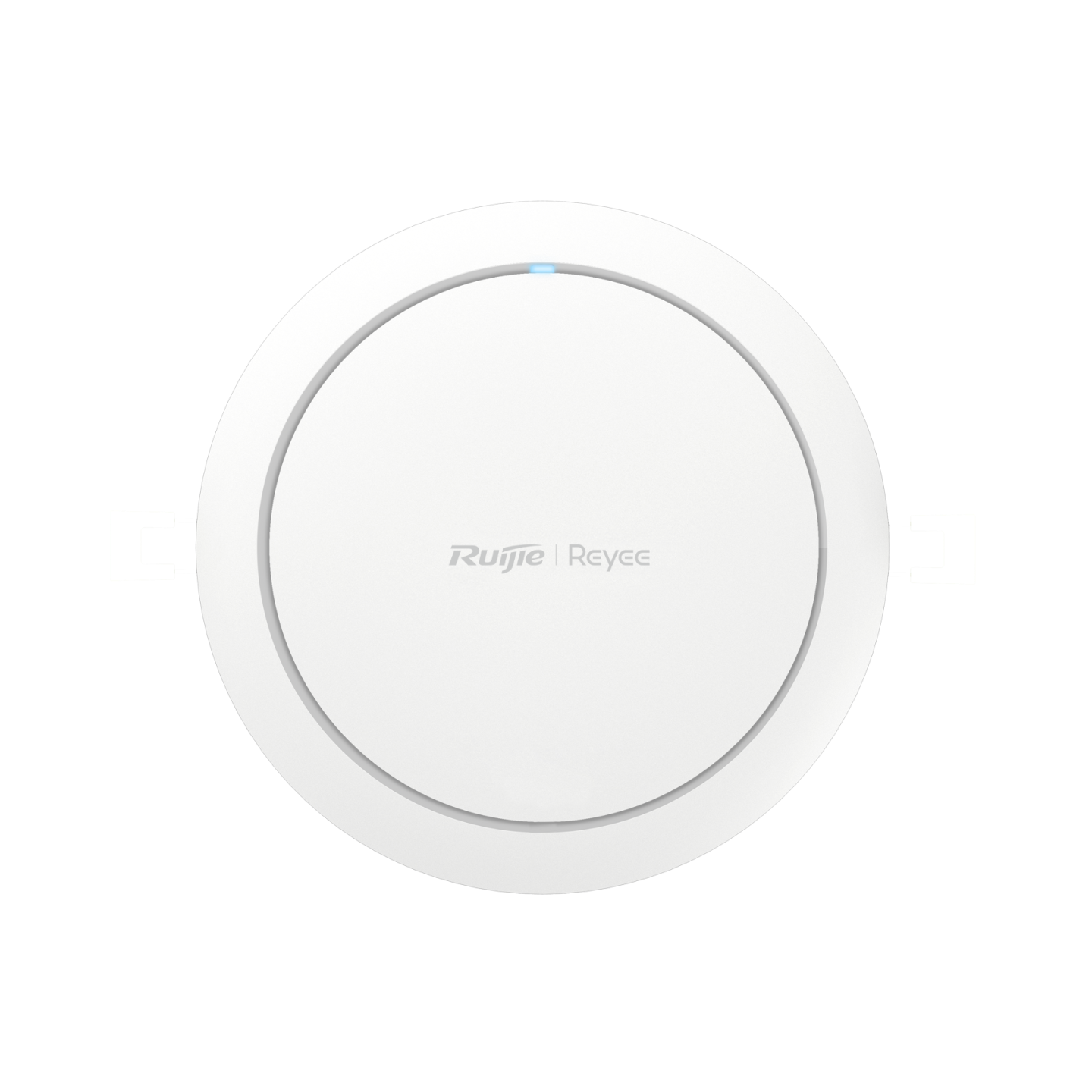

Ruijie Reyee RG-RAP2266

Specifications

• Weight

≤ 0.5 kg

• Antennas

Built-in omnidirectional antennas (2 × 2.4 GHz at 3.53 dBi gain; 3 × 5 GHz at 5.15 dBi gain).

• 5 GHz Band

Up to 2401 Mbps (Supports up to 160 MHz channel width).

• Dimensions

Ø 220 mm × 52.6 mm

• Fixed Ports

1 × 10/100/1000BASE-T Gigabit Ethernet uplink port, 1 × DC power port, and 1 × Reset button.

• 2.4 GHz Band

Up to 573 Mbps.

• Environmental

IP41 protection rating; operates between 0°C and 40°C.

• Power Options

Powered via IEEE 802.3at PoE/PoE+ or local 12V/2A DC power supply. Maximum power consumption is ≤18W.

• Wi-Fi Standard

Wi-Fi 6 (802.11ax) with support for dual-stream MU-MIMO and OFDMA.

• Client Capacity

Supports a maximum of 512 concurrent clients (Recommended: up to 110 clients).

• Wireless Data Rate

Combined speeds up to 2974 Mbps.

• Physical Properties

Features an updated round "circular aesthetics" layout for modern interior integration.

• Network & Management

Offers seamless Layer 2 / Layer 3 roaming (802.11k/v/r), Reyee Mesh integration, AR Roaming testing via the app, captive portal authentication, and free, centralized deployment through the Ruijie Cloud Mobile App.
