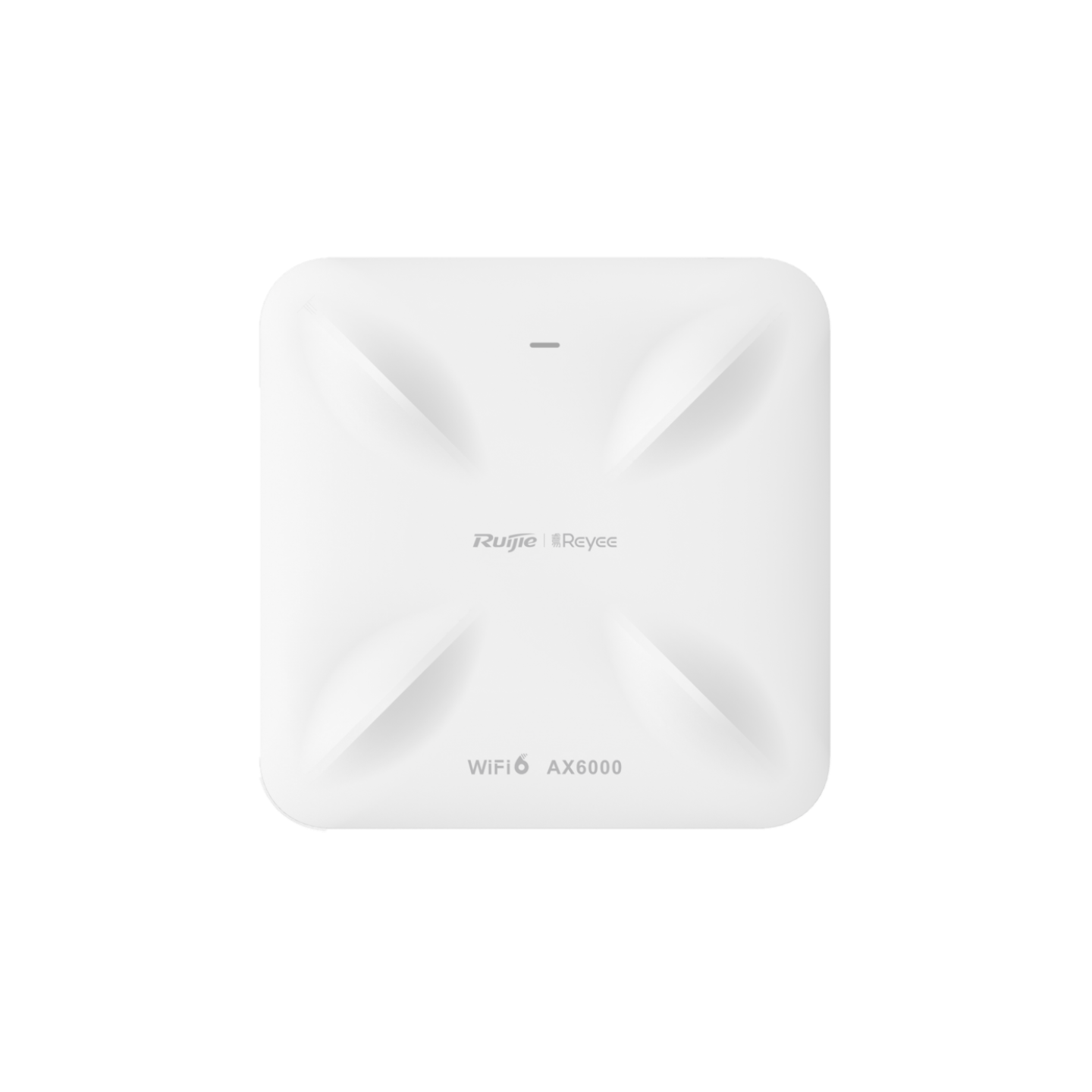

Ruijie Reyee RG-RAP2260(H)

Specifications

• Weight

≤ 1.72 kg (Shipping weight) / Mas malaki ang anyo nito para sa heat dissipation

• Tandaan

Kung gagamit ng standard PoE+ (802.3at), magiging limitado ang radio transmission sa 2T2R. Kailangan ng PoE++ (802.3bt) para sa buong 4x4 performance.

• 5 GHz Band

4,804 Mbps (suportado ang 160MHz channel bandwidth)

• Dimensions

230 mm × 230 mm × 45 mm

• 2.4 GHz Band

1,148 Mbps

• Antenna Gain

4 × built-in omnidirectional antennas sa 2.4 GHz (3 dBi) at 4 × sa 5 GHz (4 dBi)

• Network Ports

2 × 2.5 Gbps (Multi-Gigabit) Base-T ports (LAN1 port ay PoE-capable)

• Power Options

• Coverage Range

Hanggang 190 m² sa ideal na kapaligiran

• Wi-Fi Standard

Wi-Fi 6 (IEEE 802.11ax) at backwards compatible sa 802.11a/b/g/n/ac

• Client Capacity

Kayang mag-accommodate ng hanggang 512 sabay-sabay na devices (Recommended: 130 active clients para sa mabibigat na network load).

• Spatial Streams

8 Spatial Streams

• Max Wireless Rate

5,952 Mbps (5.95 Gbps / AX6000 Class)

• MIMO Configuration

4×4 @ 2.4 GHz at 4×4 @ 5 GHz

• Max Power Consumption

< 40 W

• Port Surge Protection

4 kV

• Maximum Transmit Power

32 dBm (Pinakamalakas sa serye para sa mas malawak na sakop at wall penetration)
