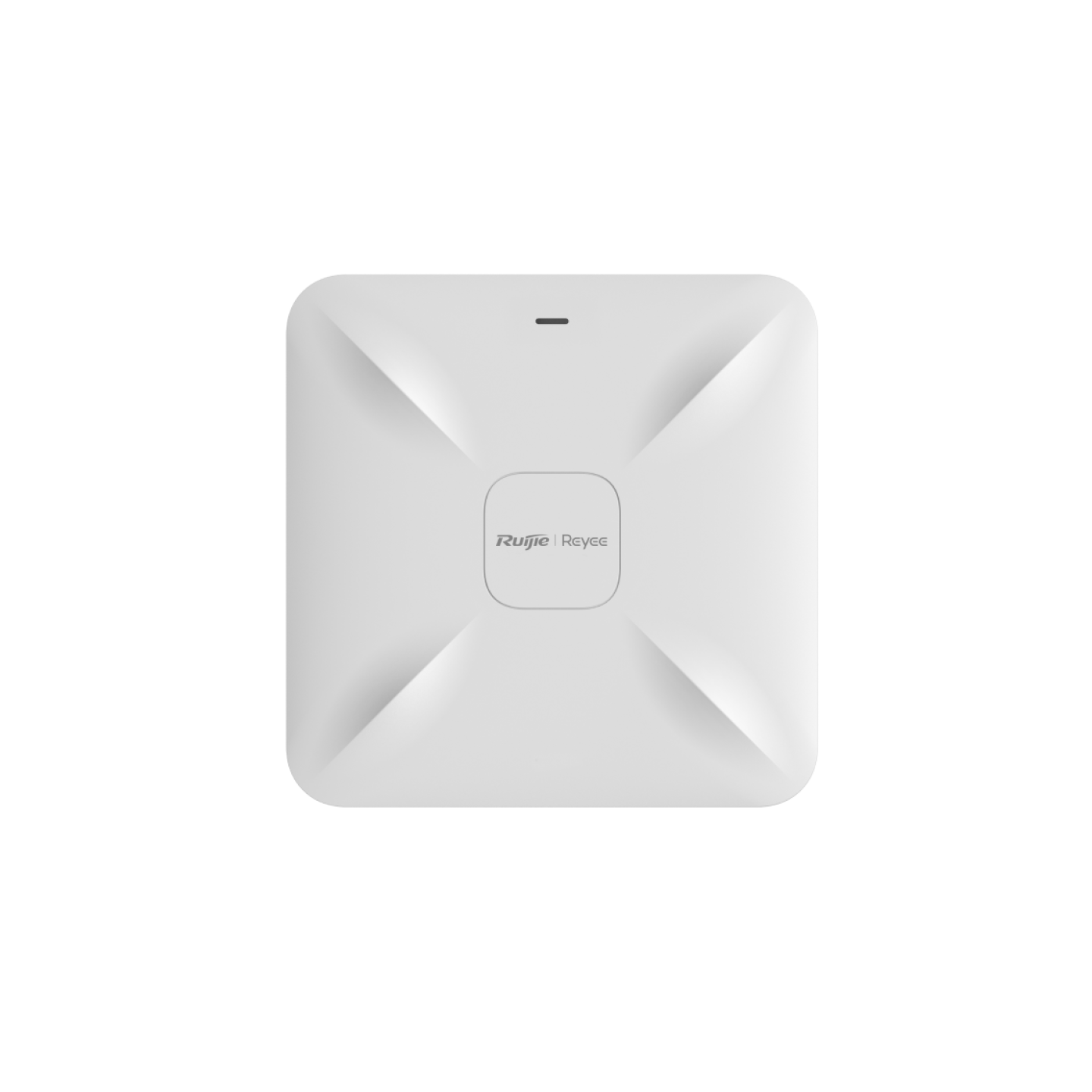

Ruijie Reyee RG-RAP2260(G)

Features

• Technical Specifications
• • Wireless Standard: Wi-Fi 6 (802.11ax) featuring 2×2 MU-MIMO dual-stream technology.
• • Maximum Data Rate: Up to 1,775 Mbps aggregate (574 Mbps on the 2.4 GHz band and 1,201 Mbps on the 5 GHz band).
• • Ethernet Ports: 2 × 10/100/1000 Base-T Gigabit Ethernet ports.
• • LAN1/PoE serves as the main uplink.
• • LAN2 can act as a bridge port to secondary wired devices (like an IP camera, VoIP phone, or smart device).
• • Client Capacity: Maximum capability of 512 associated users, with a manufacturer-recommended limit of 100 clients for optimal, stutter-free network performance.
• • Coverage Area: Covers up to 120 square meters with its internal omnidirectional antennas (3 dBi gain).
• • Power Supply: Supports standard 802.3af/at PoE or local 12V/1.5A DC power. Max power draw is 15.5W.
• Key Performance Benefits
• • Wi-Fi 6 Efficiency: Uses OFDMA and MU-MIMO technology to handle multiple high-bandwidth devices simultaneously without the bottlenecking seen on older Wi-Fi 5 models.
• • Seamless Roaming: Supports Layer 2 and Layer 3 seamless roaming, preventing network dropouts as users migrate between different zones.
• • Reyee Mesh: Integrates seamlessly with other Reyee routers and APs to expand wireless network reach without requiring a dedicated hardware controller.
• • Free Cloud Management: Fully monitored and managed through the Ruijie Cloud Platform, which lets you set up an entire network topology in under 3 minutes with no ongoing license fees.
