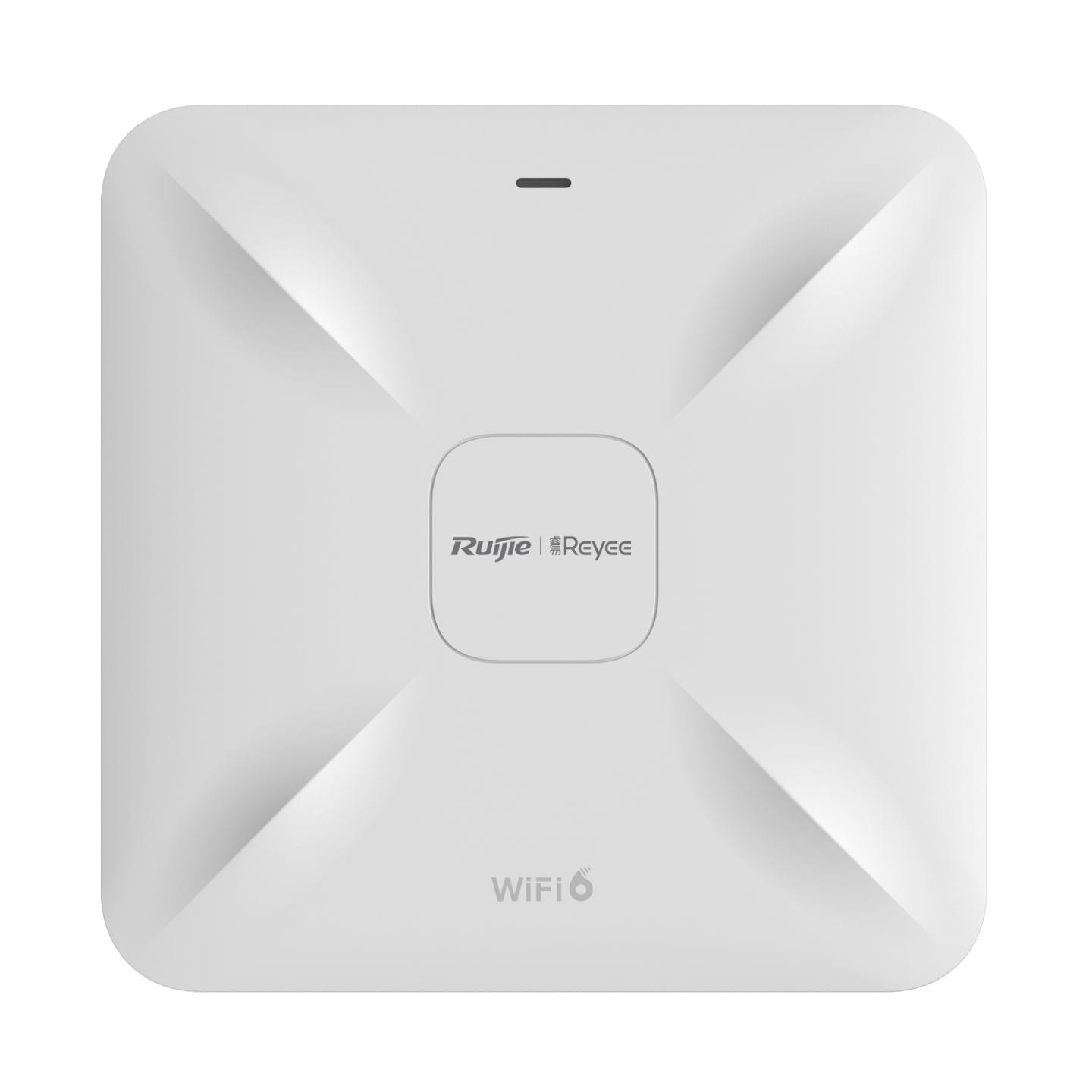

Ruijie Reyee RG-RAP2260 series

Specifications

• Weight

≤ 0.65 kg (without mounting kit)

• IP Rating

IP41 (protected against condensation/vertical water drops)

• 5 GHz Band

2,401 Mbps (supports 160MHz channel bandwidth)

• Dimensions

194 mm × 194 mm × 45.1 mm

• 2.4 GHz Band

573 Mbps

• Antenna Type

Built-in Omni-directional Antennas

• Network Ports

• Power Options

• Wi-Fi Standard

Wi-Fi 6 (IEEE 802.11ax) and backward compatible with 802.11a/b/g/n/ac

• DC Power Supply

12 V DC ±10%

• Spatial Streams

4 Spatial Streams

• Max Wireless Rate

2,974 Mbps (2.97 Gbps)

• MIMO Configuration

2×2 @ 2.4 GHz, 2×2 @ 5 GHz

• Max Client Capacity

Can accommodate up to 512 concurrent devices (Recommended: 100-130 active clients)

• Max Power Consumption

18 W

• PoE (Power over Ethernet)

Compliant with IEEE 802.3at/af standards
