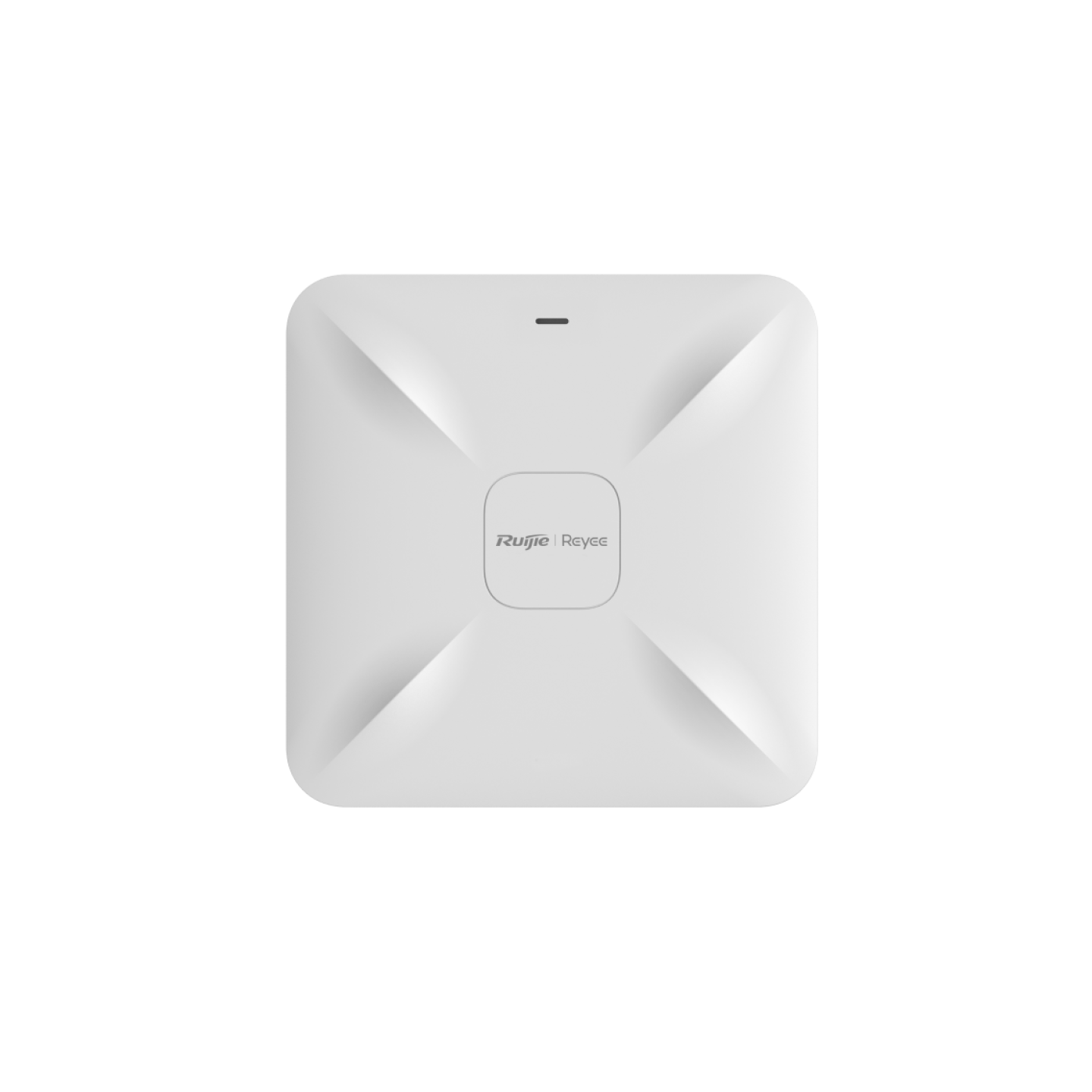

Ruijie Reyee RG-RAP2200(E)

Features

• Technical Specifications
• • Wireless Performance: Dual-band, dual-stream (2×2 MU-MIMO).
• • Maximum Data Rate: Up to 1,267 Mbps total (400 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band).
• • Ethernet Ports: 2 × 10/100/1000 Base-T Gigabit ports (LAN1 supports PoE input).
• • Client Capacity: Supports a maximum of 110 concurrent clients (with a manufacturer-recommended limit of 40 users for optimal performance).
• • Antenna Type: Built-in omnidirectional internal antennas (2 dBi gain for both bands).
• • Power Supply: Can be powered via 802.3af/at PoE or a local 12V/1.5A DC power adapter (maximum power consumption is less than 12.95W).
• • Physical Dimensions: 194 mm × 194 mm × 35 mm.
• Core Enterprise Features
• • Seamless Roaming: Supports Layer 2 and Layer 3 seamless roaming, allowing users to transition between access points across a building without dropping active connections or video calls.
• • Reyee Mesh Integration: Built-in support for Reyee Mesh technology, allowing you to easily add more access points wirelessly or via Ethernet backhaul.
• • Cloud Management: Integrates seamlessly with the Ruijie Cloud platform and mobile app, offering free lifetime cloud management, remote troubleshooting, captive portal authentication, and a fast "3-minute" network setup.
