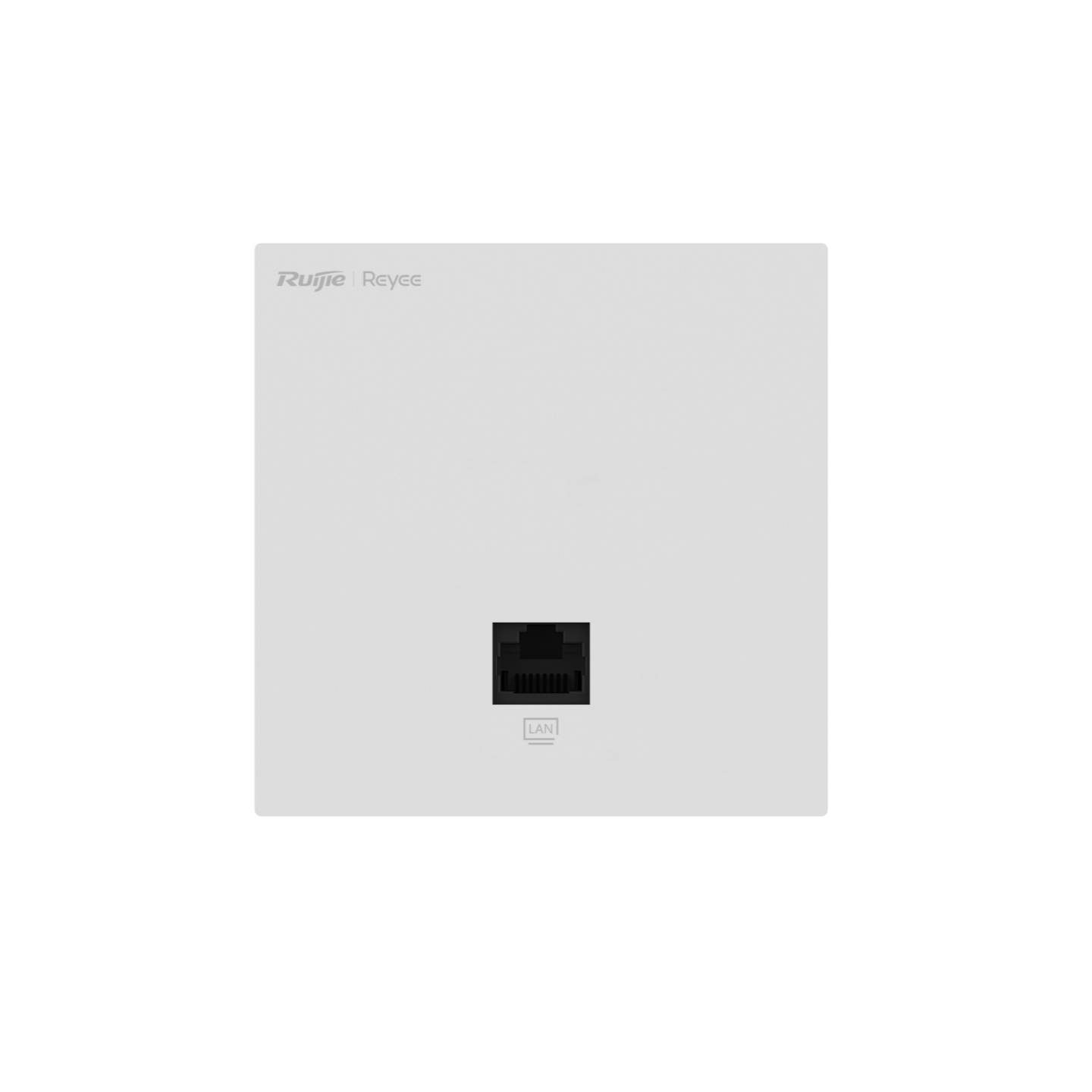

Ruijie Reyee RG-RAP1201

Specifications

• Weight

≤ 0.16 kg (extremely lightweight housing).

• 5 GHz Band

Up to 866 Mbps.

• Dimensions

86 mm × 86 mm × 42.4 mm.

• 2.4 GHz Band

Up to 400 Mbps.

• Power System

Powered exclusively via IEEE 802.3af/at standard PoE. It features a highly efficient energy blueprint with a maximum power consumption of ≤ 9W.

• Wi-Fi Standard

Wi-Fi 5 (IEEE 802.11ac Wave 2) with 2x2 MU-MIMO and 4 spatial streams.

• Client Capacity

Supports a maximum of 110 concurrent clients (Recommended client density is 40 users).

• PoE Passthrough

No. Unlike the 5-port (P) variant, the RG-RAP1201 does not support PoE forwarding out of its LAN port.

• Box Compatibility

Worldwide architecture matching standard 86, 110, and 120 internal wall boxes.

• Wireless Data Rate

Combined aggregate speed of up to 1267 Mbps.

• Physical Properties

Designed to sit completely flush over wall sockets.

• Software & Ecosystem

Features Self-Organizing Network (SON) deployment inside the mobile app. It supports up to 8 distinct SSIDs, Layer 2/3 roaming transitions, cloud-managed routing configuration (Static IP, DHCP, PPPoE), and built-in captive network portals.

• Wired Interfaces (2 Full Gigabit Ports)
